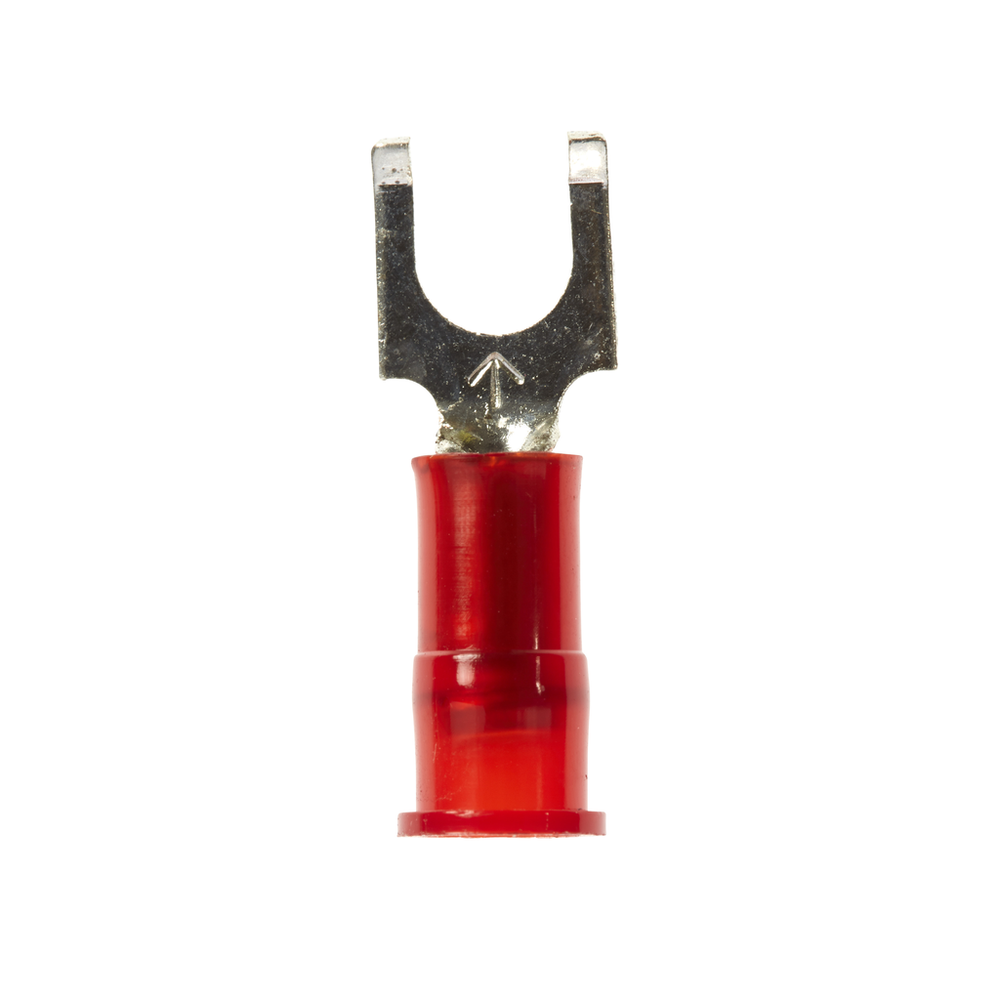

3M™ Scotchlok™ Flanged Block Fork Nylon Insulated, 100/bottle, MNG18-10FFBX, suitable for use in a terminal block, 500/Case - 7100165303

Sold As: 500-Pack
SKU: 7100165303
MPN: 7100165303
Made to Order: For a lead time estimate, please send your request to [email protected]
UPC: 10051128589547
3M ID: 80611466006
5 Digit UPC: 58954
$561.87 ($1.12 / Count)
Hurry up! Current stock:

Product Description

3M™ Flanged Block Fork Terminal ensures an ideal fit while offering reliable and safe performance. The terminal has a nylon-insulated, butted-seam barrel and withstands temperatures of -40 to 221 degrees F (-40 to 105 degrees C). Electrolytic copper construction offers good conductivity and a tin-plated finish resists corrosion.

Features

  • Funnel-designed, seamless brass sleeve offers easy insertion of wires
  • Electrolytic copper construction offers good conductivity
  • 600V-rated for building wire and 1000V for signs, fixtures or luminaires
  • Withstands a temperature range of -40 to 221 degrees F (-40 to 105 degrees C)
  • Nylon-insulated, butted-seam barrel ensures a secure fit and offers reliable performance
  • Suitable for use in a terminal block

Downloads

Specifications

Country of OriginUnited States
Maximum Conductor Size (Metric).0823 mm²
Terminal StyleFlanged Block
UL File NumberE23438
Fork TypeFlanged Block
Stud Size#10
Units per Case500.0
Overall Length (Imperial) UOMin
Overall Width (Imperial) UOMin
Stud Diameter (Metric) UOMmm
Clearance (C)0.25 Inch
Minimum Conductor Size (Imperial)22 AWG
Terminal TypeFork
Maximum Insulation Outer Diameter (Imperial)0.145
Overall Width (Imperial)0.3
Stud Diameter (Imperial)0.19
Maximum Conductor Size (Imperial)18 AWG
Insulation MaterialNylon with Insulation Grip
Packaging100 per bottle
Stud Diameter (Imperial) UOMin
Minimum Conductor Size (Metric)0.326 mm²
Barrel StyleButted
Overall Length (Imperial)0.84
RoHS EU CommentsRoHS 2011/65/EU compliant without exemption
Dimension E0.69 Inch
Barrel Inside Diameter0.070 Inch
Maximum Insulation Outer Diameter (Imperial) UOMin
Stud Diameter (Metric)4.826
