3M Products & Supplies

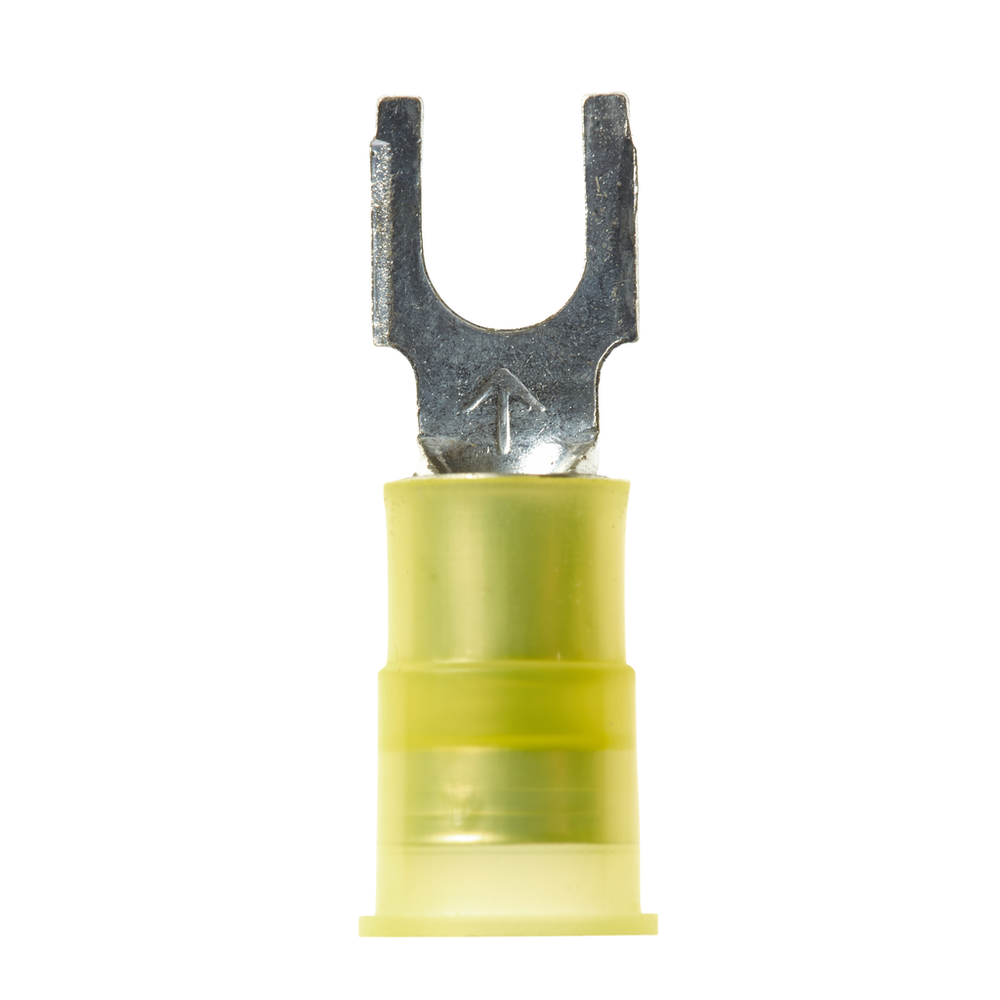

3M™ Scotchlok™ Block Fork Nylon Insulated, 100/bottle, MNG18-8FBX, suitable for use in a terminal block, 500/Case - 7000133279

Sold As: 100-Pack
SKU: 7000133279
MPN: 7000133279
Stock Item: Stock items typically ship within 2-3 business days
UPC: 00051128586532
3M ID: 80611457989
5 Digit UPC: 58653
$112.37 ($1.12 / Count)
Hurry up! Current stock:

Product Description

Downloads

Specifications

Country of OriginUnited States
Overall Length (Imperial)0.84
Stud Size#8
Maximum Conductor Size (Metric).0823 mm²
Minimum Conductor Size (Imperial)18 AWG
Insulation MaterialNylon with Insulation Grip
Maximum Recommended Voltage Rating UOMV
Maximum Insulation Outer Diameter (Imperial) UOMin
Clearance (C)0.25 Inch
Overall Length (Imperial) UOMin
Overall Length (Metric)21.336
Overall Width (Imperial)0.3
Barrel Inside Diameter0.070 Inch
UL File NumberE23438
Maximum Insulation Outside Diameter0.145 in
Overall Width (Metric)7.62
Maximum Insulation Outer Diameter (Metric)3.7
Overall Width (Metric) UOMmm
Product ColorRed
Minimum Conductor Size (Metric)0.823 mm²
Dimension E0.69 Inch
Maximum Operating Temperature (Celsius) UOMDegree
Maximum Operating Temperature (Celsius)105.0
Fork TypeBlock
Maximum Conductor Size (Imperial)18 AWG
Maximum Operating Temperature (Fahrenheit)221.0
Maximum Operating Temperature (Fahrenheit) UOMDegree
Overall Length (Metric) UOMmm
Terminal StyleBlock
Units per Case500.0
Maximum Insulation Outer Diameter (Imperial)0.145
Maximum Recommended Voltage Rating600.0
Packaging100 per bottle
Terminal TypeFork
Barrel StyleButted
Maximum Insulation Outer Diameter (Metric) UOMmm
MaterialETP Copper
Overall Width (Imperial) UOMin
RoHS EU CommentsRoHS 2011/65/EU compliant without exemption
