3M Products & Supplies

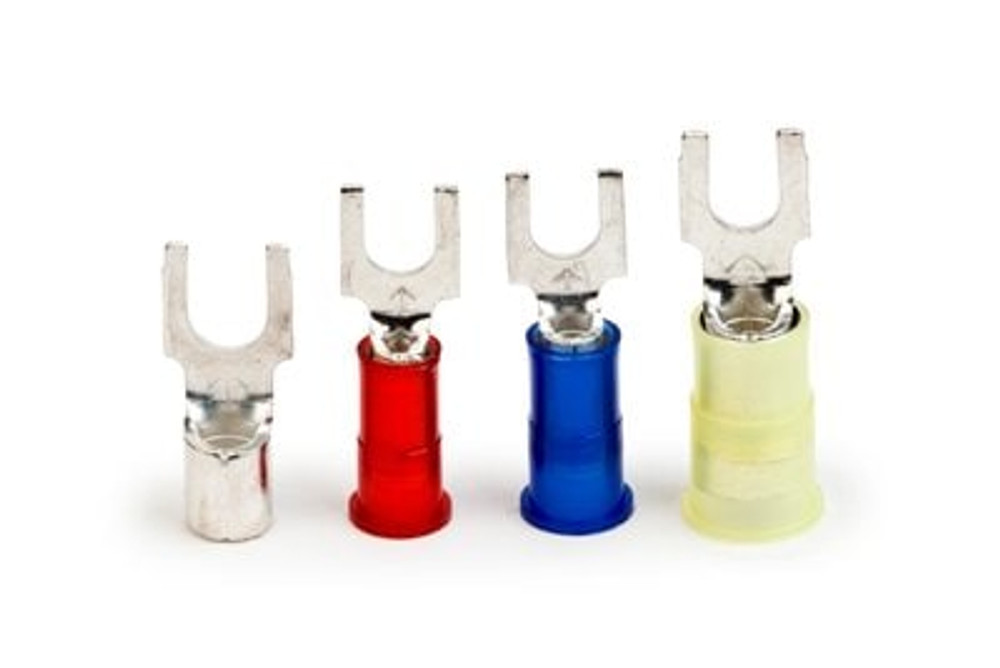

3M™ Scotchlok™ Block Fork Nylon Insulated, 50/bottle, MNG10-8FBX, suitable for use in a terminal block, 500/Case - 7000133300

Sold As: 50-Pack
SKU: 7000133300
MPN: 7000133300
Stock Item: Stock items typically ship within 2-3 business days
UPC: 00051128586907
3M ID: 80611458359
5 Digit UPC: 58690
$61.81 ($1.24 / Count)
Hurry up! Current stock:

Product Description

Downloads

Specifications

Country of OriginUnited States
Maximum Insulation Outer Diameter (Metric) UOMmm
Overall Width (Metric)8.128
Maximum Insulation Outer Diameter (Imperial) UOMin
Maximum Recommended Voltage Rating600.0
Terminal StyleBlock
Product ColorYellow
Stud Size#8
Maximum Conductor Size (Metric)5.26 mm²
Maximum Insulation Outer Diameter (Metric)3.7
Clearance (C)0.29 Inch
Overall Width (Imperial)0.32
Overall Length (Imperial)1.03
Packaging50 per bottle
Fork TypeBlock
Maximum Operating Temperature (Fahrenheit) UOMDegree
Barrel Inside Diameter0.135 Inch
RoHS EU CommentsRoHS 2011/65/EU compliant without exemption
Insulation MaterialNylon with Insulation Grip
Maximum Insulation Outside Diameter0.145 in
Maximum Recommended Voltage Rating UOMV
Maximum Conductor Size (Imperial)10 AWG
Maximum Operating Temperature (Fahrenheit)221.0
Overall Length (Metric) UOMmm
Overall Width (Imperial) UOMin
UL File NumberE23438
Maximum Operating Temperature (Celsius) UOMDegree
Overall Length (Metric)26.162
Minimum Conductor Size (Imperial)12 AWG
Units per Case500.0
Minimum Conductor Size (Metric)3.31 mm²
MaterialETP Copper
Dimension E0.84 Inch
Overall Width (Metric) UOMmm
Overall Length (Imperial) UOMin
Terminal TypeFork
Barrel StyleButted
Maximum Insulation Outer Diameter (Imperial)0.25
Maximum Operating Temperature (Celsius)105.0
