3M Products & Supplies

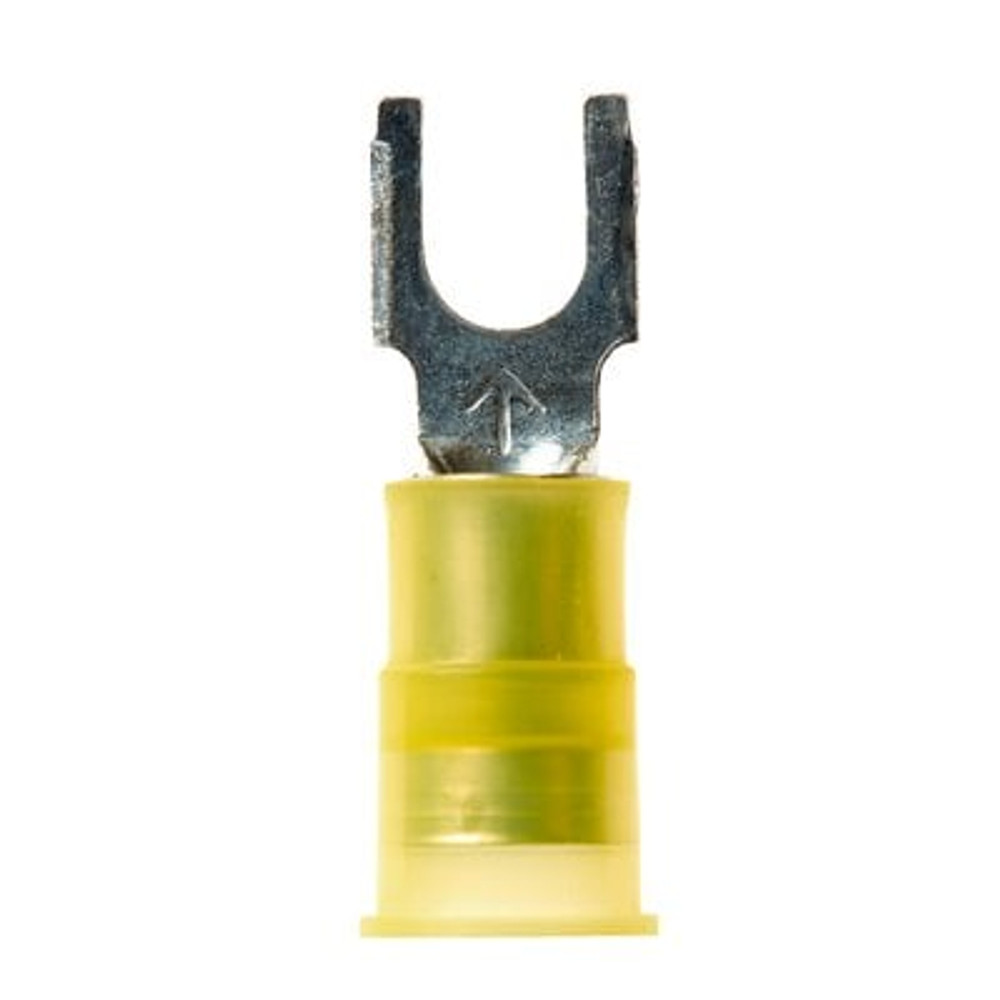

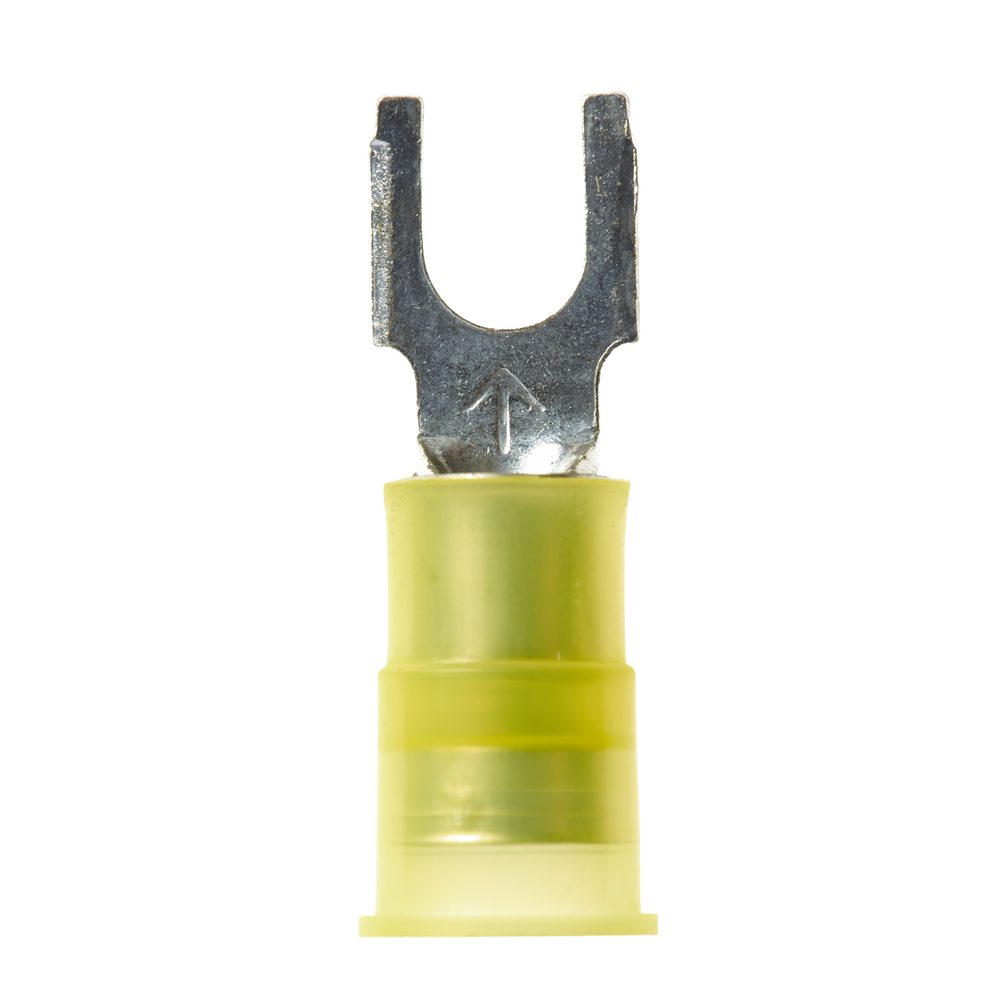

3M™ Scotchlok™ Block Fork Nylon Insulated, 50/bottle, MNG10-10FBX, suitable for use in a terminal block, 500/Case - 7000133309

Sold As: 50-Pack
SKU: 7000133309
MPN: 7000133309
Stock Item: Stock items typically ship within 2-3 business days
UPC: 00051128587188
3M ID: 80611458631
5 Digit UPC: 58718
$61.81 ($1.24 / Count)
Hurry up! Current stock:

Product Description

Downloads

Specifications

Country of OriginUnited States
Clearance (C)0.29 Inch
Dimension E0.84 Inch
UL File NumberE23438
Overall Width (Metric)8.128
Minimum Conductor Size (Imperial)12 AWG
RoHS EU CommentsRoHS 2011/65/EU compliant without exemption
Maximum Insulation Outer Diameter (Metric)3.7
Barrel Inside Diameter0.135 Inch
Maximum Conductor Size (Metric)5.26 mm²
Maximum Insulation Outside Diameter0.145 in
Terminal StyleBlock
Maximum Conductor Size (Imperial)10 AWG
Maximum Operating Temperature (Fahrenheit) UOMDegree
Overall Length (Imperial)1.03
Insulation MaterialNylon with Insulation Grip
Overall Width (Imperial)0.32
Maximum Insulation Outer Diameter (Metric) UOMmm
Barrel StyleButted
Fork TypeBlock
Minimum Conductor Size (Metric)3.31 mm²
Maximum Operating Temperature (Fahrenheit)221.0
Maximum Operating Temperature (Celsius) UOMDegree
Overall Length (Imperial) UOMin
Maximum Recommended Voltage Rating600.0
Overall Length (Metric)26.162
Overall Width (Metric) UOMmm
Stud Size#10
Maximum Recommended Voltage Rating UOMV
Maximum Insulation Outer Diameter (Imperial) UOMin
Maximum Insulation Outer Diameter (Imperial)0.25
Packaging50 per bottle
Product ColorYellow
Overall Length (Metric) UOMmm
MaterialETP Copper
Overall Width (Imperial) UOMin
Terminal TypeFork
Maximum Operating Temperature (Celsius)105.0
Units per Case500.0
