3M Products & Supplies

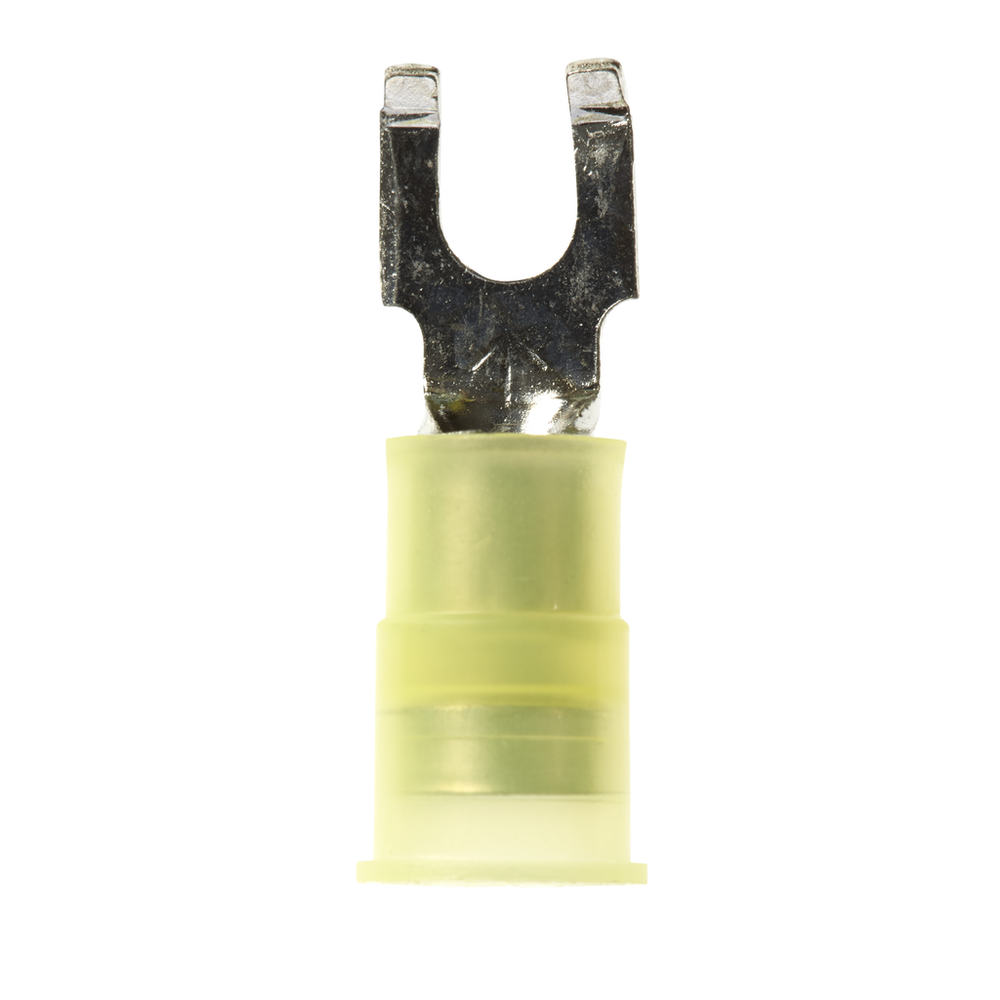

3M™ Scotchlok™ Flanged Block Fork Nylon Insulated, 50/bottle, MNG10-8FFBX, suitable for use in a terminal block, 500/Case - 7100165319

Sold As: 500-Pack
SKU: 7100165319
MPN: 7100165319
Made to Order: For a lead time estimate, please send your request to [email protected]
UPC: 10051128589875
3M ID: 80611466337
5 Digit UPC: 58987
$797.86 ($1.60 / Count)
Hurry up! Current stock:

Product Description

3M™ Flanged Block Fork Terminal ensures an ideal fit while offering reliable and safe performance. The terminal has a nylon-insulated, butted-seam barrel and withstands temperatures of -40 to 221 degrees F (-40 to 105 degrees C). Electrolytic copper construction offers good conductivity and a tin-plated finish resists corrosion.

Features

  • Funnel-designed, seamless brass sleeve offers easy insertion of wires
  • Withstands a temperature range of -40 to 221 degrees F (-40 to 105 degrees C)
  • Nylon-insulated, butted-seam barrel ensures a secure fit and offers reliable performance
  • Suitable for use in a terminal block
  • 600V-rated for building wire and 1000V for signs, fixtures or luminaires
  • Electrolytic copper construction offers good conductivity

Downloads

Specifications

Country of OriginUnited States
Stud Diameter (Metric)4.166
Overall Length (Imperial) UOMin
Terminal TypeFork
Clearance (C)0.29 Inch
Stud Diameter (Metric) UOMmm
Overall Length (Imperial)1.03
UL File NumberE23438
Maximum Conductor Size (Imperial)10 AWG
Units per Case500.0
Overall Width (Imperial)0.32
Stud Diameter (Imperial)0.164
Minimum Conductor Size (Imperial)12 AWG
Barrel Inside Diameter0.135 Inch
Maximum Conductor Size (Metric)5.26 mm²
Terminal StyleFlanged Block
Insulation MaterialNylon with Insulation Grip
Maximum Insulation Outer Diameter (Imperial)0.25
Fork TypeFlanged Block
Maximum Insulation Outer Diameter (Imperial) UOMin
Stud Size#8
Packaging50 per bottle
Minimum Conductor Size (Metric)3.31 mm²
Stud Diameter (Imperial) UOMin
Dimension E0.84 Inch
RoHS EU CommentsRoHS 2011/65/EU compliant without exemption
Overall Width (Imperial) UOMin
Barrel StyleButted
