3M Products & Supplies

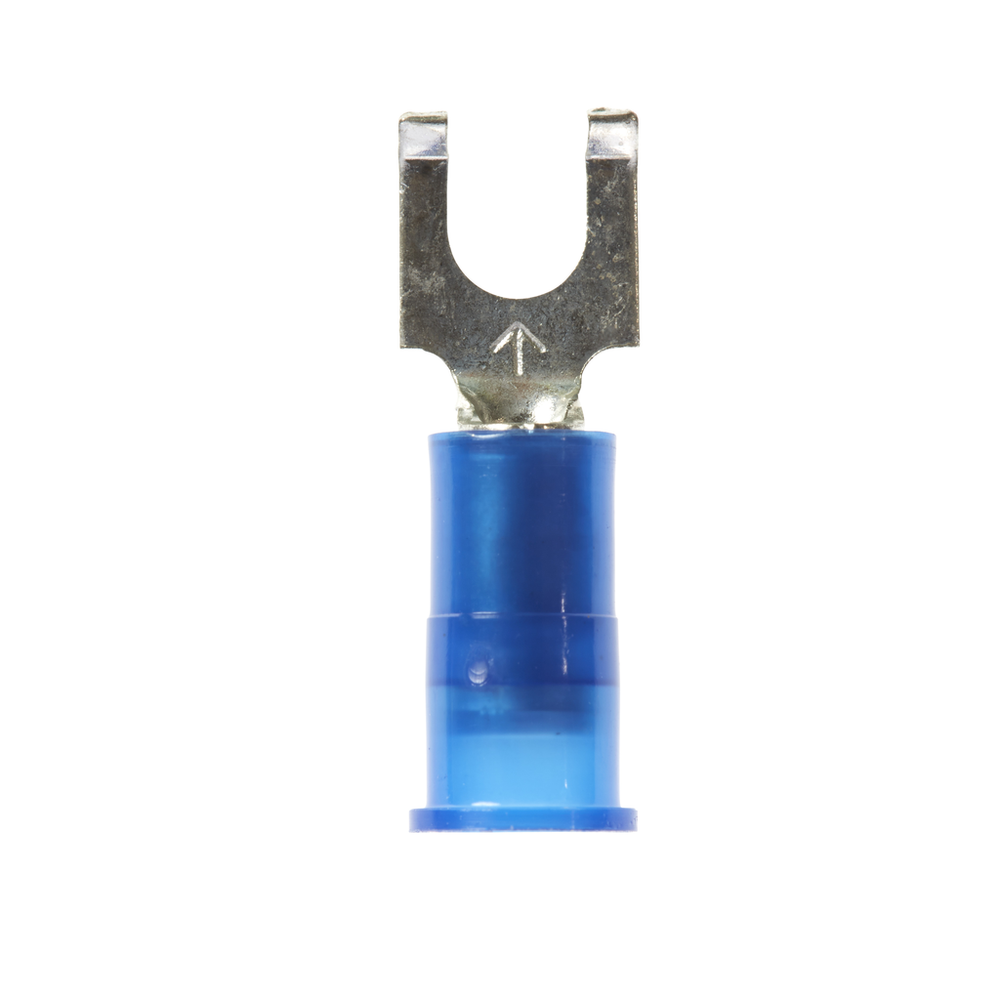

3M™ Scotchlok™ Flanged Block Fork Nylon Insulated, 100/bottle, MNG14-10FFBX, suitable for use in a terminal block, 500/Case - 7100165313

Sold As: 500-Pack
SKU: 7100165313
MPN: 7100165313
Made to Order: For a lead time estimate, please send your request to [email protected]
UPC: 00051128589748
3M ID: 80611466204
5 Digit UPC: 58974
$561.87 ($1.12 / Count)
Hurry up! Current stock:

Product Description

3M™ Flanged Block Fork Terminal ensures an ideal fit while offering reliable and safe performance. The terminal has a nylon-insulated, butted-seam barrel and withstands temperatures of -40 to 221 degrees F (-40 to 105 degrees C). Electrolytic copper construction offers good conductivity and a tin-plated finish resists corrosion.

Features

  • Electrolytic copper construction offers good conductivity
  • Suitable for use in a terminal block
  • Withstands a temperature range of -40 to 221 degrees F (-40 to 105 degrees C)
  • Funnel-designed, seamless brass sleeve offers easy insertion of wires
  • Nylon-insulated, butted-seam barrel ensures a secure fit and offers reliable performance
  • 600V-rated for building wire and 1000V for signs, fixtures or luminaires

Downloads

Specifications

Country of OriginUnited States
Dimension E0.71 Inch
Stud Diameter (Imperial) UOMin
Maximum Insulation Outer Diameter (Imperial)0.17
Clearance (C)0.25 Inch
Terminal TypeFork
Overall Width (Imperial)0.3
RoHS EU CommentsRoHS 2011/65/EU compliant without exemption
Stud Diameter (Imperial)0.19
Minimum Conductor Size (Imperial)16 AWG
Overall Length (Imperial)0.86
Fork TypeFlanged Block
Barrel Inside Diameter0.090 Inch
Maximum Insulation Outer Diameter (Imperial) UOMin
Packaging100 per bottle
Overall Length (Imperial) UOMin
Stud Diameter (Metric) UOMmm
Overall Width (Imperial) UOMin
UL File NumberE23438
Insulation MaterialNylon with Insulation Grip
Terminal StyleFlanged Block
Stud Size#10
Minimum Conductor Size (Metric)1.31 mm²
Units per Case500.0
Barrel StyleButted
Maximum Conductor Size (Imperial)14 AWG
Maximum Conductor Size (Metric)2.08 mm²
Stud Diameter (Metric)4.826
