3M Products & Supplies

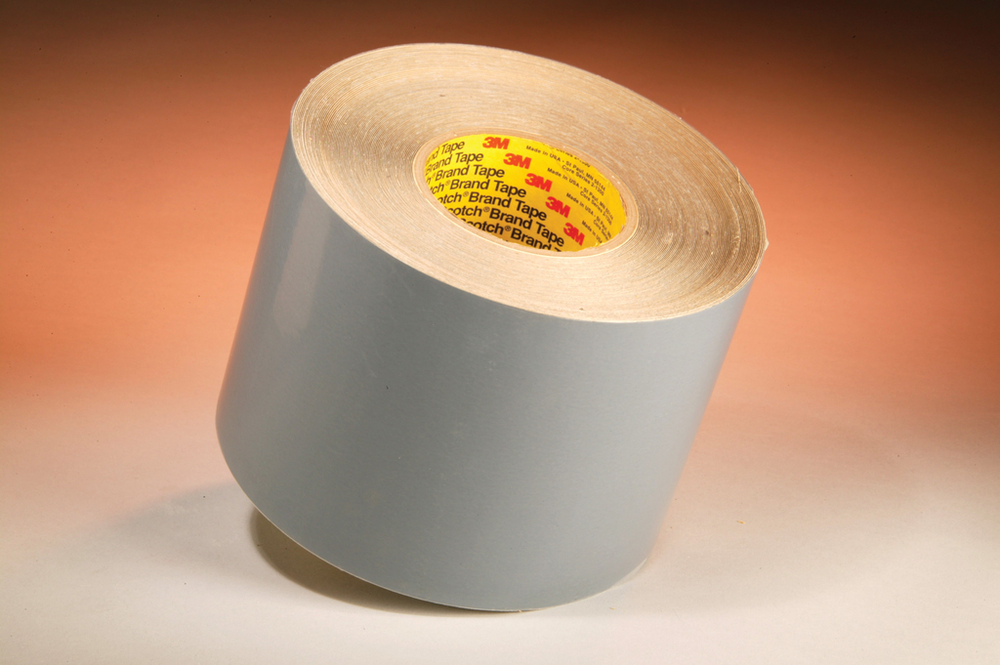

"3M™ Flexomount™ Plate Mounting Tape 411DL, Gray, 2 1/2 in x 36 yd, 15 mil, 16 Roll/Case" - 7010373533

Sold As: 16-Pack
SKU: 7010373533
MPN: 7010373533
Made to Order: For a lead time estimate, please send your request to [email protected]
UPC: 00051138957025
3M ID: 70006391174
5 Digit UPC: 95702
$2,180.06 ($136.25 / Count)
Hurry up! Current stock:

Product Description

3M™ Flexomount™ Plate Mounting Tape 411DL is a double linered, double coated tape designed for mounting photopolymer and rubber printing plates to flexographic printing cylinders or sleeves. The adhesive is specially formulated for clean removal from both the plate and the print cylinder or sleeve.

Features

  • Double linered version of 411
  • Provides uniform coverage of solids when halftone dot reproduction is not critical
  • Offers excellent adhesion to both rubber and photopolymer plates
  • High adhesion helps reduce plate edge lifting
  • Specially formulated for clean removal from plate and print cylinder or sleeve
Spec Sheet



Downloads

Specifications

Shelf Life365
Country of OriginUnited States
Composite SleevesYes
Print QualitySolid Printing
Application Thickness (Metric) UOMmm
Overall Width (Imperial) UOMin
Secondary Liner Thickness (Metric) UOMmm
Total Tape Thickness without Liner (Metric)0.38
Overall Length (Metric)32.91
Backing MaterialSolid Vinyl
Application Thickness (Imperial) UOMmil
Adhesive TypeRubber
Overall Width (Imperial)2.5
Overall Length (Imperial)36.0
Overall Width (Metric) UOMmm
Warranty Period1 Year from Date of Manufacture
Primary Liner Thickness (Metric) UOMmm
Overall Width (Metric)63.5
IndustriesPrint
Product FormRoll
Primary Liner Thickness (Metric)0.1
Air ReleaseNo
Total Tape Thickness without Liner (Imperial)15.0
Product ColorGray
Total Tape Thickness without Liner (Metric) UOMmm
Application Thickness (Metric)0.4
Print Quality (Series)400 Series
Secondary Liner Thickness (Metric)0.1
Primary LinerPolycoated Kraft Paper
Overall Length (Metric) UOMm
Overall Thickness (Imperial) UOMmil
Secondary LinerPolyethylene
Overall Thickness (Imperial)15.0
ApplicationFlexographic Plate Mounting
Urethane SleevesYes
Total Tape Thickness without Liner (Imperial) UOMmil
Application Thickness (Imperial)15
Overall Length (Imperial) UOMyd
Units per Case1.0
Secondary Liner Thickness (Imperial)4.0
Primary Liner Thickness (Imperial) UOMmil
Primary Liner Thickness (Imperial)4.0
Secondary Liner Thickness (Imperial) UOMmil
