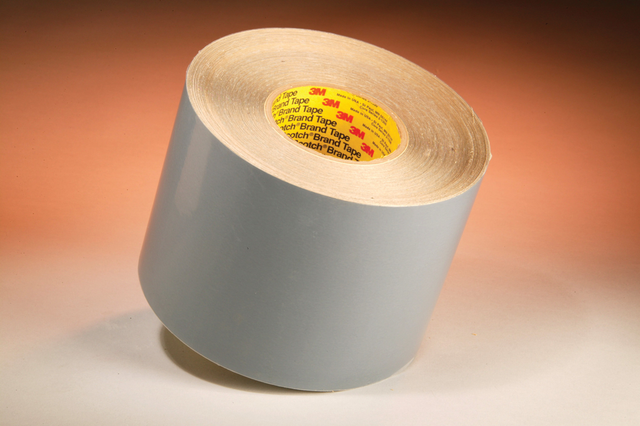

3M™ Flexomount™ Plate Mounting Tape 411DL is a double linered, double coated tape designed for mounting photopolymer and rubber printing plates to flexographic printing cylinders or sleeves. The adhesive is specially formulated for clean removal from both the plate and the print cylinder or sleeve.
Features
Downloads
| Shelf Life | 365 |
|---|---|
| Country of Origin | United States |
| Secondary Liner Thickness (Metric) UOM | mm |
| Total Tape Thickness without Liner (Imperial) | 15.0 |
| Primary Liner Thickness (Metric) | 0.1 |
| Primary Liner Thickness (Metric) UOM | mm |
| Units per Case | 1.0 |
| Total Tape Thickness without Liner (Imperial) UOM | mil |
| Overall Length (Imperial) | 36.0 |
| Product Color | Gray |
| Adhesive Type | Rubber |
| Backing Material | Solid Vinyl |
| Application Thickness (Imperial) UOM | mil |
| Composite Sleeves | Yes |
| Overall Thickness (Imperial) UOM | mil |
| Print Quality | Solid Printing |
| Secondary Liner | Polyethylene |
| Application | Flexographic Plate Mounting |
| Urethane Sleeves | Yes |
| Overall Width (Metric) UOM | mm |
| Overall Width (Imperial) UOM | in |
| Total Tape Thickness without Liner (Metric) | 0.38 |
| Application Thickness (Metric) | 0.4 |
| Application Thickness (Imperial) | 15 |
| Application Thickness (Metric) UOM | mm |
| Industries | |
| Overall Length (Imperial) UOM | yd |
| Overall Length (Metric) UOM | m |
| Overall Thickness (Imperial) | 15.0 |
| Print Quality (Series) | 400 Series |
| Primary Liner | Polycoated Kraft Paper |
| Secondary Liner Thickness (Metric) | 0.1 |
| Overall Width (Metric) | 685.8 |
| Overall Width (Imperial) | 27.0 |
| Overall Length (Metric) | 32.91 |
| Total Tape Thickness without Liner (Metric) UOM | mm |
| Air Release | No |
| Product Form | Roll |
| Warranty Period | 1 Year from Date of Manufacture |
