3M Products & Supplies

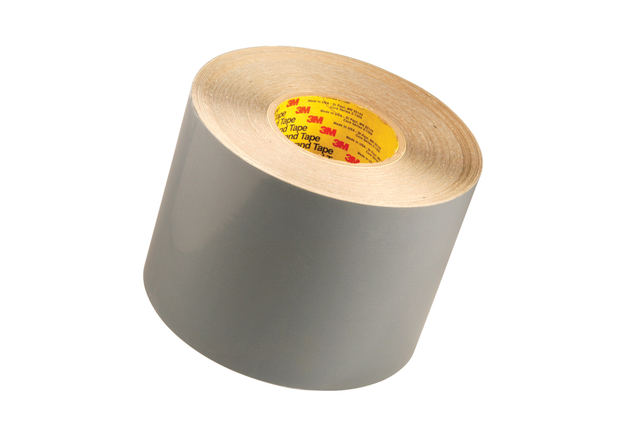

"3M™ Flexomount™ Plate Mounting Tape 447DL, Gray, 1 in x 36 yd, 10 mil, 36 Roll/Case" - 7010334300

Sold As: 36-Pack
SKU: 7010334300
MPN: 7010334300
Made to Order: For a lead time estimate, please send your request to [email protected]
UPC: 00051138954604
3M ID: 70006388774
5 Digit UPC: 95460
$1,974.07 ($54.84 / Count)
Hurry up! Current stock:

Product Description

3M™ Flexomount™ Plate Mounting Tape 447DL is a double liner, double coated tape designed for mounting photopolymer and rubber printing plates to flexographic printing cylinders or sleeves. The adhesive is specially formulated for clean removal from both the plate and the print cylinder or sleeve.

Features

  • Specially formulated for clean removal from plate and print cylinder or sleeve
  • Provides uniform coverage of solids when halftone dot reproduction is not critical
  • Offers excellent adhesion to both rubber and photopolymer plates
  • High adhesion helps reduce plate edge lifting
Spec Sheet



Downloads

Specifications

Shelf Life365
Country of OriginUnited States
Overall Thickness (Imperial)10.0
Urethane SleevesYes
ApplicationFlexographic Plate Mounting
Units per Case36.0
Primary Liner Thickness (Metric)0.1
Air ReleaseNo
Application Thickness (Imperial) UOMmil
Secondary Liner Thickness (Imperial) UOMmil
Primary Liner Thickness (Imperial)4.0
Print Quality (Series)400 Series
Product ColorGray
Total Tape Thickness without Liner (Metric)0.26
Primary Liner Thickness (Imperial) UOMmil
Overall Length (Imperial)36.0
Composite SleevesYes
Print QualitySolid Printing
Overall Length (Metric)32.91
Overall Width (Metric) UOMmm
Primary LinerPolycoated Kraft Paper
Secondary Liner Thickness (Metric)0.1
Overall Width (Imperial)1.0
Overall Width (Metric)25.4
Total Tape Thickness without Liner (Imperial)10.0
Total Tape Thickness without Liner (Imperial) UOMmil
Overall Length (Metric) UOMm
Product FormRoll
Secondary LinerPolyethylene
Total Tape Thickness without Liner (Metric) UOMmm
Application Thickness (Metric)0.25
Primary Liner Thickness (Metric) UOMmm
Secondary Liner Thickness (Imperial)4.0
Backing MaterialSolid Vinyl
Overall Thickness (Imperial) UOMmil
Secondary Liner Thickness (Metric) UOMmm
Overall Length (Imperial) UOMyd
Application Thickness (Metric) UOMmm
Overall Width (Imperial) UOMin
Warranty Period1 Year from Date of Manufacture
Application Thickness (Imperial)10
IndustriesElectronics, Packaging, Paper, Print
