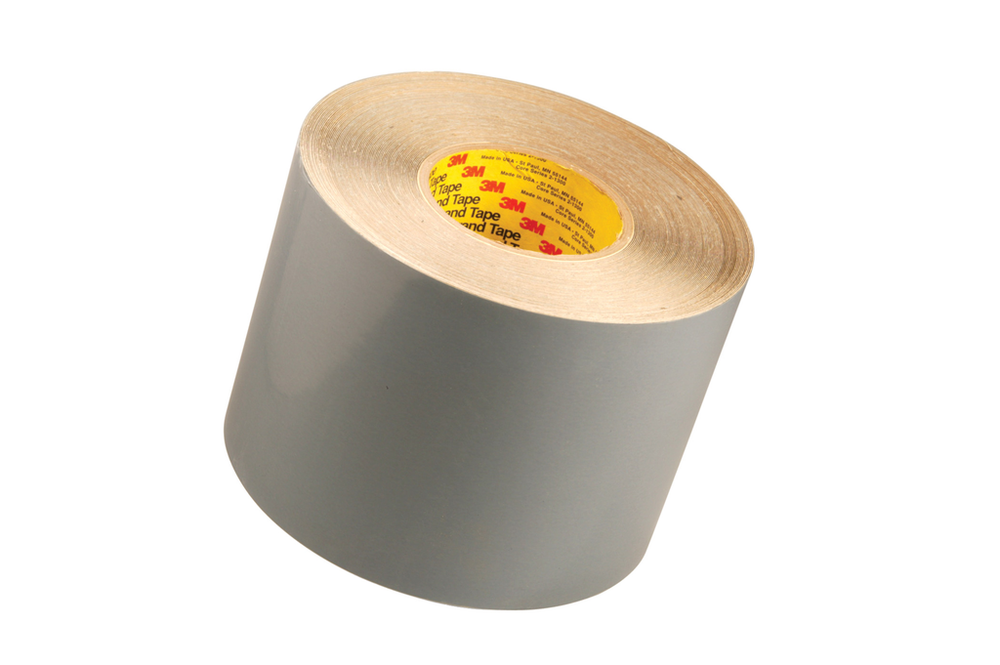

3M™ Flexomount™ Plate Mounting Tape 447DL is a double liner, double coated tape designed for mounting photopolymer and rubber printing plates to flexographic printing cylinders or sleeves. The adhesive is specially formulated for clean removal from both the plate and the print cylinder or sleeve.
Features
Downloads
| Shelf Life | 365 |
|---|---|
| Country of Origin | United States |
| Total Tape Thickness without Liner (Metric) UOM | mm |
| Air Release | No |
| Application | Flexographic Plate Mounting |
| Application Thickness (Metric) | 0.25 |
| Product Color | Gray |
| Backing Material | Solid Vinyl |
| Total Tape Thickness without Liner (Imperial) UOM | mil |
| Overall Thickness (Imperial) | 10.0 |
| Total Tape Thickness without Liner (Imperial) | 10.0 |
| Secondary Liner Thickness (Imperial) | 4.0 |
| Urethane Sleeves | Yes |
| Warranty Period | 1 Year from Date of Manufacture |
| Composite Sleeves | Yes |
| Print Quality | Solid Printing |
| Total Tape Thickness without Liner (Metric) | 0.26 |
| Product Form | Roll |
| Industries | Electronics, Packaging, Paper, Print |
| Secondary Liner | Polyethylene |
| Secondary Liner Thickness (Metric) UOM | mm |
| Overall Width (Metric) | 457.2 |
| Application Thickness (Imperial) | 10 |
| Application Thickness (Imperial) UOM | mil |
| Overall Width (Metric) UOM | mm |
| Backing Thickness (Metric) UOM | mm |
| Overall Length (Metric) UOM | m |
| Secondary Liner Thickness (Metric) | 0.1 |
| Overall Length (Imperial) | 36.0 |
| Overall Length (Metric) | 32.91 |
| Overall Width (Imperial) UOM | in |
| Overall Thickness (Imperial) UOM | mil |
| Application Thickness (Metric) UOM | mm |
| Units per Case | 1.0 |
| Overall Length (Imperial) UOM | yd |
| Primary Liner Thickness (Imperial) | 4.0 |
| Primary Liner | Polycoated Kraft Paper |
| Print Quality (Series) | 400 Series |
| Overall Width (Imperial) | 18.0 |
| Primary Liner Thickness (Metric) | 0.1 |
| Secondary Liner Thickness (Imperial) UOM | mil |
| Backing Thickness (Metric) | 0.25 |
| Primary Liner Thickness (Imperial) UOM | mil |
| Primary Liner Thickness (Metric) UOM | mm |
