3M Products & Supplies

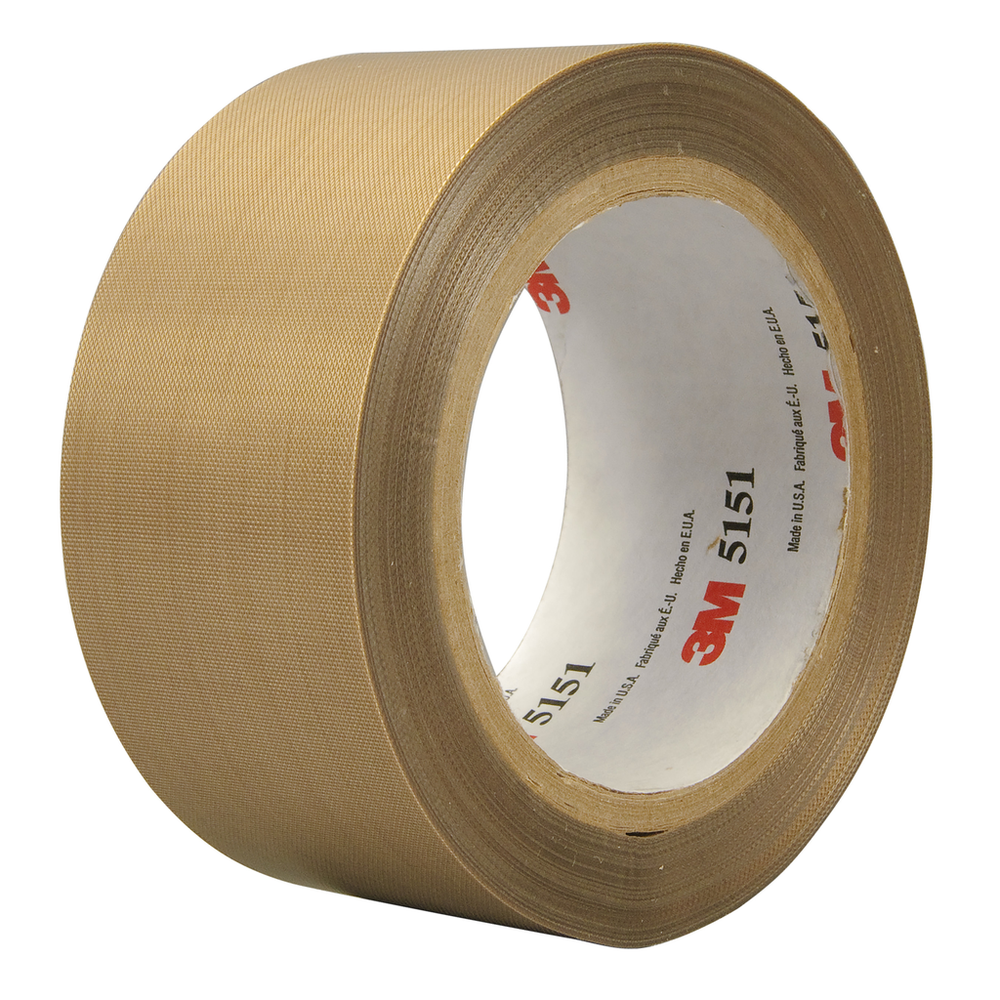

3M™ General Purpose PTFE Glass Cloth Tape 5151, Light Brown, 3/4 in x 36 yd, 5.3 mil, 48 Roll/Case - 7000123940

Sold As: 48-Pack
SKU: 7000123940
MPN: 7000123940
Lead Time: 47 working days.
UPC: 00021200456305
3M ID: 70006299427
5 Digit UPC: 45630
$4,458.37 ($92.88 / Count)
Hurry up! Current stock:

Product Description

Formed from a light brown woven glass cloth backing impregnated with PTFE (polytetrafluoroethylene), 3M™ General Purpose PTFE Glass Cloth Tape 5151 provides a slick surface on process machinery. This tape offers an extremely low coefficient of friction which, in combination with a pressure sensitive silicone adhesive, creates a non-stick surface that performs at elevated temperatures.

Features

  • Excellent chemical resistance enables tape to withstand challenging applications
  • Silicone adhesive offers high temperature performance and long aging
  • Very low moisture absorption allows the tape to perform in many humid environments
  • Glass cloth reinforced backing provides greater tensile strength and resistance to tears and punctures than typical PTFE film backed tapes
  • Performs under a wide range of temperatures, including up to 500°F/260°C
  • Provides a non-stick, low friction surface on heat sealing and packaging equipment
Spec Sheet



Downloads

Specifications

Shelf Life730
Country of OriginUnited States
Overall Length (Metric)32.9
Units per Case48.0
Overall Width (Imperial)0.8
Tensile Strength (Metric)36.0
Core Size (Imperial)3.0
Overall Width (Metric)1.9
Backing (Carrier) Thickness (Metric)0.08
Minimum Operating Temperature (Celsius)-73.0
IndustriesAerospace, Appliance, Automotive, Electronics, General Industrial, Metalworking, Military and Government, Specialty Vehicles, Transportation
Product ColorLight Brown
Back Side Adhesive Thickness (Metric)0.06
Tensile Strength (Imperial)1760.0
Total Tape Thickness without Liner (Metric)0.13
Total Tape Thickness without Liner (Imperial) UOMmil
Back Side Adhesive Thickness (Metric) UOMmm
Total Tape Thickness without Liner (Imperial)5.3
Backing (Carrier) MaterialGlass Cloth/PTFE
Adhesive TypeSilicone
Back Side Adhesive Thickness (Imperial)2.3
Indoor/OutdoorIndoor/Outdoor
Total Tape Thickness without Liner (Metric) UOMmm
Overall Width (Metric) UOMcm
Overall Length (Metric) UOMm
Tensile Strength (Imperial) UOMoz/in
Maximum Operating Temperature (Fahrenheit)500.0
Core Size (Imperial) UOMin
Minimum Operating Temperature (Fahrenheit)-100.0
Overall Width (Imperial) UOMin
Shelf Life UOMMonth
Specifications MetASTM D3330, ASTM D3758, D3652, F.A.R. 25.853(a)
Maximum Operating Temperature (Celsius) UOMDegree
Backing (Carrier) Thickness (Imperial)3.0
Minimum Operating Temperature (Celsius) UOMDegree
Maximum Operating Temperature (Fahrenheit) UOMDegree
Backing (Carrier) Thickness (Metric) UOMmm
Tensile Strength (Metric) UOMN/100mm
Back Side Adhesive Thickness (Imperial) UOMmil
Core Size (Metric)7.62
Overall Length (Imperial)36.0
Core Size (Metric) UOMcm
Maximum Operating Temperature (Celsius)260.0
Backing (Carrier) Thickness (Imperial) UOMmil
Elongation at Break5
Minimum Operating Temperature (Fahrenheit) UOMDegree
Overall Length (Imperial) UOMyd
