3M Products & Supplies

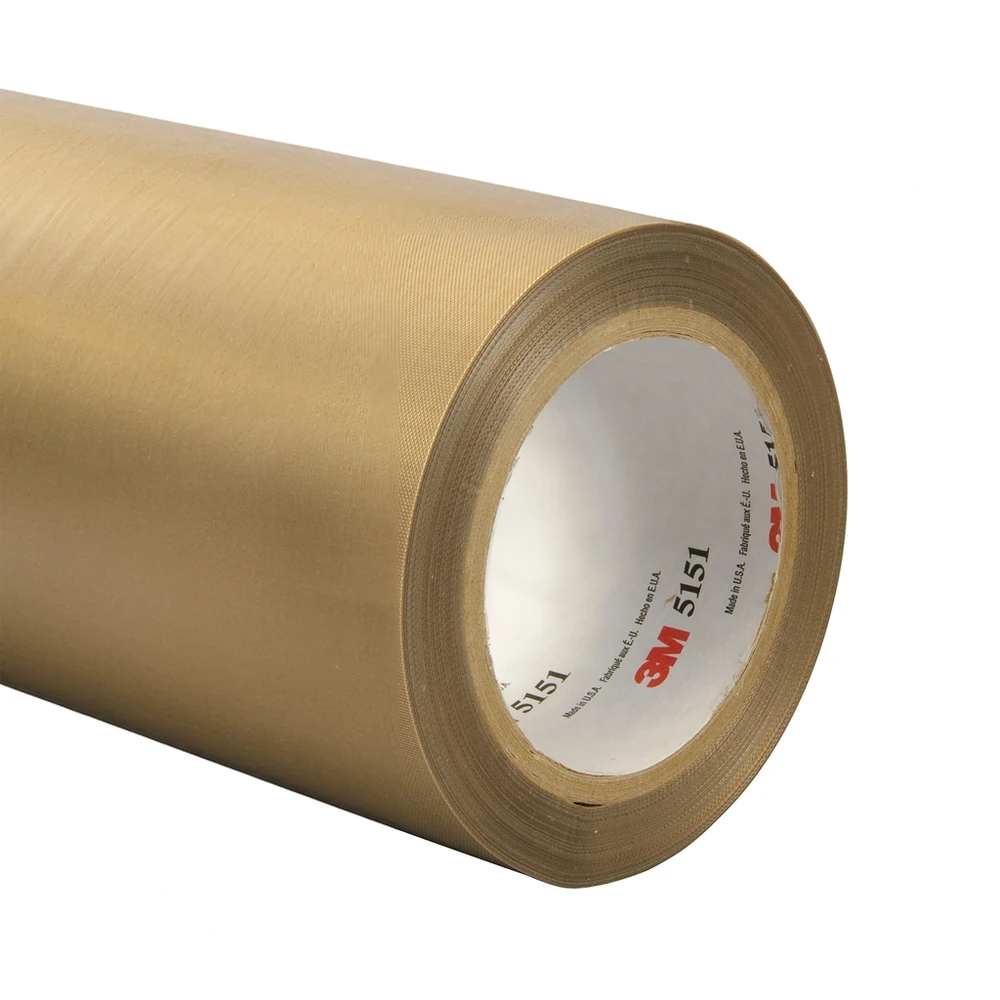

3M™ General Purpose PTFE Glass Cloth Tape 5151PL, Light Brown, 36 in x 36 yd, 5.3 mil, 1 roll per case - 7010334096

Sold As: 5-Pack
SKU: 7010334096
MPN: 7010334096
Lead Time: 47 working days.
UPC: 021200551512
3M ID: 70006316585
5 Digit UPC: 55151
$25,573.18 ($5114.64 / Count)
Hurry up! Current stock:

Product Description

Formed from a light brown woven glass cloth backing impregnated with PTFE (polytetrafluoroethylene), 3M™ General Purpose PTFE Glass Cloth Tape 5151PL provides a slick surface on process machinery. This tape offers an extremely low coefficient of friction which, in combination with a pressure sensitive silicone adhesive, creates a non-stick surface that performs at elevated temperatures.

Features

  • Performs under a wide range of temperatures, including up to 500°F/260°C
  • Silicone adhesive offers high temperature performance and long aging
  • Premium linered tape is ideal for die cutting or applications requiring increased stability
  • Excellent chemical resistance enables tape to withstand challenging applications
  • Glass cloth reinforced backing provides greater tensile strength and resistance to tears and punctures than typical PTFE film backed tapes
  • Very low moisture absorption allows the tape to perform in many humid environments
  • Provides a non-stick, low friction surface on heat sealing and packaging equipment

Downloads

Specifications

Shelf Life24 Month
Adhesive TypeSilicone
Tensile Strength (Imperial)1760 oz/in
Backing (Carrier) Thickness (Imperial)3 mil
Overall Length (Metric)32.91 m
Total Tape Thickness without Liner (Metric)0.13 mm
Tensile Strength (Metric)192.6 N/100mm
Maximum Operating Temperature (Fahrenheit)400 Degree Fahrenheit
Overall Width (Metric)914.4 mm
Overall Length (Imperial)36 yd
Minimum Operating Temperature (Fahrenheit)-100 Degree Fahrenheit
Backing (Carrier) MaterialGlass Cloth/PTFE
Total Tape Thickness without Liner (Imperial)5.3 mil
Backing (Carrier) Thickness (Metric)0.08 mm
Overall Width (Imperial)36 in
Product ColorBrown
Backing MaterialGlass cloth impregnated w/PTFE
Backing Thickness (Metric)3 mm
Backing Thickness (Imperial)118.1 mil
Product Number5151PL
Color FamilyBrown
Back Side Adhesive Thickness (Metric)en-US: 3 mm
Product FormRoll
Overall Thickness (Imperial)5.3 mil
