3M Products & Supplies

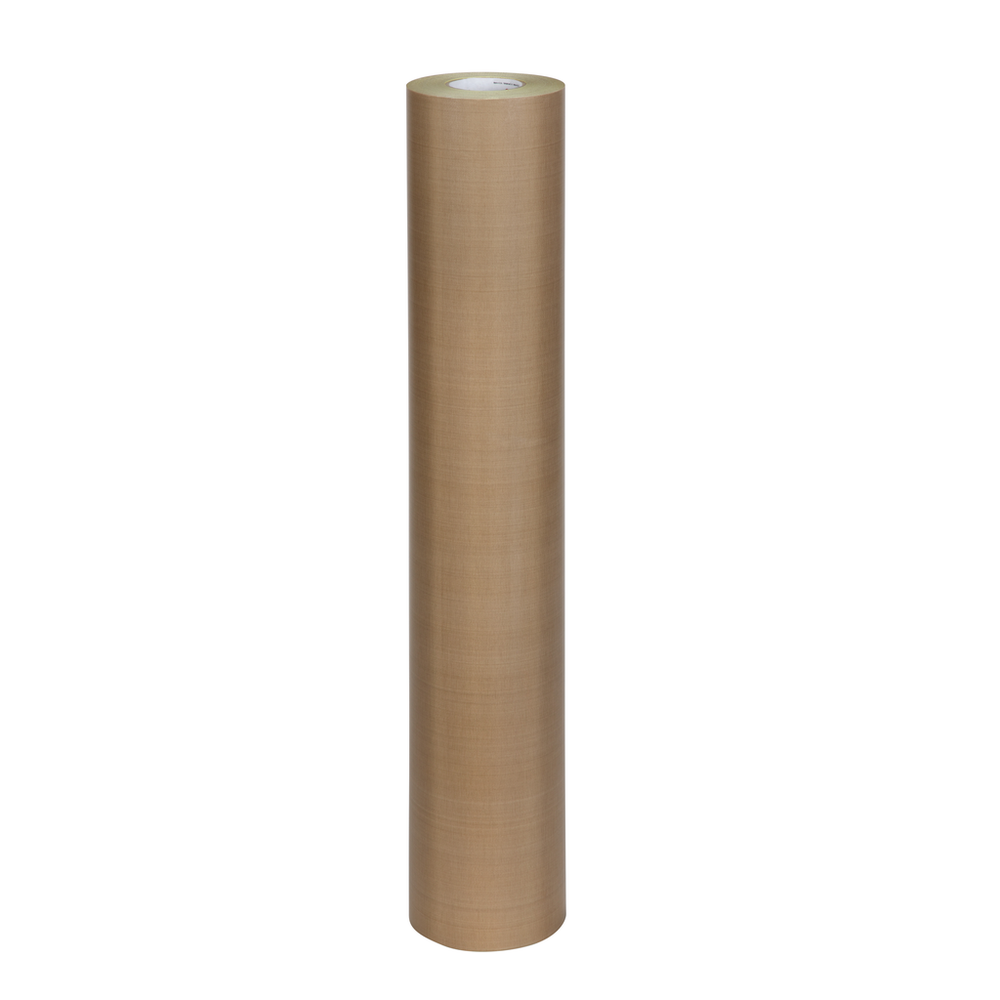

3M™ General Purpose PTFE Glass Cloth Tape 5153L, Light Brown, 36 in x 36 yd, 8 mil, 1 roll per case - 7010334083

Sold As: 10-Pack
SKU: 7010334083
MPN: 7010334083
Lead Time: 47 working days.
UPC: 021200485930
3M ID: 70006306784
5 Digit UPC: 48593
$62,497.45 ($6249.74 / Count)
Hurry up! Current stock:

Product Description

Formed from a light brown woven glass cloth backing impregnated with PTFE (polytetrafluoroethylene), 3M™ General Purpose PTFE Glass Cloth Tape 5153L provides a slick surface on process machinery. This tape offers an extremely low coefficient of friction which, in combination with a pressure sensitive silicone adhesive, creates a non-stick surface that performs at elevated temperatures.

Features

  • Silicone adhesive offers high temperature performance and long aging
  • Linered version of 3M™ General Purpose PTFE Glass Cloth Tape 5153 makes tape ideal for die cutting or applications requiring increased stability
  • Thicker backing helps extend the service life over thinner versions when subjected to abrasion and wear
  • Provides a non-stick, low friction surface on heat sealing and packaging equipment
  • Performs under a wide range of temperatures, including up to 500°F/260°C
  • Glass cloth reinforced backing provides greater tensile strength and resistance to tears and punctures than typical PTFE film backed tapes
  • Very low moisture absorption allows the tape to perform in many humid environments
  • Excellent chemical resistance enables tape to withstand challenging applications

Downloads

Specifications

Shelf Life24 Month
Product ColorLight Brown
Tensile Strength (Metric)507.9 N/100mm
Overall Width (Metric)914.4 mm
Overall Width (Imperial)36 in
Minimum Operating Temperature (Fahrenheit)-100 Degree Fahrenheit
Backing (Carrier) Thickness (Imperial)5.8 mil
Maximum Operating Temperature (Fahrenheit)500 Degree Fahrenheit
Backing (Carrier) MaterialGlass Cloth/PTFE
Back Side Adhesive Thickness (Metric)en-US: 0.15 mm
Elongation at Break5 %
Adhesive TypeSilicone
Backing (Carrier) Thickness (Metric)0.15 mm
Tensile Strength (Imperial)4640 oz/in
Maximum Operating Temperature (Celsius)260 Degree Celsius
Total Tape Thickness without Liner (Imperial)8 mil
Total Tape Thickness without Liner (Metric)0.2 mm
Overall Length (Imperial)36 yd
Overall Length (Metric)32.91 m
Backing Thickness (Imperial)5.8 mil
Backing Thickness (Metric)0.15 mm
Overall Thickness (Imperial)8 mil
Backing MaterialGlass cloth impregnated w/PTFE
Product FormRoll
Product Number5153L
Color FamilyBrown
