3M Products & Supplies

3M™ General Purpose Vinyl Tape 764, Black, 1 in x 36 yd, 5 mil, 36 Roll/Case, Individually Wrapped Conveniently Packaged - 7000123886

Sold As: 36-Pack
SKU: 7000123886
MPN: 7000123886
For an accurate lead time please contact us
UPC: 00021200434280
3M ID: 70006281748
5 Digit UPC: 43428
$151.82 ($4.22 / Count)
Hurry up! Current stock:

Product Description

3M™ General Purpose Vinyl and Hazard Marking Tapes 764 are the cost-effective choice for a variety of safety marking and color coding applications where you don’t see tough conditions or the need for long term clean removal. Conformability, instant adhesion and easy unwind make these tapes ideal for marking equipment, walls and pipes. Designed with unique stretch properties, this vinyl tape conforms to rough, irregular, curved and convex surfaces while remaining stretched and without lifting after application. The rubber adhesive offers quick stick and excellent holding strength on many substrates. It also maintains its color when exposed to abrasion, wear and many solvents. Using 3M™ Vinyl 764 Tape is a faster, more versatile and less costly option than painting, which often requires ventilation and time-consuming prep and clean-up processes. Recommended applications include floor marking; general purpose holding and bundling; color coding; marking of parts or machines; temporary protection of parts, equipment or products from abrasion; and decorating.

Features

  • INSTANT ADHESION: Rubber adhesive bonds immediately to a variety of surfaces
  • ECONOMICAL FLOOR MARKING: Cost-effective option for color coding and safety marking applications
  • TAPE YOUR WAY: This tape establishes a powerful bond whether you apply it by hand or with the 3M™ Lane Marking Applicator M1
  • HIGH CONFORMABILITY: Strong, flexible backing is ideal for use on curved and irregular surfaces

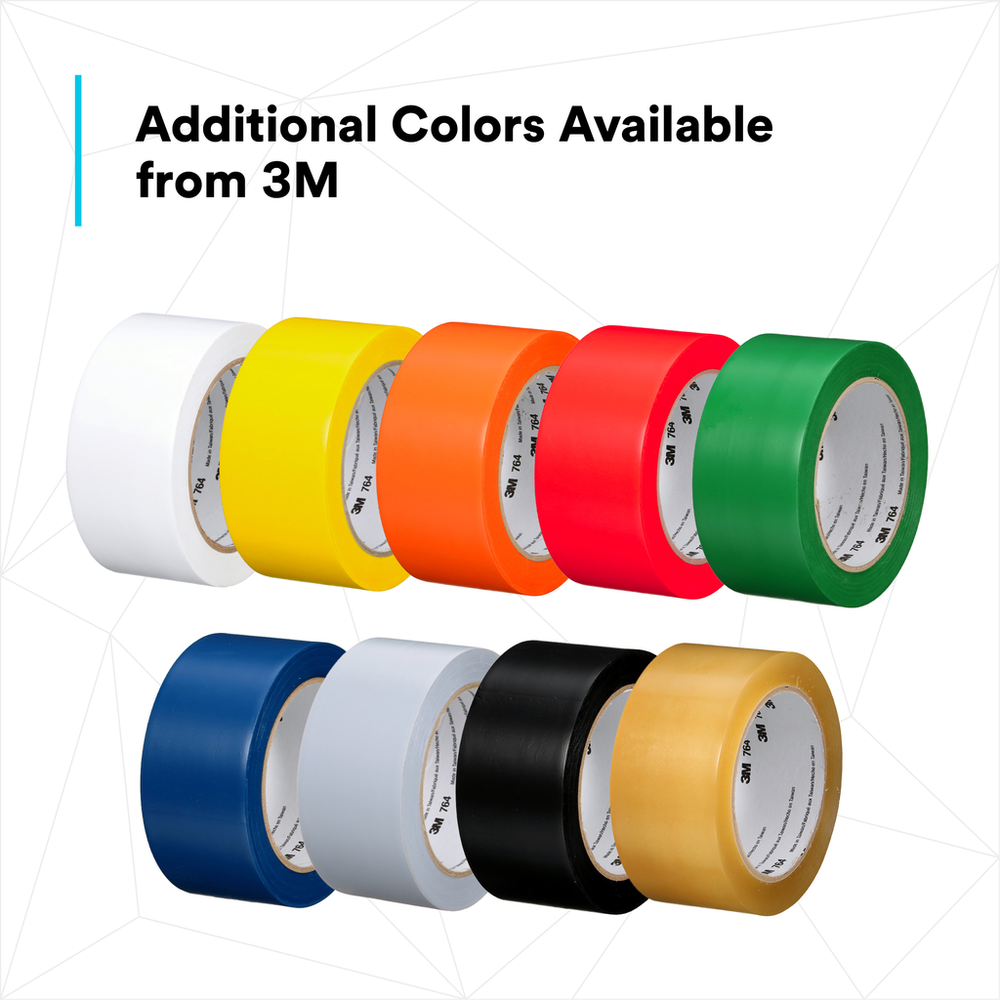

  • VIVID COLOR: A wide variety of colors helps markup floors and protect surfaces with color-coded efficiency
Spec Sheet



Downloads

Specifications

Shelf Life547
Country of OriginTaiwan
Product ColorBlack
Backing Thickness (Imperial) UOMmil
Back Side Adhesive Thickness (Metric) UOMmm
ApplicationGeneral Use Vinyl
Backing Thickness (Imperial)4.0
Tensile Strength (Metric) UOMN/100mm
Total Tape Thickness without Liner (Imperial) UOMmil
Maximum Operating Temperature (Celsius) UOMDegree
Shelf Life in Months (From Date of Manufacture) UOMMonths
Overall Height (Metric) UOMmm
Overall Width (Metric) UOMcm
Backing Thickness (Metric) UOMmm
Tensile Strength (Metric)228.0
Overall Thickness (Imperial)5.0
Overall Length (Metric)32.9
Tensile Strength (Imperial) UOMlb/in
Adhesion Strength18.0
Overall Width (Imperial) UOMin
IndustriesAutomotive, General Industrial, MRO, Military and Government, Specialty Vehicles, Transportation
Overall Length (Imperial)36.0
Backing Thickness (Metric)0.1
Total Tape Thickness without Liner (Metric)0.127
Back Side Adhesive Thickness (Metric)0.1
Units per Case36.0
Total Tape Thickness without Liner (Metric) UOMmm
Adhesive MaterialRubber
Overall Height (Imperial) UOMmil
Overall Length (Imperial) UOMyd
Elongation at Break1.8%
Overall Length (Metric) UOMm
Adhesion Strength (Metric)21.0
Total Tape Thickness without Liner (Imperial)5.0
Maximum Operating Temperature (Fahrenheit)85.0
Units per Case UOMRoll
Maximum Operating Temperature (Celsius)29.0
Maximum Operating Temperature (Fahrenheit) UOMDegree
Tensile Strength (Imperial)13.0
Minimum Operating Temperature (Fahrenheit) UOMDegree
Overall Height (Imperial)5.0
Overall Width (Imperial)1.0
Minimum Operating Temperature (Fahrenheit)60.0
Shelf Life in Months (From Date of Manufacture)18.0
Adhesion Strength (Metric) UOMN/100mm
Overall Thickness (Imperial) UOMmil
Product FormRoll
Minimum Operating Temperature (Celsius)16.0
Backing (Carrier) MaterialPVC
Overall Height (Metric)0.1
Overall Width (Metric)2.5
Minimum Operating Temperature (Celsius) UOMDegree
Adhesive TypeRubber
