3M Products & Supplies

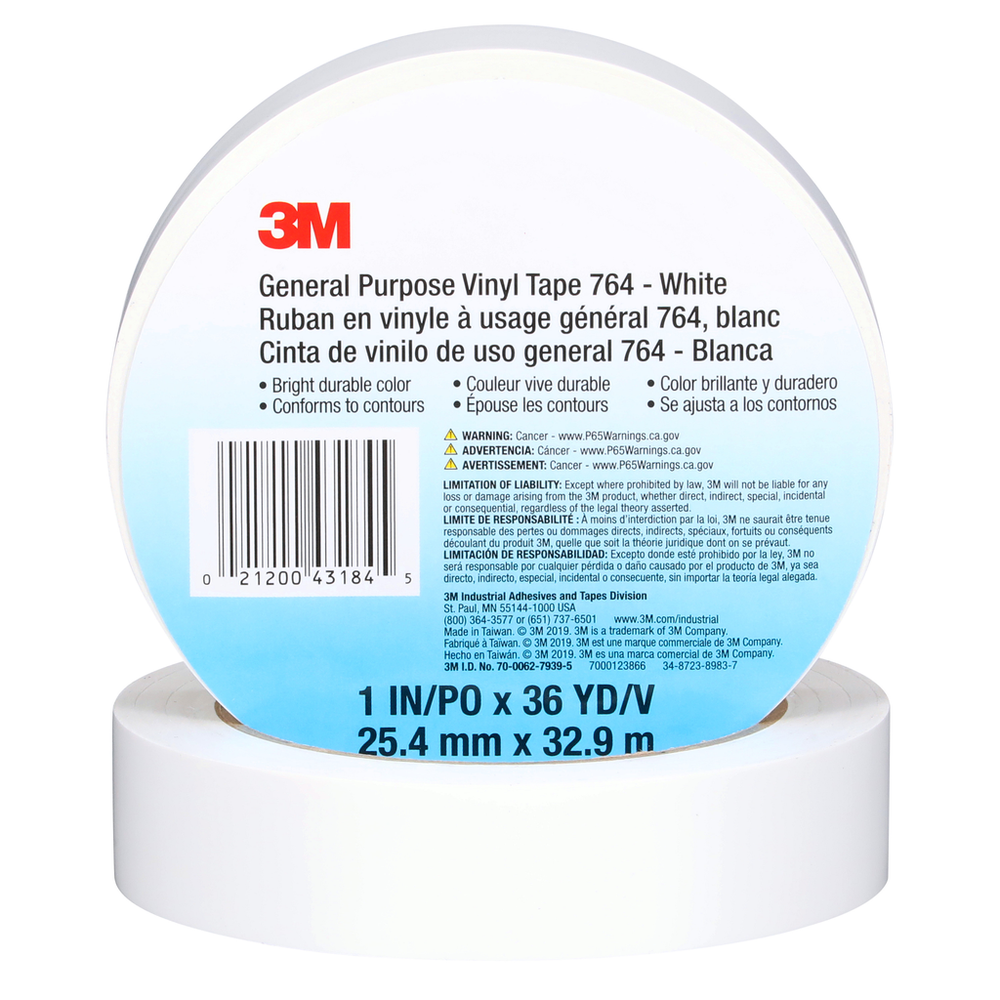

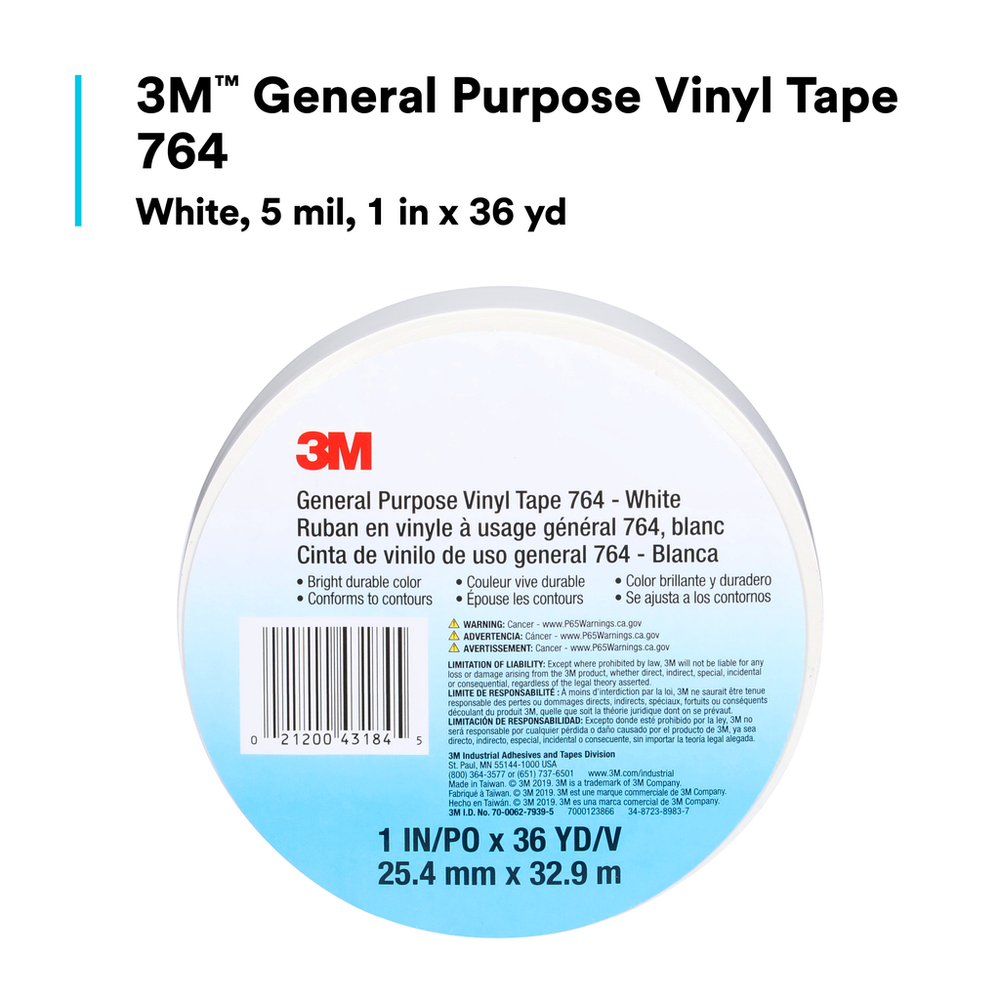

3M™ General Purpose Vinyl Tape 764, White, 1 in x 36 yd, 5 mil, 36 Roll/Case, Individually Wrapped Conveniently Packaged - 7000123866

Sold As: 36-Pack
SKU: 7000123866
MPN: 7000123866
For an accurate lead time please contact us
UPC: 00021200431845
3M ID: 70006279395
5 Digit UPC: 43184
$151.82 ($4.22 / Count)
Hurry up! Current stock:

Product Description

3M™ General Purpose Vinyl and Hazard Marking Tapes 764 are the cost-effective choice for a variety of safety marking and color coding applications where you don’t see tough conditions or the need for long term clean removal. Conformability, instant adhesion and easy unwind make these tapes ideal for marking equipment, walls and pipes. Designed with unique stretch properties, this vinyl tape conforms to rough, irregular, curved and convex surfaces while remaining stretched and without lifting after application. The rubber adhesive offers quick stick and excellent holding strength on many substrates. It also maintains its color when exposed to abrasion, wear and many solvents. Using 3M™ Vinyl 764 Tape is a faster, more versatile and less costly option than painting, which often requires ventilation and time-consuming prep and clean-up processes. Recommended applications include floor marking; general purpose holding and bundling; color coding; marking of parts or machines; temporary protection of parts, equipment or products from abrasion; and decorating.

Features

  • ECONOMICAL FLOOR MARKING: Cost-effective option for color coding and safety marking applications
  • TAPE YOUR WAY: This tape establishes a powerful bond whether you apply it by hand or with the 3M™ Lane Marking Applicator M1
  • INSTANT ADHESION: Rubber adhesive bonds immediately to a variety of surfaces
  • HIGH CONFORMABILITY: Strong, flexible backing is ideal for use on curved and irregular surfaces
  • VIVID COLOR: A wide variety of colors helps markup floors and protect surfaces with color-coded efficiency
Spec Sheet



Downloads

Specifications

Shelf Life547
Country of OriginTaiwan
Minimum Operating Temperature (Celsius)16.0
Maximum Operating Temperature (Fahrenheit)85.0
Backing Thickness (Metric)0.1
Overall Height (Imperial)5.0
Units per Case36.0
Overall Length (Metric)32.9
Adhesive TypeRubber
Maximum Operating Temperature (Celsius) UOMDegree
Minimum Operating Temperature (Fahrenheit) UOMDegree
ApplicationGeneral Use Vinyl
Tensile Strength (Imperial) UOMlb/in
Elongation at Break1.8%
Back Side Adhesive Thickness (Metric) UOMmm
Adhesion Strength18.0
Overall Length (Imperial) UOMyd
Tensile Strength (Imperial)13.0
Backing Thickness (Metric) UOMmm
Total Tape Thickness without Liner (Metric)0.127
Tensile Strength (Metric)228.0
Back Side Adhesive Thickness (Metric)0.1
Minimum Operating Temperature (Celsius) UOMDegree
Overall Height (Metric)0.1
Product FormRoll
Tensile Strength (Metric) UOMN/100mm
IndustriesAutomotive, General Industrial, MRO, Military and Government, Specialty Vehicles, Transportation
Backing (Carrier) MaterialPVC
Total Tape Thickness without Liner (Imperial)5.0
Overall Width (Imperial) UOMin
Maximum Operating Temperature (Fahrenheit) UOMDegree
Maximum Operating Temperature (Celsius)29.0
Total Tape Thickness without Liner (Imperial) UOMmil
Total Tape Thickness without Liner (Metric) UOMmm
Shelf Life in Months (From Date of Manufacture) UOMMonths
Adhesion Strength (Metric)21.0
Overall Length (Imperial)36.0
Shelf Life in Months (From Date of Manufacture)18.0
Product ColorWhite
Minimum Operating Temperature (Fahrenheit)60.0
Overall Width (Metric) UOMcm
Adhesive MaterialRubber
Backing Thickness (Imperial) UOMmil
Overall Thickness (Imperial) UOMmil
Adhesion Strength (Metric) UOMN/100mm
Overall Length (Metric) UOMm
Backing Thickness (Imperial)4.0
Overall Width (Metric)2.5
Overall Height (Metric) UOMmm
Units per Case UOMRoll
Overall Width (Imperial)1.0
Overall Height (Imperial) UOMmil
Overall Thickness (Imperial)5.0
