3M Products & Supplies

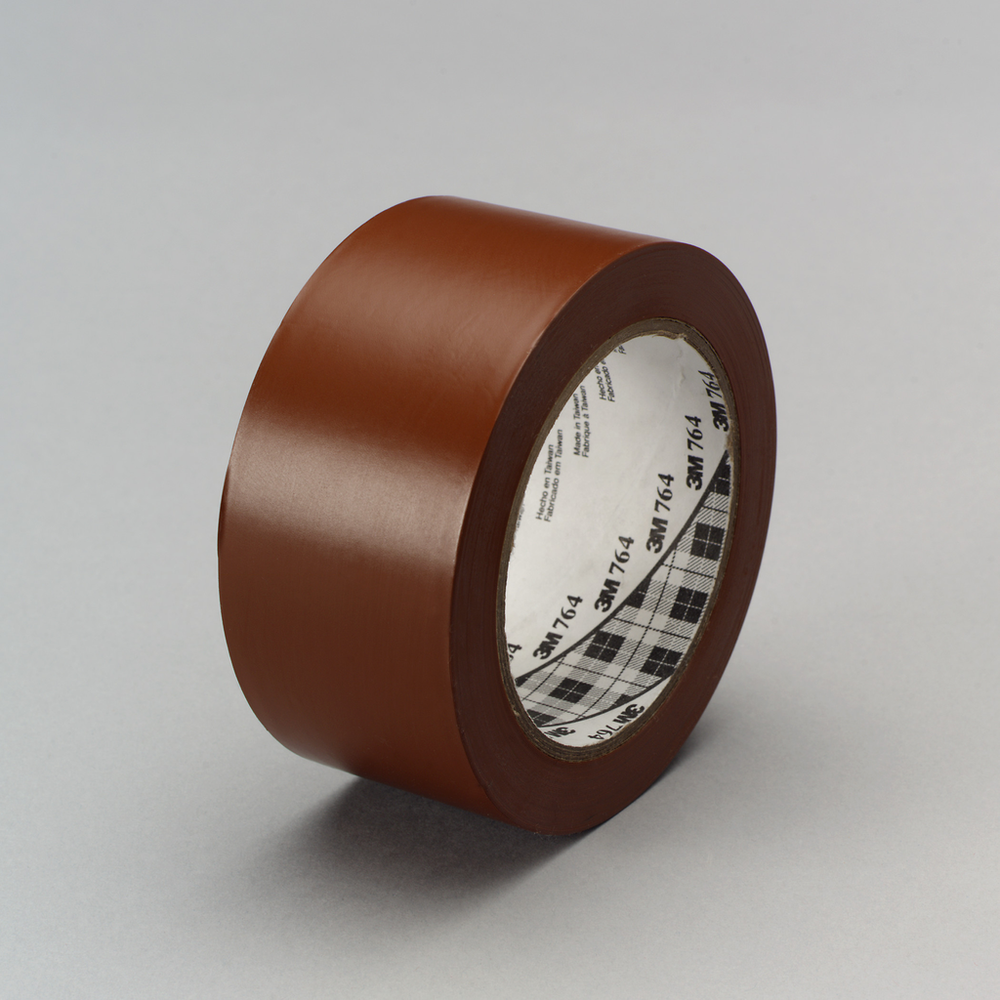

3M™ General Purpose Vinyl Tape 764, Brown, 49 in x 36 yd, 5 mil, 3 Roll/Case, Plastic Core - 7100044469

Sold As: 18-Pack
SKU: 7100044469
MPN: 7100044469
Made to Order: For a lead time estimate, please send your request to [email protected]
UPC: 00048011581293
3M ID: 70006403896
5 Digit UPC: 58129
$3,714.74 ($206.37 / Count)
Hurry up! Current stock:

Product Description

3M™ General Purpose Vinyl and Hazard Marking Tapes 764 are the cost-effective choice for a variety of safety marking and color coding applications where you don’t see tough conditions or the need for long term clean removal. Conformability, instant adhesion and easy unwind make these tapes ideal for marking equipment, walls and pipes. Designed with unique stretch properties, this vinyl tape conforms to rough, irregular, curved and convex surfaces while remaining stretched and without lifting after application. The rubber adhesive offers quick stick and excellent holding strength on many substrates. It also maintains its color when exposed to abrasion, wear and many solvents. Using 3M™ Vinyl 764 Tape is a faster, more versatile and less costly option than painting, which often requires ventilation and time-consuming prep and clean-up processes. Recommended applications include floor marking; general purpose holding and bundling; color coding; marking of parts or machines; temporary protection of parts, equipment or products from abrasion; and decorating.

Features

  • VIVID COLOR: A wide variety of colors helps markup floors and protect surfaces with color-coded efficiency
  • ECONOMICAL FLOOR MARKING: Cost-effective option for color coding and safety marking applications
  • TAPE YOUR WAY: This tape establishes a powerful bond whether you apply it by hand or with the 3M™ Lane Marking Applicator M1
  • INSTANT ADHESION: Rubber adhesive bonds immediately to a variety of surfaces
  • HIGH CONFORMABILITY: Strong, flexible backing is ideal for use on curved and irregular surfaces
Spec Sheet



Downloads

Specifications

Shelf Life547
Country of OriginTaiwan
Maximum Operating Temperature (Celsius)29.0
Minimum Operating Temperature (Celsius)16.0
Tensile Strength (Metric) UOMN/100mm
Overall Width (Imperial)49.0
IndustriesAutomotive, General Industrial, MRO, Military and Government, Specialty Vehicles, Transportation
Maximum Operating Temperature (Fahrenheit) UOMDegree
Overall Length (Metric) UOMm
Shelf Life in Months (From Date of Manufacture)12.0
Tensile Strength (Imperial) UOMlb/in
Maximum Operating Temperature (Celsius) UOMDegree
Total Tape Thickness without Liner (Metric) UOMmm
Adhesion Strength (Metric) UOMN/100mm
Adhesive MaterialRubber
Back Side Adhesive Thickness (Metric) UOMmm
Product FormRoll
Minimum Operating Temperature (Fahrenheit) UOMDegree
Overall Thickness (Imperial)5.0
Total Tape Thickness without Liner (Metric)0.127
Adhesion Strength (Metric)21.0
Overall Width (Metric) UOMmm
Back Side Adhesive Thickness (Metric)0.1
Minimum Operating Temperature (Fahrenheit)60.0
Overall Length (Metric)32.91
Adhesion Strength18.0
Overall Length (Imperial) UOMyd
Backing (Carrier) MaterialPVC
Units per Case3.0
Units per Case UOMRoll
Shelf Life in Months (From Date of Manufacture) UOMMonths
Total Tape Thickness without Liner (Imperial) UOMmil
Tensile Strength (Metric)228.0
Tensile Strength (Imperial)13.0
Maximum Operating Temperature (Fahrenheit)85.0
Adhesive TypeRubber
Elongation at Break180%
Overall Length (Imperial)36.0
Backing Thickness (Imperial) UOMmil
Overall Width (Imperial) UOMin
Overall Width (Metric)1244.6
Backing Thickness (Metric) UOMmm
Backing Thickness (Metric)0.1
Overall Thickness (Imperial) UOMmil
Total Tape Thickness without Liner (Imperial)5.0
Backing Thickness (Imperial)4.0
Product ColorBrown
ApplicationGeneral Use Vinyl
Minimum Operating Temperature (Celsius) UOMDegree
