3M Products & Supplies

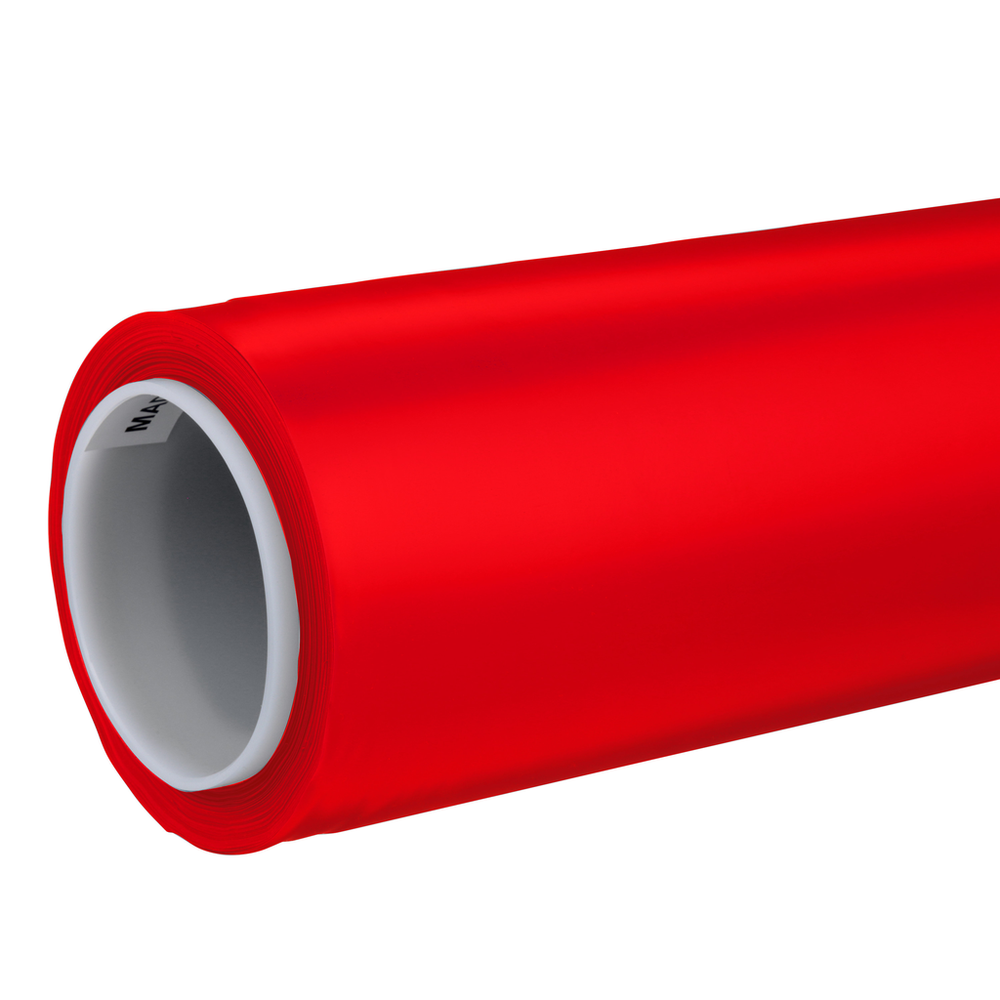

3M™ General Purpose Vinyl Tape 764, Red, 49 in x 36 yd, 5 mil, 3 Roll/Case, Plastic Core - 7000124213

Sold As: 3-Pack
SKU: 7000124213
MPN: 7000124213
For an accurate lead time please contact us
UPC: 00048011580463
3M ID: 70006403128
5 Digit UPC: 58046
$619.12 ($206.37 / Count)
Hurry up! Current stock:

Product Description

3M™ General Purpose Vinyl and Hazard Marking Tapes 764 are the cost-effective choice for a variety of safety marking and color coding applications where you don’t see tough conditions or the need for long term clean removal. Conformability, instant adhesion and easy unwind make these tapes ideal for marking equipment, walls and pipes. Designed with unique stretch properties, this vinyl tape conforms to rough, irregular, curved and convex surfaces while remaining stretched and without lifting after application. The rubber adhesive offers quick stick and excellent holding strength on many substrates. It also maintains its color when exposed to abrasion, wear and many solvents. Using 3M™ Vinyl 764 Tape is a faster, more versatile and less costly option than painting, which often requires ventilation and time-consuming prep and clean-up processes. Recommended applications include floor marking; general purpose holding and bundling; color coding; marking of parts or machines; temporary protection of parts, equipment or products from abrasion; and decorating.

Features

  • HIGH CONFORMABILITY: Strong, flexible backing is ideal for use on curved and irregular surfaces
  • VIVID COLOR: A wide variety of colors helps markup floors and protect surfaces with color-coded efficiency
  • TAPE YOUR WAY: This tape establishes a powerful bond whether you apply it by hand or with the 3M™ Lane Marking Applicator M1
  • ECONOMICAL FLOOR MARKING: Cost-effective option for color coding and safety marking applications
  • INSTANT ADHESION: Rubber adhesive bonds immediately to a variety of surfaces
Spec Sheet



Downloads

Specifications

Shelf Life547
Country of OriginTaiwan
Elongation at Break180%
Overall Length (Metric) UOMm
Overall Length (Imperial)36.0
Back Side Adhesive Thickness (Metric)0.1
Overall Length (Metric)32.91
Backing Thickness (Metric) UOMmm
Adhesion Strength (Metric) UOMN/100mm
Overall Width (Imperial) UOMin
Backing Thickness (Metric)0.1
Minimum Operating Temperature (Celsius) UOMDegree
Shelf Life in Months (From Date of Manufacture) UOMMonths
Shelf Life in Months (From Date of Manufacture)12.0
IndustriesAutomotive, General Industrial, MRO, Military and Government, Specialty Vehicles, Transportation
Total Tape Thickness without Liner (Metric)0.127
Overall Length (Imperial) UOMyd
Maximum Operating Temperature (Fahrenheit)85.0
Overall Thickness (Imperial) UOMmil
Adhesion Strength (Metric)21.0
Tensile Strength (Metric)228.0
Overall Thickness (Imperial)5.0
Back Side Adhesive Thickness (Metric) UOMmm
Backing Thickness (Imperial)4.0
Tensile Strength (Imperial)13.0
Overall Width (Metric) UOMmm
Overall Width (Metric)1244.6
Total Tape Thickness without Liner (Imperial) UOMmil
Units per Case UOMRoll
Total Tape Thickness without Liner (Metric) UOMmm
Backing Thickness (Imperial) UOMmil
Maximum Operating Temperature (Celsius)29.0
Overall Width (Imperial)49.0
Total Tape Thickness without Liner (Imperial)5.0
Minimum Operating Temperature (Celsius)16.0
ApplicationGeneral Use Vinyl
Tensile Strength (Metric) UOMN/100mm
Maximum Operating Temperature (Celsius) UOMDegree
Minimum Operating Temperature (Fahrenheit) UOMDegree
Maximum Operating Temperature (Fahrenheit) UOMDegree
Units per Case3.0
Adhesive TypeRubber
Product ColorRed
Adhesive MaterialRubber
Tensile Strength (Imperial) UOMlb/in
Minimum Operating Temperature (Fahrenheit)60.0
Product FormRoll
Adhesion Strength18.0
