3M Products & Supplies

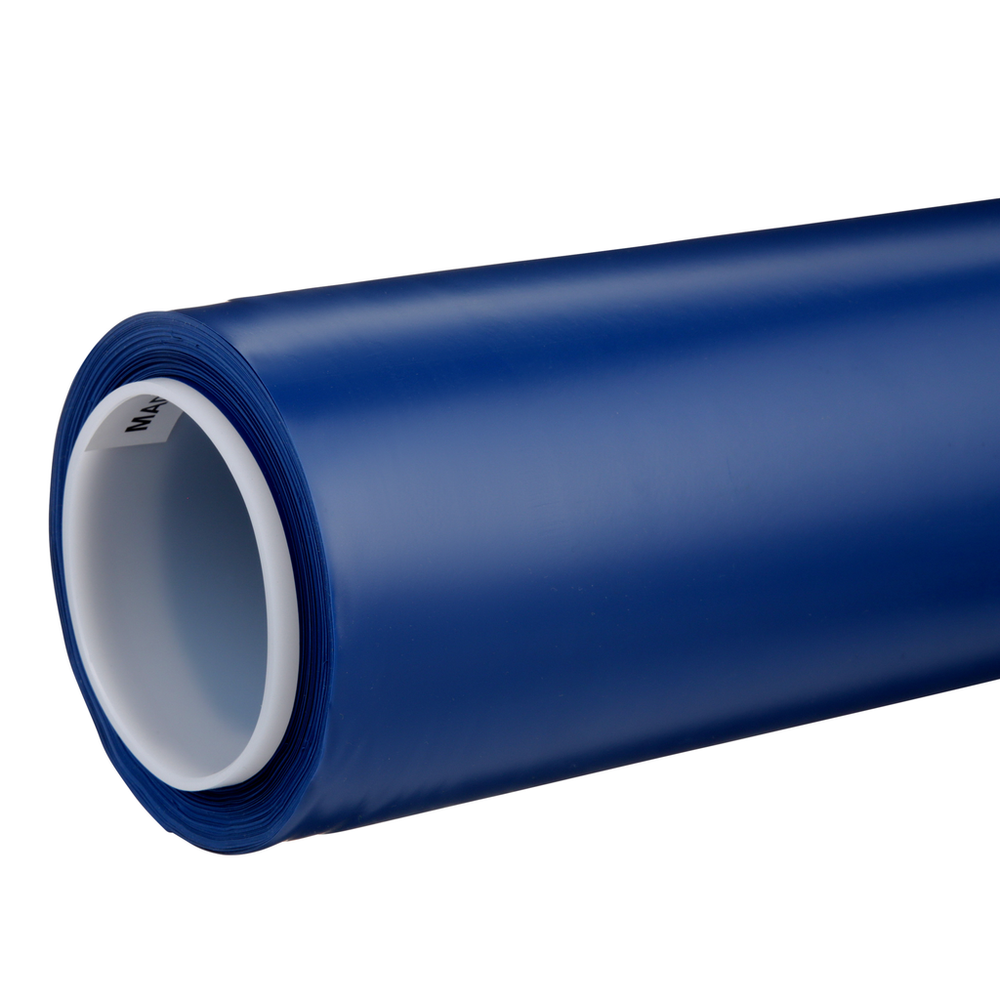

3M™ General Purpose Vinyl Tape 764, Blue, 49 in x 36 yd, 5 mil, 3 Roll/Case, Plastic Core - 7000124222

Sold As: 3-Pack
SKU: 7000124222
MPN: 7000124222
Stock Item: Stock items typically ship within 2-3 business days
UPC: 00048011581248
3M ID: 70006403854
5 Digit UPC: 58124
$619.12 ($206.37 / Count)
Hurry up! Current stock:

Product Description

3M™ General Purpose Vinyl and Hazard Marking Tapes 764 are the cost-effective choice for a variety of safety marking and color coding applications where you don’t see tough conditions or the need for long term clean removal. Conformability, instant adhesion and easy unwind make these tapes ideal for marking equipment, walls and pipes. Designed with unique stretch properties, this vinyl tape conforms to rough, irregular, curved and convex surfaces while remaining stretched and without lifting after application. The rubber adhesive offers quick stick and excellent holding strength on many substrates. It also maintains its color when exposed to abrasion, wear and many solvents. Using 3M™ Vinyl 764 Tape is a faster, more versatile and less costly option than painting, which often requires ventilation and time-consuming prep and clean-up processes. Recommended applications include floor marking; general purpose holding and bundling; color coding; marking of parts or machines; temporary protection of parts, equipment or products from abrasion; and decorating.

Features

  • VIVID COLOR: A wide variety of colors helps markup floors and protect surfaces with color-coded efficiency
  • TAPE YOUR WAY: This tape establishes a powerful bond whether you apply it by hand or with the 3M™ Lane Marking Applicator M1
  • INSTANT ADHESION: Rubber adhesive bonds immediately to a variety of surfaces
  • ECONOMICAL FLOOR MARKING: Cost-effective option for color coding and safety marking applications
  • HIGH CONFORMABILITY: Strong, flexible backing is ideal for use on curved and irregular surfaces
Spec Sheet



Downloads

Specifications

Shelf Life547
Country of OriginTaiwan
Tensile Strength (Imperial)13.0
Units per Case3.0
Product FormRoll
Adhesion Strength (Metric) UOMN/100mm
Adhesive MaterialRubber
Tensile Strength (Imperial) UOMlb/in
Maximum Operating Temperature (Celsius) UOMDegree
Backing (Carrier) MaterialPVC
Minimum Operating Temperature (Celsius)16.0
Overall Width (Imperial)49.0
Overall Length (Imperial)36.0
Overall Thickness (Imperial)5.0
Overall Length (Imperial) UOMyd
Total Tape Thickness without Liner (Imperial) UOMmil
Adhesion Strength18.0
Overall Length (Metric) UOMm
Maximum Operating Temperature (Fahrenheit) UOMDegree
Units per Case UOMRoll
Minimum Operating Temperature (Celsius) UOMDegree
Maximum Operating Temperature (Fahrenheit)85.0
Overall Height (Imperial)5.2
Tensile Strength (Metric) UOMN/100mm
Adhesion Strength (Metric)21.0
Maximum Operating Temperature (Celsius)29.0
Minimum Operating Temperature (Fahrenheit) UOMDegree
Overall Height (Metric) UOMmm
Minimum Operating Temperature (Fahrenheit)60.0
Backing Thickness (Imperial) UOMmil
Adhesive TypeRubber
ApplicationGeneral Use Vinyl
Back Side Adhesive Thickness (Metric) UOMmm
Total Tape Thickness without Liner (Metric) UOMmm
Overall Width (Imperial) UOMin
Overall Height (Metric)0.1
Overall Width (Metric)124.5
Overall Width (Metric) UOMcm
Total Tape Thickness without Liner (Metric)0.127
Overall Thickness (Imperial) UOMmil
Shelf Life in Months (From Date of Manufacture) UOMMonths
Back Side Adhesive Thickness (Metric)0.1
Product ColorBlue
Backing Thickness (Imperial)4.0
Elongation at Break1.8%
Backing Thickness (Metric) UOMmm
Overall Height (Imperial) UOMmil
Overall Length (Metric)32.9
Shelf Life in Months (From Date of Manufacture)18.0
Total Tape Thickness without Liner (Imperial)5.2
Backing Thickness (Metric)0.1
IndustriesAutomotive, General Industrial, MRO, Military and Government, Specialty Vehicles, Transportation
Tensile Strength (Metric)228.0
