3M Products & Supplies

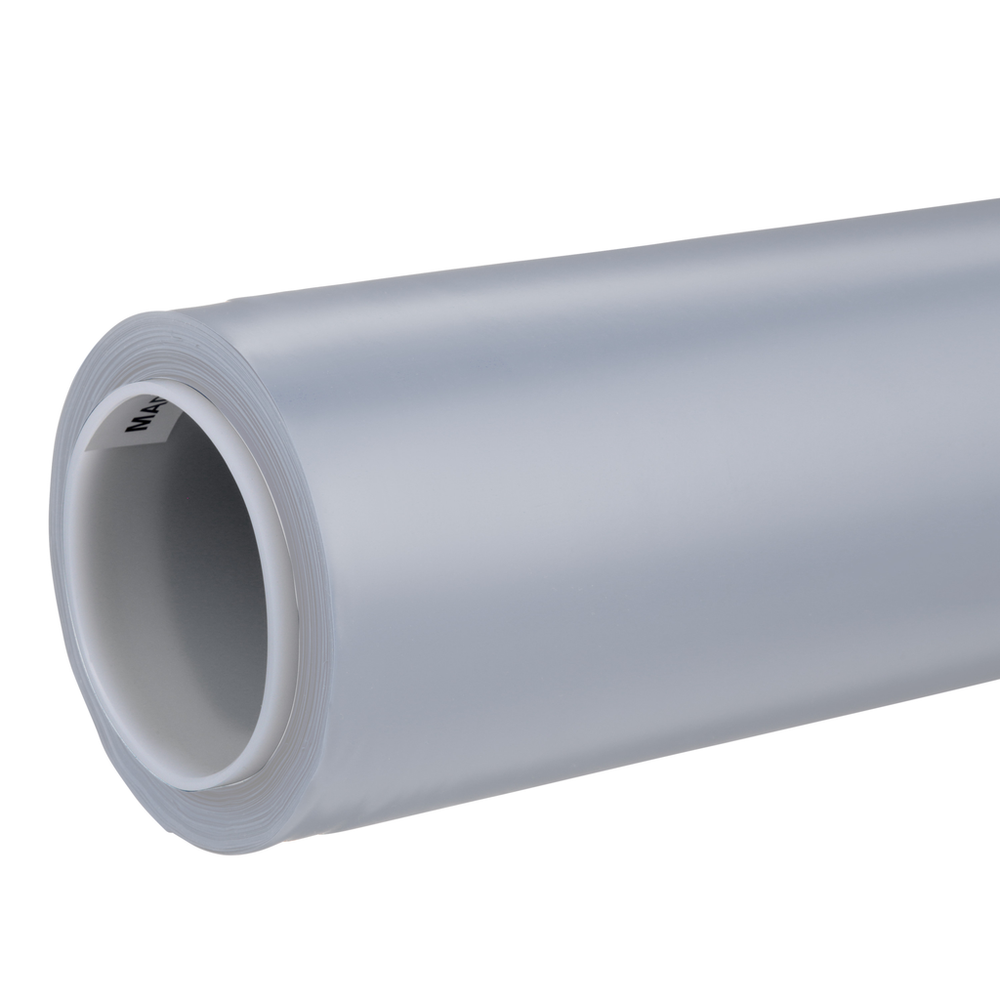

3M™ General Purpose Vinyl Tape 764, Gray, 49 in x 36 yd, 5 mil, 3 Roll/Case, Plastic Core - 7000029011

Sold As: 3-Pack
SKU: 7000029011
MPN: 7000029011
For an accurate lead time please contact us
UPC: 00048011581286
3M ID: 70006403888
5 Digit UPC: 58128
$619.20 ($206.40 / Count)
Hurry up! Current stock:

Product Description

3M™ General Purpose Vinyl and Hazard Marking Tapes 764 are the cost-effective choice for a variety of safety marking and color coding applications where you don’t see tough conditions or the need for long term clean removal. Conformability, instant adhesion and easy unwind make these tapes ideal for marking equipment, walls and pipes. Designed with unique stretch properties, this vinyl tape conforms to rough, irregular, curved and convex surfaces while remaining stretched and without lifting after application. The rubber adhesive offers quick stick and excellent holding strength on many substrates. It also maintains its color when exposed to abrasion, wear and many solvents. Using 3M™ Vinyl 764 Tape is a faster, more versatile and less costly option than painting, which often requires ventilation and time-consuming prep and clean-up processes. Recommended applications include floor marking; general purpose holding and bundling; color coding; marking of parts or machines; temporary protection of parts, equipment or products from abrasion; and decorating.

Features

  • TAPE YOUR WAY: This tape establishes a powerful bond whether you apply it by hand or with the 3M™ Lane Marking Applicator M1
  • INSTANT ADHESION: Rubber adhesive bonds immediately to a variety of surfaces
  • ECONOMICAL FLOOR MARKING: Cost-effective option for color coding and safety marking applications
  • VIVID COLOR: A wide variety of colors helps markup floors and protect surfaces with color-coded efficiency
  • HIGH CONFORMABILITY: Strong, flexible backing is ideal for use on curved and irregular surfaces
Spec Sheet



Downloads

Specifications

Shelf Life547
Country of OriginTaiwan
Tensile Strength (Metric) UOMN/100mm
Elongation at Break180%
Overall Width (Metric) UOMmm
ApplicationGeneral Use Vinyl
Adhesive MaterialRubber
Overall Length (Metric)32.91
Total Tape Thickness without Liner (Imperial) UOMmil
Backing Thickness (Imperial) UOMmil
Minimum Operating Temperature (Fahrenheit) UOMDegree
Adhesion Strength18.0
Adhesion Strength (Metric)21.0
Units per Case3.0
Maximum Operating Temperature (Celsius)29.0
IndustriesAutomotive, General Industrial, MRO, Military and Government, Specialty Vehicles, Transportation
Product ColorGray
Tensile Strength (Imperial) UOMlb/in
Maximum Operating Temperature (Fahrenheit) UOMDegree
Overall Width (Metric)1244.6
Shelf Life in Months (From Date of Manufacture)18.0
Backing Thickness (Metric) UOMmm
Adhesion Strength (Metric) UOMN/100mm
Total Tape Thickness without Liner (Metric) UOMmm
Overall Thickness (Imperial) UOMmil
Tensile Strength (Imperial)13.0
Maximum Operating Temperature (Fahrenheit)85.0
Product FormRoll
Total Tape Thickness without Liner (Metric)0.127
Minimum Operating Temperature (Fahrenheit)60.0
Back Side Adhesive Thickness (Metric)0.1
Back Side Adhesive Thickness (Metric) UOMmm
Adhesive TypeRubber
Tensile Strength (Metric)228.0
Overall Length (Imperial) UOMyd
Total Tape Thickness without Liner (Imperial)5.0
Maximum Operating Temperature (Celsius) UOMDegree
Overall Length (Imperial)36.0
Units per Case UOMRoll
Backing Thickness (Metric)0.1
Overall Width (Imperial) UOMin
Overall Thickness (Imperial)5.0
Minimum Operating Temperature (Celsius) UOMDegree
Shelf Life in Months (From Date of Manufacture) UOMMonths
Backing Thickness (Imperial)4.0
Overall Length (Metric) UOMm
Minimum Operating Temperature (Celsius)16.0
Overall Width (Imperial)49.0
