3M Products & Supplies

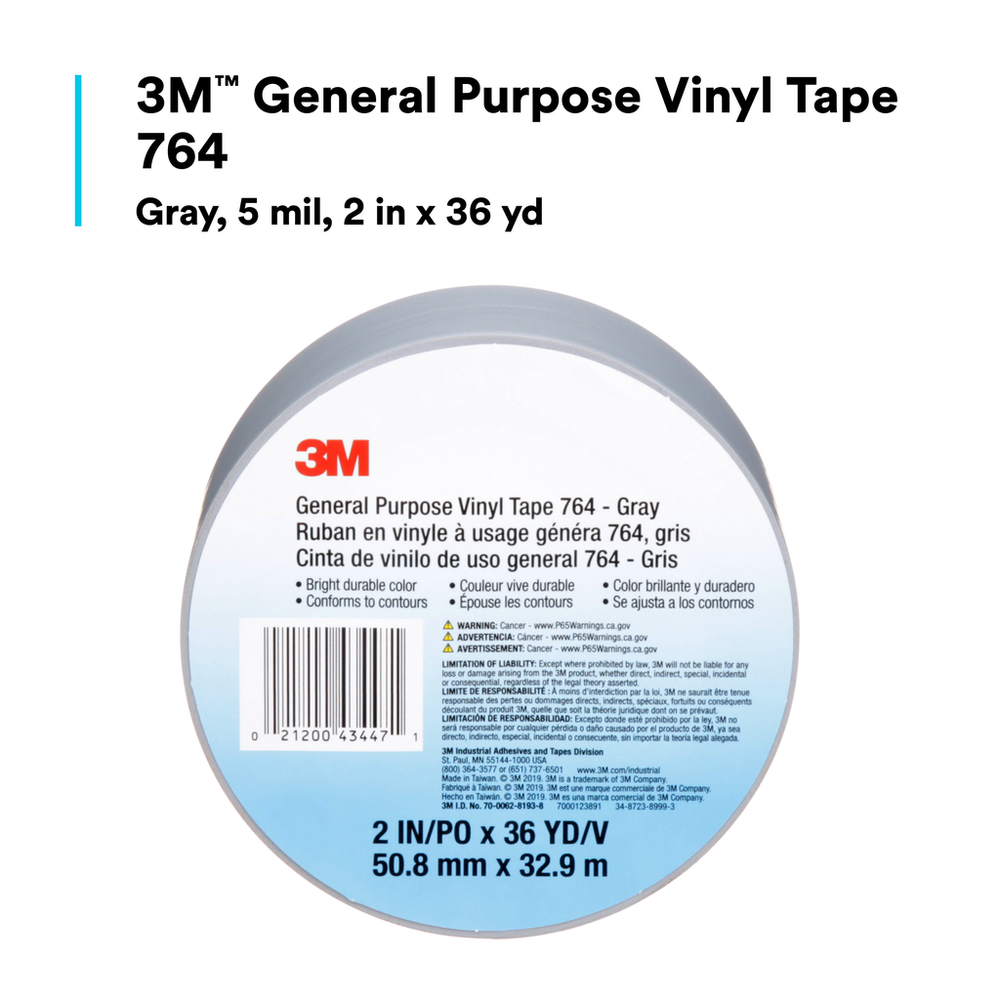

3M™ General Purpose Vinyl Tape 764, Gray, 2 in x 36 yd, 5 mil, 24 Roll/Case, Individually Wrapped Conveniently Packaged - 7000123891

Sold As: 24-Pack
SKU: 7000123891
MPN: 7000123891
For an accurate lead time please contact us
UPC: 00021200434471
3M ID: 70006281938
5 Digit UPC: 43447
$202.22 ($8.43 / Count)
Hurry up! Current stock:

Product Description

3M™ General Purpose Vinyl and Hazard Marking Tapes 764 are the cost-effective choice for a variety of safety marking and color coding applications where you don’t see tough conditions or the need for long term clean removal. Conformability, instant adhesion and easy unwind make these tapes ideal for marking equipment, walls and pipes. Designed with unique stretch properties, this vinyl tape conforms to rough, irregular, curved and convex surfaces while remaining stretched and without lifting after application. The rubber adhesive offers quick stick and excellent holding strength on many substrates. It also maintains its color when exposed to abrasion, wear and many solvents. Using 3M™ Vinyl 764 Tape is a faster, more versatile and less costly option than painting, which often requires ventilation and time-consuming prep and clean-up processes. Recommended applications include floor marking; general purpose holding and bundling; color coding; marking of parts or machines; temporary protection of parts, equipment or products from abrasion; and decorating.

Features

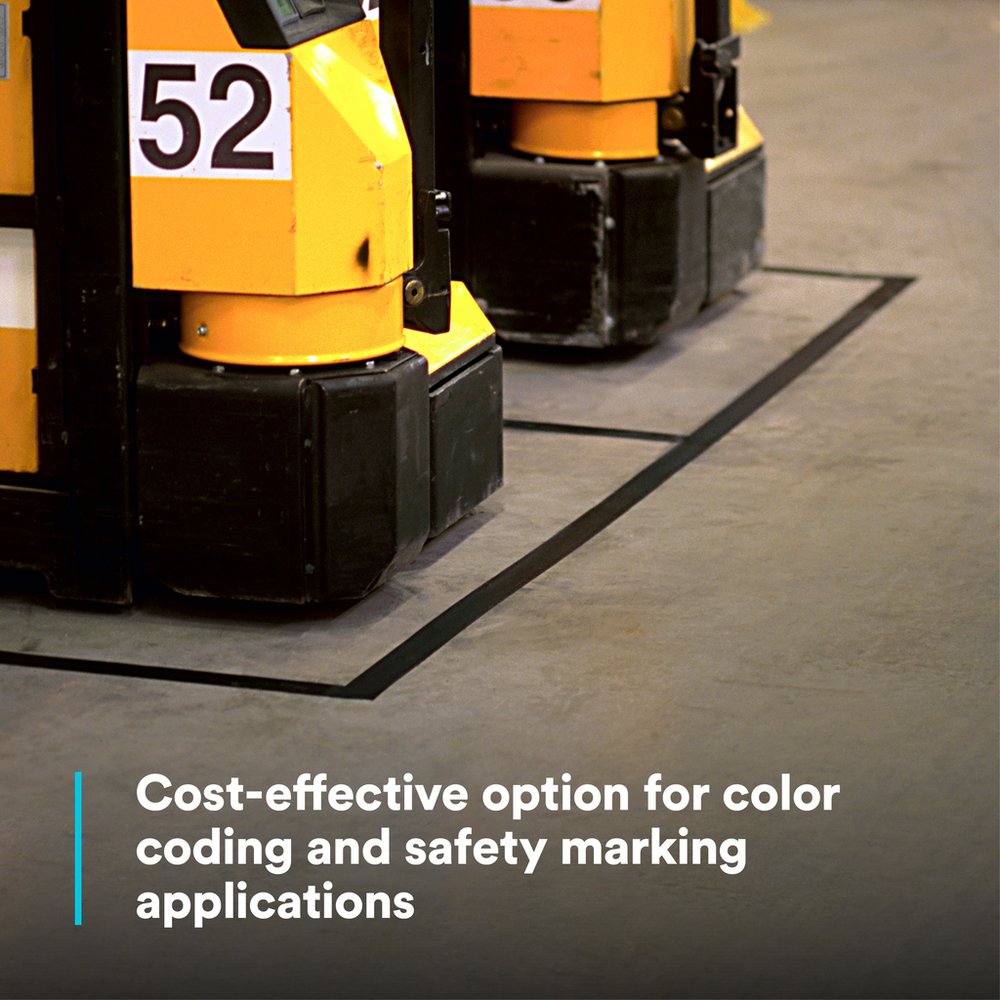

  • ECONOMICAL FLOOR MARKING: Cost-effective option for color coding and safety marking applications
  • VIVID COLOR: A wide variety of colors helps markup floors and protect surfaces with color-coded efficiency
  • TAPE YOUR WAY: This tape establishes a powerful bond whether you apply it by hand or with the 3M™ Lane Marking Applicator M1
  • INSTANT ADHESION: Rubber adhesive bonds immediately to a variety of surfaces
  • HIGH CONFORMABILITY: Strong, flexible backing is ideal for use on curved and irregular surfaces
Spec Sheet



Downloads

Specifications

Shelf Life547
Country of OriginTaiwan
Adhesive TypeRubber
Backing MaterialVinyl
Shelf Life in Months (From Date of Manufacture) UOMMonths
Tensile Strength (Imperial) UOMlb/in
Elongation at Break1.8%
Overall Height (Imperial) UOMmil
ApplicationGeneral Use Vinyl
Tensile Strength (Metric) UOMN/100mm
Backing Thickness (Imperial) UOMmil
Overall Thickness (Imperial)5.0
Overall Length (Imperial) UOMyd
Units per Case24.0
Overall Width (Imperial)2.0
Maximum Operating Temperature (Fahrenheit) UOMDegree
Adhesion Strength (Metric)21.0
Overall Length (Metric)32.9
Overall Length (Imperial)36.0
Overall Width (Metric)5.1
Product FormRoll
Overall Width (Imperial) UOMin
Overall Height (Metric)0.1
Minimum Operating Temperature (Fahrenheit) UOMDegree
Adhesion Strength (Metric) UOMN/100mm
Total Tape Thickness without Liner (Metric) UOMmm
Tensile Strength (Metric)228.0
Minimum Operating Temperature (Celsius)16.0
Overall Thickness (Imperial) UOMmil
Product ColorGray
Total Tape Thickness without Liner (Imperial)5.0
Maximum Operating Temperature (Fahrenheit)85.0
Minimum Operating Temperature (Fahrenheit)60.0
Back Side Adhesive Thickness (Metric)0.1
Backing Thickness (Metric)0.1
Overall Width (Metric) UOMcm
IndustriesAutomotive, General Industrial, MRO, Military and Government, Specialty Vehicles, Transportation
Tensile Strength (Imperial)13.0
Overall Height (Imperial)5.0
Adhesive MaterialRubber
Maximum Operating Temperature (Celsius)29.0
Minimum Operating Temperature (Celsius) UOMDegree
Overall Height (Metric) UOMmm
Backing (Carrier) MaterialPVC
Shelf Life in Months (From Date of Manufacture)18.0
Total Tape Thickness without Liner (Imperial) UOMmil
Backing Thickness (Metric) UOMmm
Overall Length (Metric) UOMm
Total Tape Thickness without Liner (Metric)0.127
Maximum Operating Temperature (Celsius) UOMDegree
Units per Case UOMRoll
Backing Thickness (Imperial)4.0
Back Side Adhesive Thickness (Metric) UOMmm
Adhesion Strength18.0
