3M Products & Supplies

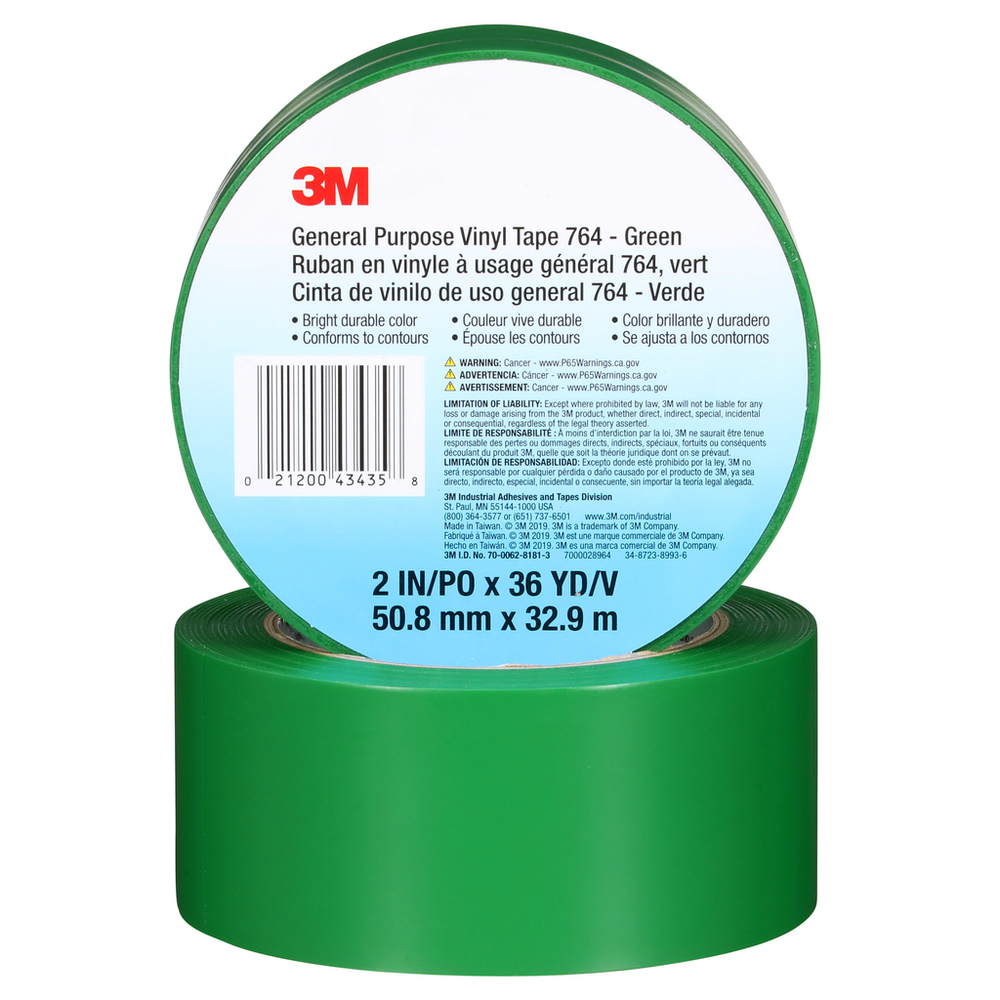

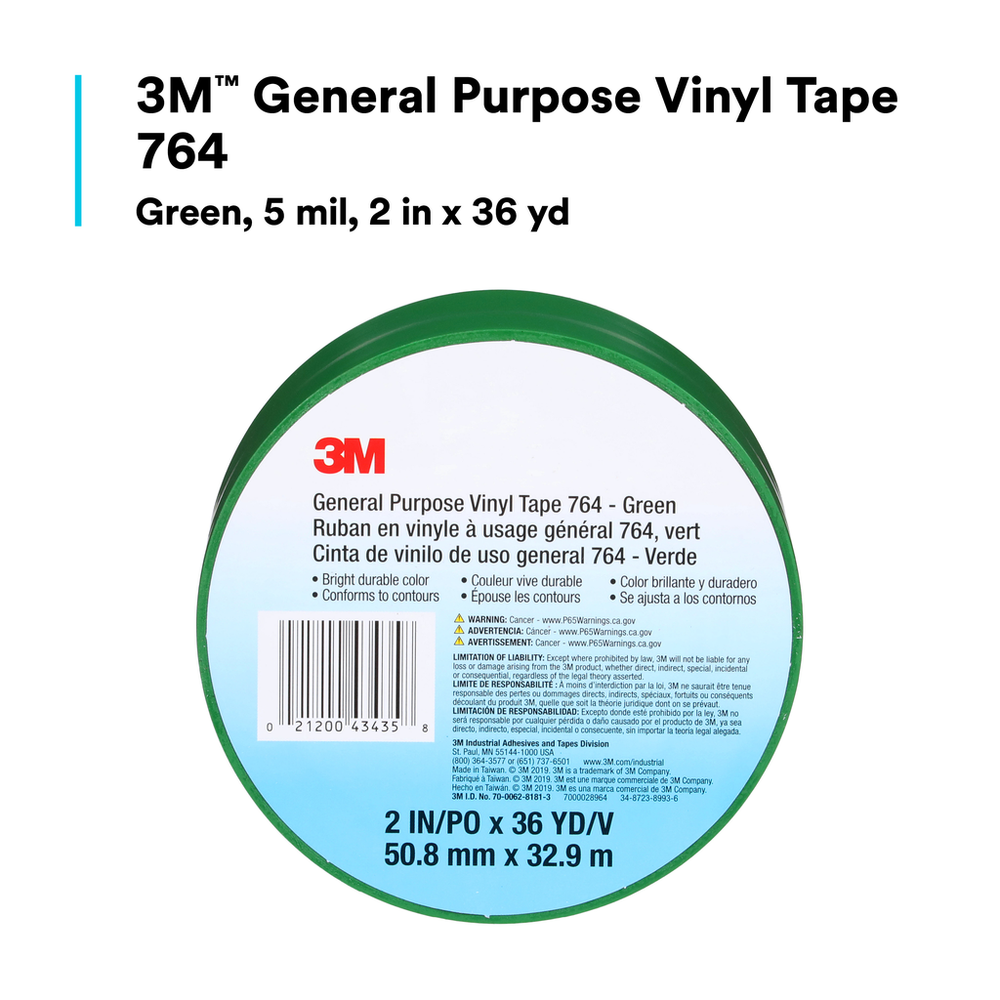

3M™ General Purpose Vinyl Tape 764, Green, 2 in x 36 yd, 5 mil, 24 Roll/Case, Individually Wrapped Conveniently Packaged - 7000028964

Sold As: 24-Pack
SKU: 7000028964
MPN: 7000028964
For an accurate lead time please contact us
UPC: 00021200434358
3M ID: 70006281813
5 Digit UPC: 43435
$202.22 ($8.43 / Count)
Hurry up! Current stock:

Product Description

3M™ General Purpose Vinyl and Hazard Marking Tapes 764 are the cost-effective choice for a variety of safety marking and color coding applications where you don’t see tough conditions or the need for long term clean removal. Conformability, instant adhesion and easy unwind make these tapes ideal for marking equipment, walls and pipes. Designed with unique stretch properties, this vinyl tape conforms to rough, irregular, curved and convex surfaces while remaining stretched and without lifting after application. The rubber adhesive offers quick stick and excellent holding strength on many substrates. It also maintains its color when exposed to abrasion, wear and many solvents. Using 3M™ Vinyl 764 Tape is a faster, more versatile and less costly option than painting, which often requires ventilation and time-consuming prep and clean-up processes. Recommended applications include floor marking; general purpose holding and bundling; color coding; marking of parts or machines; temporary protection of parts, equipment or products from abrasion; and decorating.

Features

  • TAPE YOUR WAY: This tape establishes a powerful bond whether you apply it by hand or with the 3M™ Lane Marking Applicator M1
  • INSTANT ADHESION: Rubber adhesive bonds immediately to a variety of surfaces

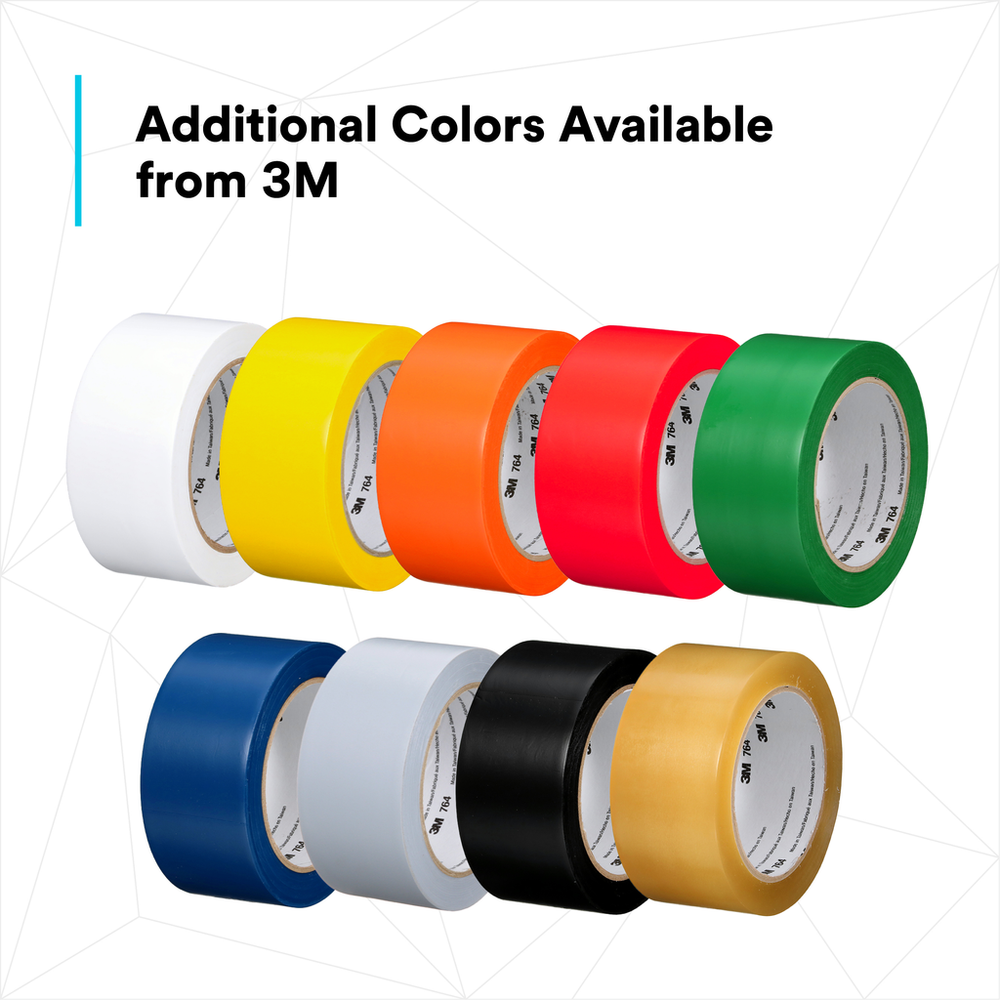

  • VIVID COLOR: A wide variety of colors helps markup floors and protect surfaces with color-coded efficiency
  • ECONOMICAL FLOOR MARKING: Cost-effective option for color coding and safety marking applications
  • HIGH CONFORMABILITY: Strong, flexible backing is ideal for use on curved and irregular surfaces
Spec Sheet



Downloads

Specifications

Shelf Life547
Country of OriginTaiwan
Overall Width (Imperial) UOMin
Tensile Strength (Imperial) UOMlb/in
Total Tape Thickness without Liner (Metric)0.127
Overall Width (Imperial)2.0
Backing Thickness (Metric)0.1
Elongation at Break1.8%
Tensile Strength (Imperial)13.0
Back Side Adhesive Thickness (Metric)0.1
Units per Case UOMRoll
Total Tape Thickness without Liner (Imperial) UOMmil
Backing MaterialVinyl
IndustriesAutomotive, General Industrial, MRO, Military and Government, Specialty Vehicles, Transportation
Overall Width (Metric) UOMmm
Adhesive MaterialRubber
Minimum Operating Temperature (Fahrenheit) UOMDegree
Overall Length (Imperial) UOMyd
Overall Height (Metric) UOMmm
Maximum Operating Temperature (Celsius) UOMDegree
Overall Thickness (Imperial) UOMmil
Backing Thickness (Metric) UOMmm
Back Side Adhesive Thickness (Metric) UOMmm
Units per Case24.0
Overall Length (Metric)32.9
Tensile Strength (Metric) UOMN/100mm
Maximum Operating Temperature (Celsius)29.0
Adhesive TypeRubber
Minimum Operating Temperature (Celsius)16.0
Backing (Carrier) MaterialPVC
Shelf Life in Months (From Date of Manufacture)18.0
Adhesion Strength (Metric)21.0
Overall Length (Imperial)36.0
Overall Height (Imperial) UOMmil
Backing Thickness (Imperial) UOMmil
Total Tape Thickness without Liner (Metric) UOMmm
Overall Height (Imperial)5.0
Overall Thickness (Imperial)5.0
Product ColorGreen
Overall Width (Metric)50.8
Overall Height (Metric)0.1
Maximum Operating Temperature (Fahrenheit)85.0
Overall Length (Metric) UOMm
Backing Thickness (Imperial)4.0
Product FormRoll
Tensile Strength (Metric)228.0
Adhesion Strength18.0
ApplicationGeneral Use Vinyl
Shelf Life in Months (From Date of Manufacture) UOMMonths
Adhesion Strength (Metric) UOMN/100mm
Minimum Operating Temperature (Celsius) UOMDegree
Maximum Operating Temperature (Fahrenheit) UOMDegree
Total Tape Thickness without Liner (Imperial)5.0
Minimum Operating Temperature (Fahrenheit)60.0
