3M Products & Supplies

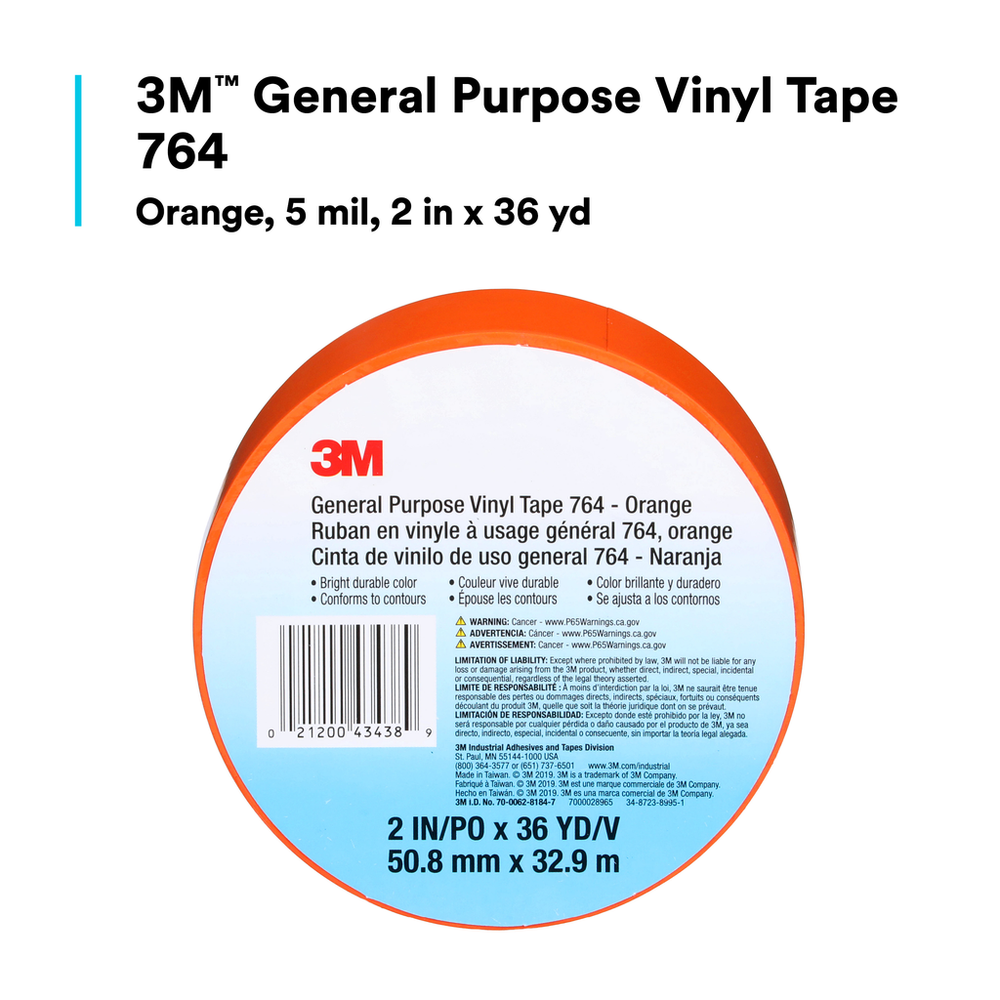

3M™ General Purpose Vinyl Tape 764, Orange, 2 in x 36 yd, 5 mil, 24 Roll/Case, Individually Wrapped Conveniently Packaged - 7000028965

Sold As: 24-Pack
SKU: 7000028965
MPN: 7000028965
Stock Item: Stock items typically ship within 2-3 business days
UPC: 00021200434389
3M ID: 70006281847
5 Digit UPC: 43438
$202.22 ($8.43 / Count)
Hurry up! Current stock:

Product Description

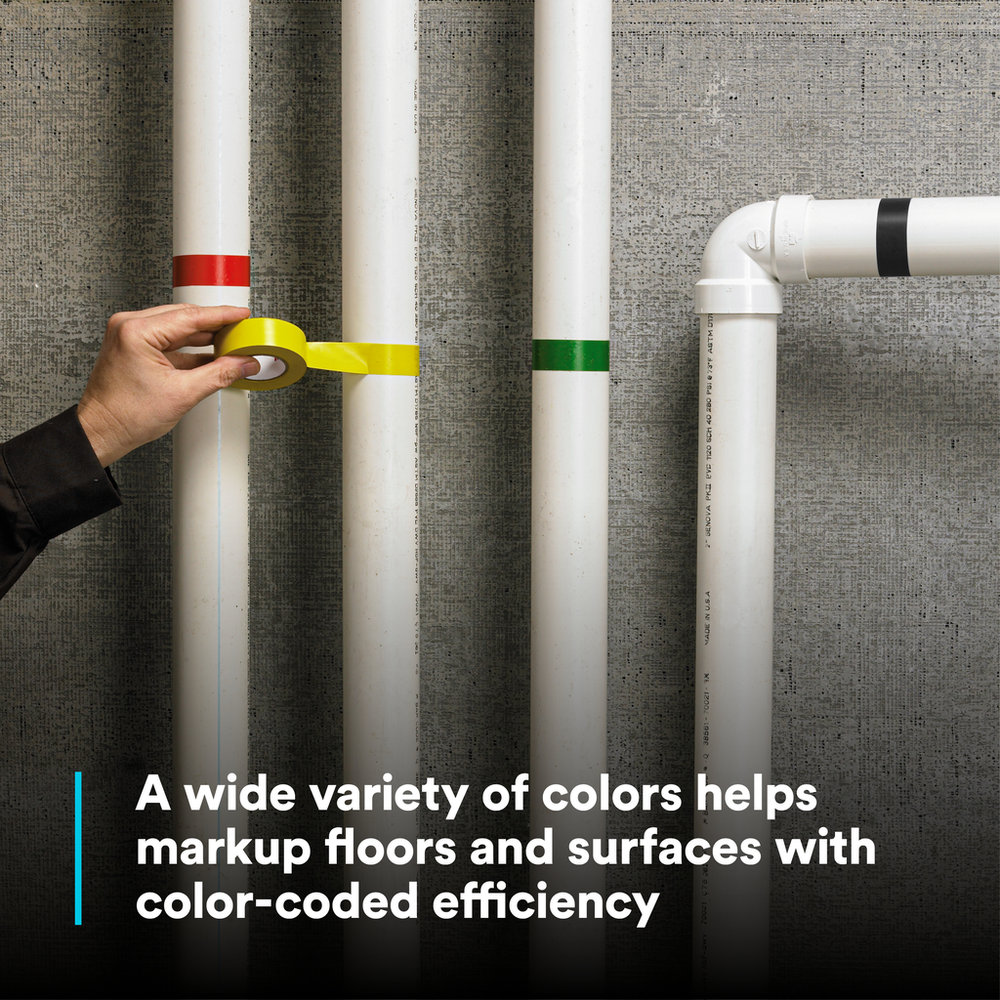

3M™ General Purpose Vinyl and Hazard Marking Tapes 764 are the cost-effective choice for a variety of safety marking and color coding applications where you don’t see tough conditions or the need for long term clean removal. Conformability, instant adhesion and easy unwind make these tapes ideal for marking equipment, walls and pipes. Designed with unique stretch properties, this vinyl tape conforms to rough, irregular, curved and convex surfaces while remaining stretched and without lifting after application. The rubber adhesive offers quick stick and excellent holding strength on many substrates. It also maintains its color when exposed to abrasion, wear and many solvents. Using 3M™ Vinyl 764 Tape is a faster, more versatile and less costly option than painting, which often requires ventilation and time-consuming prep and clean-up processes. Recommended applications include floor marking; general purpose holding and bundling; color coding; marking of parts or machines; temporary protection of parts, equipment or products from abrasion; and decorating.

Features

  • TAPE YOUR WAY: This tape establishes a powerful bond whether you apply it by hand or with the 3M™ Lane Marking Applicator M1
  • ECONOMICAL FLOOR MARKING: Cost-effective option for color coding and safety marking applications

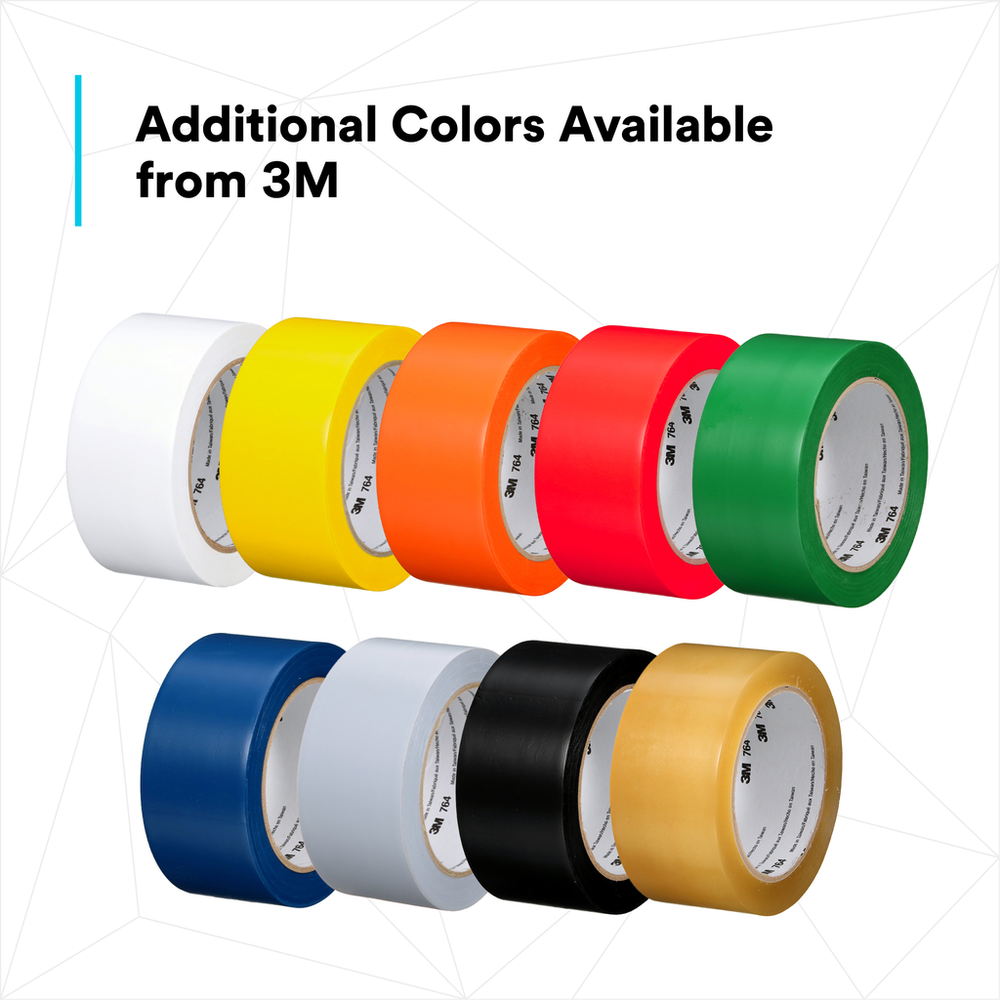

  • VIVID COLOR: A wide variety of colors helps markup floors and protect surfaces with color-coded efficiency
  • INSTANT ADHESION: Rubber adhesive bonds immediately to a variety of surfaces
  • HIGH CONFORMABILITY: Strong, flexible backing is ideal for use on curved and irregular surfaces
Spec Sheet



Downloads

Specifications

Shelf Life547
Country of OriginTaiwan
Overall Width (Metric)50.8
Tensile Strength (Imperial) UOMlb/in
Tensile Strength (Imperial)13.0
Total Tape Thickness without Liner (Metric)0.127
Overall Length (Imperial) UOMyd
Backing MaterialVinyl
Elongation at Break1.8%
IndustriesAutomotive, General Industrial, MRO, Military and Government, Specialty Vehicles, Transportation
Product ColorOrange
Backing Thickness (Metric) UOMmm
Tensile Strength (Metric)228.0
Units per Case UOMRoll
Adhesion Strength (Metric) UOMN/100mm
Overall Length (Imperial)36.0
Back Side Adhesive Thickness (Metric)0.1
Adhesive TypeRubber
Backing (Carrier) MaterialPVC
ApplicationGeneral Use Vinyl
Overall Height (Imperial)5.0
Total Tape Thickness without Liner (Imperial)5.0
Minimum Operating Temperature (Fahrenheit) UOMDegree
Adhesion Strength18.0
Minimum Operating Temperature (Fahrenheit)60.0
Maximum Operating Temperature (Fahrenheit)85.0
Overall Thickness (Imperial) UOMmil
Shelf Life in Months (From Date of Manufacture) UOMMonths
Maximum Operating Temperature (Celsius)29.0
Overall Height (Imperial) UOMmil
Adhesive MaterialRubber
Backing Thickness (Imperial)4.0
Overall Width (Imperial)2.0
Minimum Operating Temperature (Celsius)16.0
Backing Thickness (Imperial) UOMmil
Adhesion Strength (Metric)21.0
Total Tape Thickness without Liner (Metric) UOMmm
Total Tape Thickness without Liner (Imperial) UOMmil
Shelf Life in Months (From Date of Manufacture)18.0
Overall Width (Metric) UOMmm
Overall Height (Metric) UOMmm
Maximum Operating Temperature (Fahrenheit) UOMDegree
Minimum Operating Temperature (Celsius) UOMDegree
Overall Height (Metric)0.1
Overall Thickness (Imperial)5.0
Units per Case24.0
Maximum Operating Temperature (Celsius) UOMDegree
Overall Length (Metric)32.9
Overall Width (Imperial) UOMin
Back Side Adhesive Thickness (Metric) UOMmm
Backing Thickness (Metric)0.1
Product FormRoll
Tensile Strength (Metric) UOMN/100mm
Overall Length (Metric) UOMm
