3M Products & Supplies

3M™ General Purpose Vinyl Tape 764, Yellow, 3 in x 36 yd, 5 mil, 12 Roll/Case, Individually Wrapped Conveniently Packaged - 7000123864

Sold As: 12-Pack
SKU: 7000123864
MPN: 7000123864
For an accurate lead time please contact us
UPC: 00021200431791
3M ID: 70006279346
5 Digit UPC: 43179
$151.62 ($12.63 / Count)
Hurry up! Current stock:

Product Description

3M™ General Purpose Vinyl and Hazard Marking Tapes 764 are the cost-effective choice for a variety of safety marking and color coding applications where you don’t see tough conditions or the need for long term clean removal. Conformability, instant adhesion and easy unwind make these tapes ideal for marking equipment, walls and pipes. Designed with unique stretch properties, this vinyl tape conforms to rough, irregular, curved and convex surfaces while remaining stretched and without lifting after application. The rubber adhesive offers quick stick and excellent holding strength on many substrates. It also maintains its color when exposed to abrasion, wear and many solvents. Using 3M™ Vinyl 764 Tape is a faster, more versatile and less costly option than painting, which often requires ventilation and time-consuming prep and clean-up processes. Recommended applications include floor marking; general purpose holding and bundling; color coding; marking of parts or machines; temporary protection of parts, equipment or products from abrasion; and decorating.

Features

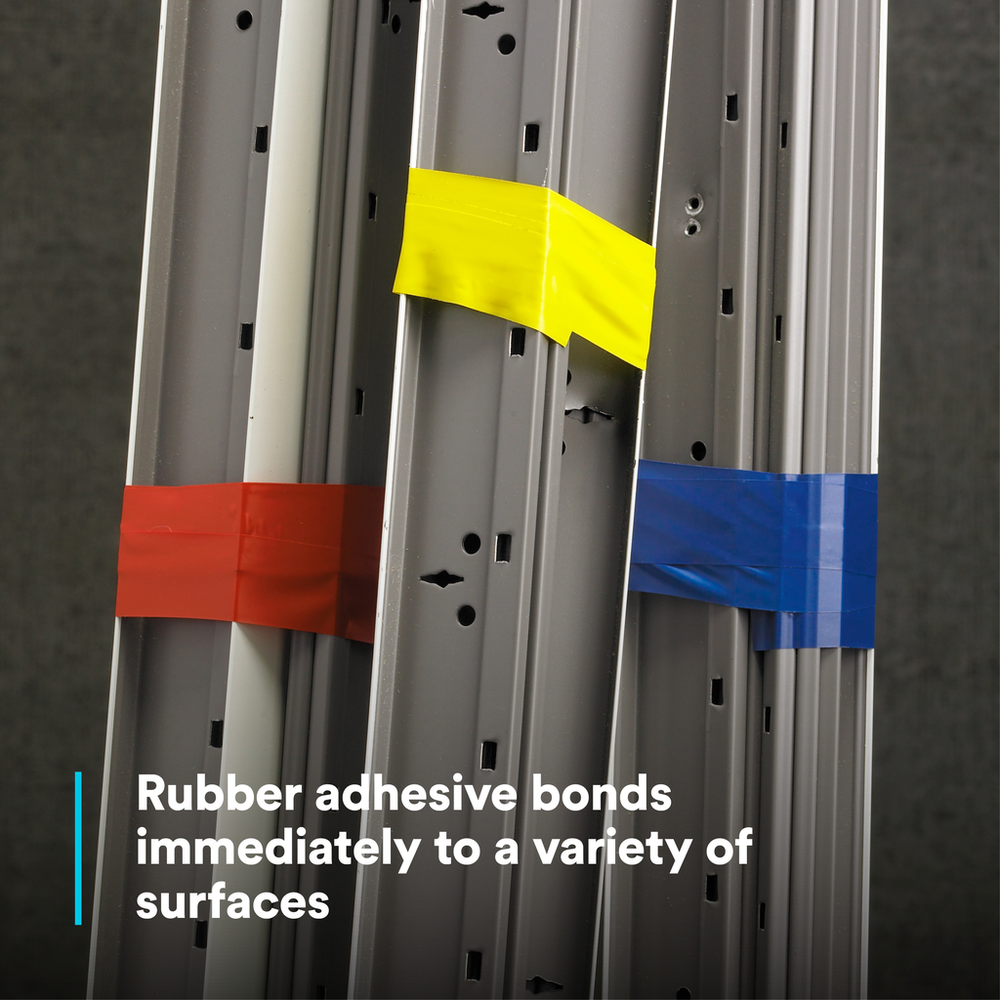

  • INSTANT ADHESION: Rubber adhesive bonds immediately to a variety of surfaces

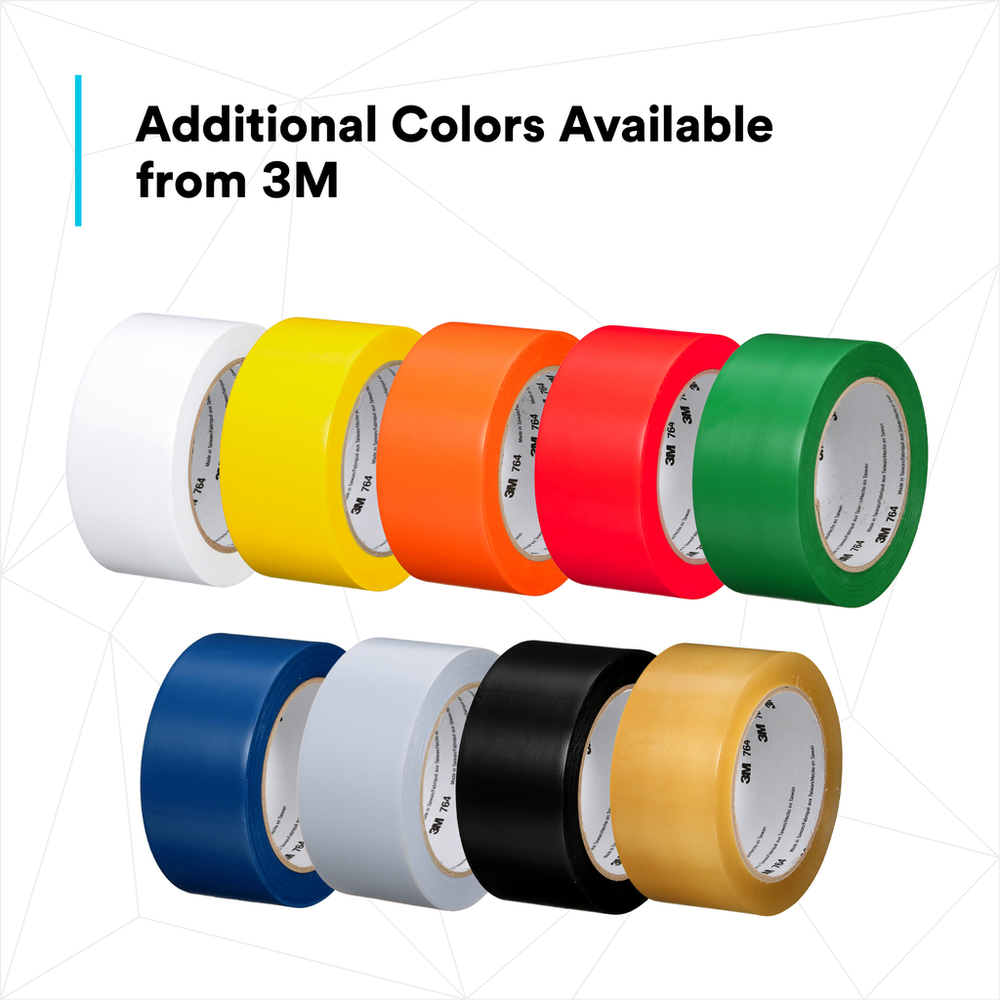

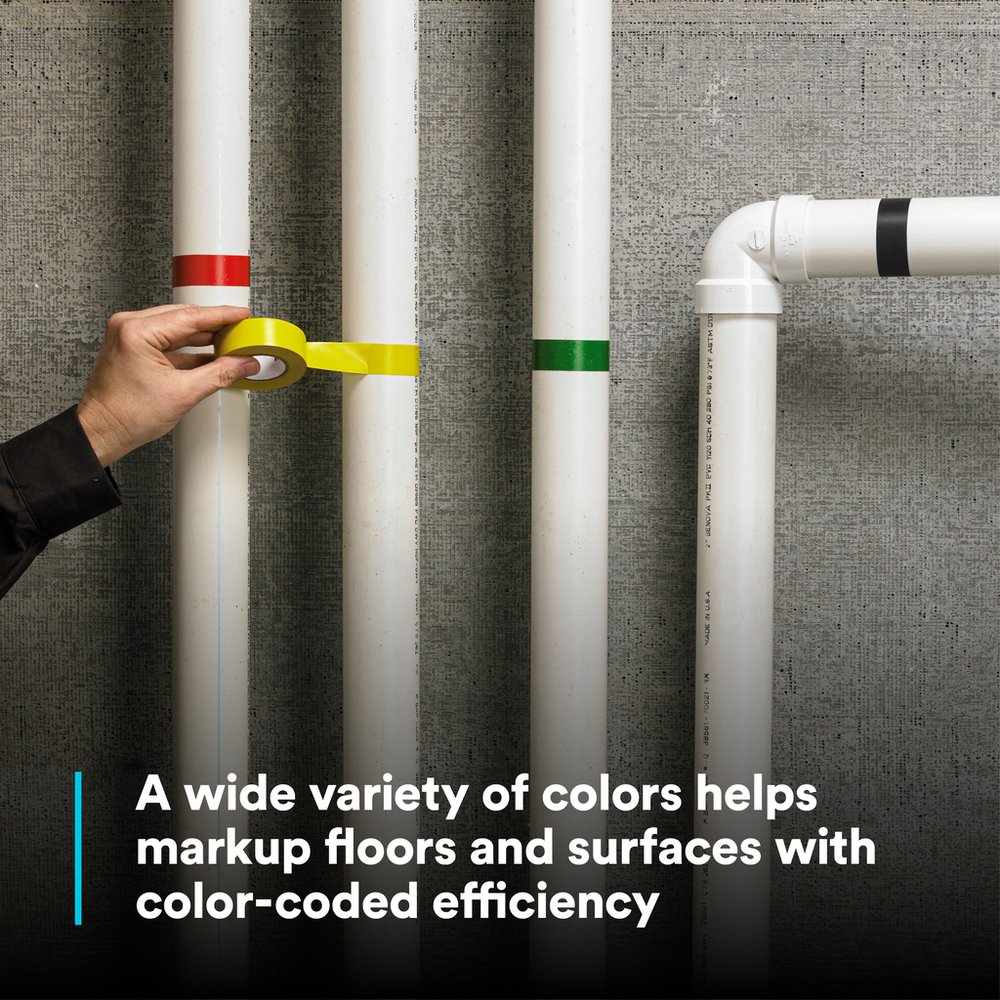

  • VIVID COLOR: A wide variety of colors helps markup floors and protect surfaces with color-coded efficiency
  • HIGH CONFORMABILITY: Strong, flexible backing is ideal for use on curved and irregular surfaces
  • TAPE YOUR WAY: This tape establishes a powerful bond whether you apply it by hand or with the 3M™ Lane Marking Applicator M1
  • ECONOMICAL FLOOR MARKING: Cost-effective option for color coding and safety marking applications
Spec Sheet



Downloads

Specifications

Shelf Life547
Country of OriginTaiwan
Minimum Operating Temperature (Fahrenheit) UOMDegree
Total Tape Thickness without Liner (Imperial)5.0
Maximum Operating Temperature (Fahrenheit) UOMDegree
Minimum Operating Temperature (Celsius)16.0
Minimum Operating Temperature (Fahrenheit)60.0
Overall Height (Imperial) UOMmil
Overall Width (Imperial)3.0
Minimum Operating Temperature (Celsius) UOMDegree
Overall Length (Metric) UOMm
Adhesion Strength (Metric)21.0
Backing Thickness (Metric)0.1
Overall Length (Metric)32.9
Overall Width (Metric)7.6
Overall Width (Metric) UOMcm
Total Tape Thickness without Liner (Imperial) UOMmil
Backing Thickness (Metric) UOMmm
Overall Height (Imperial)5.0
Overall Height (Metric)0.1
Tensile Strength (Metric) UOMN/100mm
ApplicationGeneral Use Vinyl
Back Side Adhesive Thickness (Metric) UOMmm
Maximum Operating Temperature (Fahrenheit)85.0
Tensile Strength (Metric)228.0
IndustriesAutomotive, General Industrial, MRO, Military and Government, Specialty Vehicles, Transportation
Product FormRoll
Overall Thickness (Imperial) UOMmil
Overall Height (Metric) UOMmm
Total Tape Thickness without Liner (Metric)0.127
Backing Thickness (Imperial)4.0
Adhesion Strength (Metric) UOMN/100mm
Elongation at Break1.8%
Overall Length (Imperial)36.0
Adhesive TypeRubber
Total Tape Thickness without Liner (Metric) UOMmm
Product ColorYellow
Tensile Strength (Imperial) UOMlb/in
Units per Case UOMRoll
Backing Thickness (Imperial) UOMmil
Shelf Life in Months (From Date of Manufacture)18.0
Back Side Adhesive Thickness (Metric)0.1
Maximum Operating Temperature (Celsius)29.0
Overall Thickness (Imperial)5.0
Overall Length (Imperial) UOMyd
Shelf Life in Months (From Date of Manufacture) UOMMonths
Backing (Carrier) MaterialPVC
Adhesion Strength18.0
Units per Case12.0
Adhesive MaterialRubber
Maximum Operating Temperature (Celsius) UOMDegree
Overall Width (Imperial) UOMin
Tensile Strength (Imperial)13.0
