3M Products & Supplies

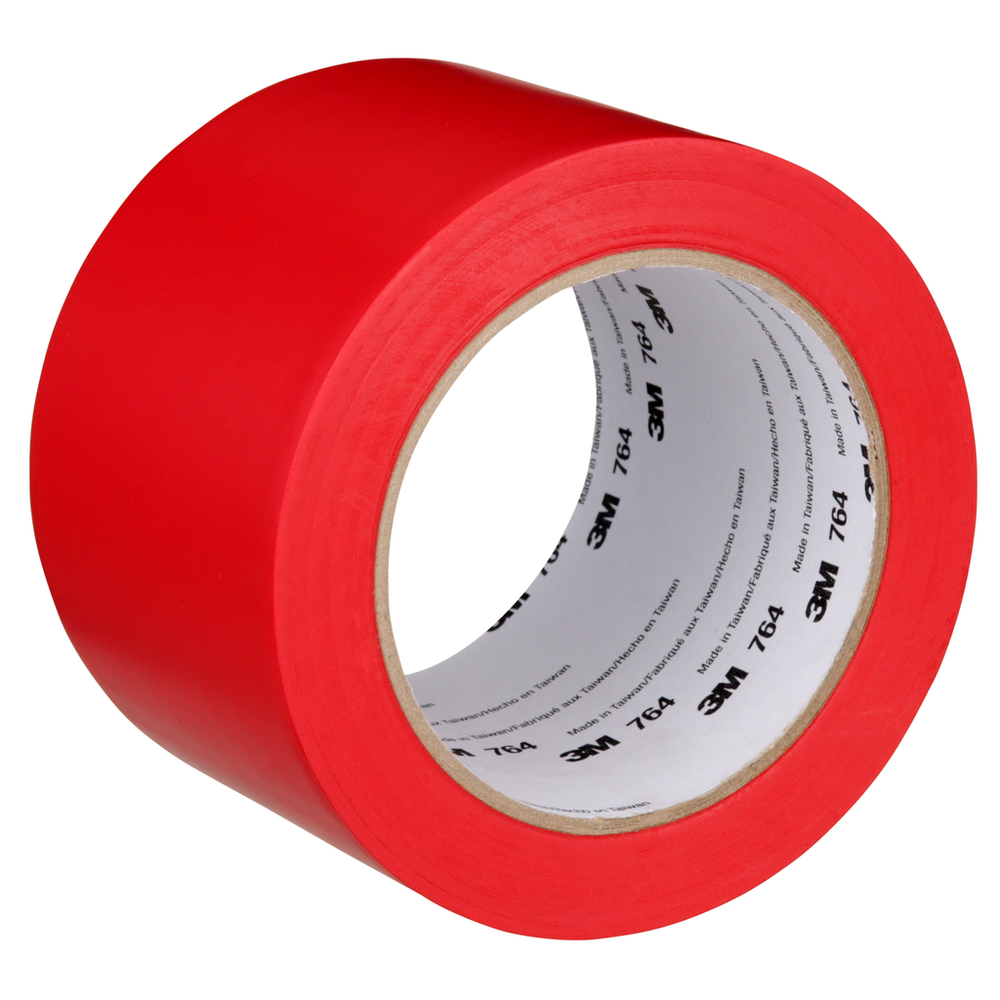

3M™ General Purpose Vinyl Tape 764, Red, 3 in x 36 yd, 5 mil, 12 Roll/Case, Individually Wrapped Conveniently Packaged - 7000123885

Sold As: 12-Pack
SKU: 7000123885
MPN: 7000123885
For an accurate lead time please contact us
UPC: 00021200434266
3M ID: 70006281722
5 Digit UPC: 43426
$151.62 ($12.63 / Count)
Hurry up! Current stock:

Product Description

3M™ General Purpose Vinyl and Hazard Marking Tapes 764 are the cost-effective choice for a variety of safety marking and color coding applications where you don’t see tough conditions or the need for long term clean removal. Conformability, instant adhesion and easy unwind make these tapes ideal for marking equipment, walls and pipes. Designed with unique stretch properties, this vinyl tape conforms to rough, irregular, curved and convex surfaces while remaining stretched and without lifting after application. The rubber adhesive offers quick stick and excellent holding strength on many substrates. It also maintains its color when exposed to abrasion, wear and many solvents. Using 3M™ Vinyl 764 Tape is a faster, more versatile and less costly option than painting, which often requires ventilation and time-consuming prep and clean-up processes. Recommended applications include floor marking; general purpose holding and bundling; color coding; marking of parts or machines; temporary protection of parts, equipment or products from abrasion; and decorating.

Features

  • TAPE YOUR WAY: This tape establishes a powerful bond whether you apply it by hand or with the 3M™ Lane Marking Applicator M1
  • VIVID COLOR: A wide variety of colors helps markup floors and protect surfaces with color-coded efficiency
  • INSTANT ADHESION: Rubber adhesive bonds immediately to a variety of surfaces
  • HIGH CONFORMABILITY: Strong, flexible backing is ideal for use on curved and irregular surfaces
  • ECONOMICAL FLOOR MARKING: Cost-effective option for color coding and safety marking applications
Spec Sheet



Downloads

Specifications

Shelf Life547
Country of OriginTaiwan
Maximum Operating Temperature (Fahrenheit) UOMDegree
Adhesive TypeRubber
Overall Length (Imperial)36.0
Minimum Operating Temperature (Fahrenheit) UOMDegree
Adhesion Strength (Metric)21.0
Adhesive MaterialRubber
Units per Case UOMRoll
Total Tape Thickness without Liner (Imperial)5.0
Backing Thickness (Metric)0.1
Elongation at Break1.8%
Overall Height (Imperial)5.0
Backing Thickness (Imperial)4.0
Overall Length (Metric)32.9
Overall Thickness (Imperial) UOMmil
Minimum Operating Temperature (Fahrenheit)60.0
Total Tape Thickness without Liner (Metric) UOMmm
Backing Thickness (Metric) UOMmm
Tensile Strength (Metric) UOMN/100mm
Minimum Operating Temperature (Celsius)16.0
Tensile Strength (Metric)228.0
Adhesion Strength (Metric) UOMN/100mm
Shelf Life in Months (From Date of Manufacture)18.0
IndustriesAutomotive, General Industrial, MRO, Military and Government, Specialty Vehicles, Transportation
Product FormRoll
Product ColorRed
Overall Width (Metric)7.6
Overall Width (Metric) UOMcm
Backing (Carrier) MaterialPVC
Overall Height (Metric) UOMmm
Tensile Strength (Imperial)13.0
Tensile Strength (Imperial) UOMlb/in
Overall Height (Metric)0.1
Overall Width (Imperial) UOMin
Back Side Adhesive Thickness (Metric) UOMmm
Overall Length (Imperial) UOMyd
Total Tape Thickness without Liner (Imperial) UOMmil
Maximum Operating Temperature (Celsius)29.0
ApplicationGeneral Use Vinyl
Overall Length (Metric) UOMm
Maximum Operating Temperature (Celsius) UOMDegree
Minimum Operating Temperature (Celsius) UOMDegree
Maximum Operating Temperature (Fahrenheit)85.0
Total Tape Thickness without Liner (Metric)0.127
Overall Height (Imperial) UOMmil
Units per Case12.0
Adhesion Strength18.0
Shelf Life in Months (From Date of Manufacture) UOMMonths
Overall Thickness (Imperial)5.0
Back Side Adhesive Thickness (Metric)0.1
Backing Thickness (Imperial) UOMmil
Overall Width (Imperial)3.0
