3M Products & Supplies

3M™ General Purpose Vinyl Tape 764, Red, 1 in x 36 yd, 5 mil, 36 Roll/Case, Individually Wrapped Conveniently Packaged - 7000123883

Sold As: 36-Pack
SKU: 7000123883
MPN: 7000123883
Stock Item: Stock items typically ship within 2-3 business days
UPC: 00021200434242
3M ID: 70006281706
5 Digit UPC: 43424
$151.82 ($4.22 / Count)
Hurry up! Current stock:

Product Description

3M™ General Purpose Vinyl and Hazard Marking Tapes 764 are the cost-effective choice for a variety of safety marking and color coding applications where you don’t see tough conditions or the need for long term clean removal. Conformability, instant adhesion and easy unwind make these tapes ideal for marking equipment, walls and pipes. Designed with unique stretch properties, this vinyl tape conforms to rough, irregular, curved and convex surfaces while remaining stretched and without lifting after application. The rubber adhesive offers quick stick and excellent holding strength on many substrates. It also maintains its color when exposed to abrasion, wear and many solvents. Using 3M™ Vinyl 764 Tape is a faster, more versatile and less costly option than painting, which often requires ventilation and time-consuming prep and clean-up processes. Recommended applications include floor marking; general purpose holding and bundling; color coding; marking of parts or machines; temporary protection of parts, equipment or products from abrasion; and decorating.

Features

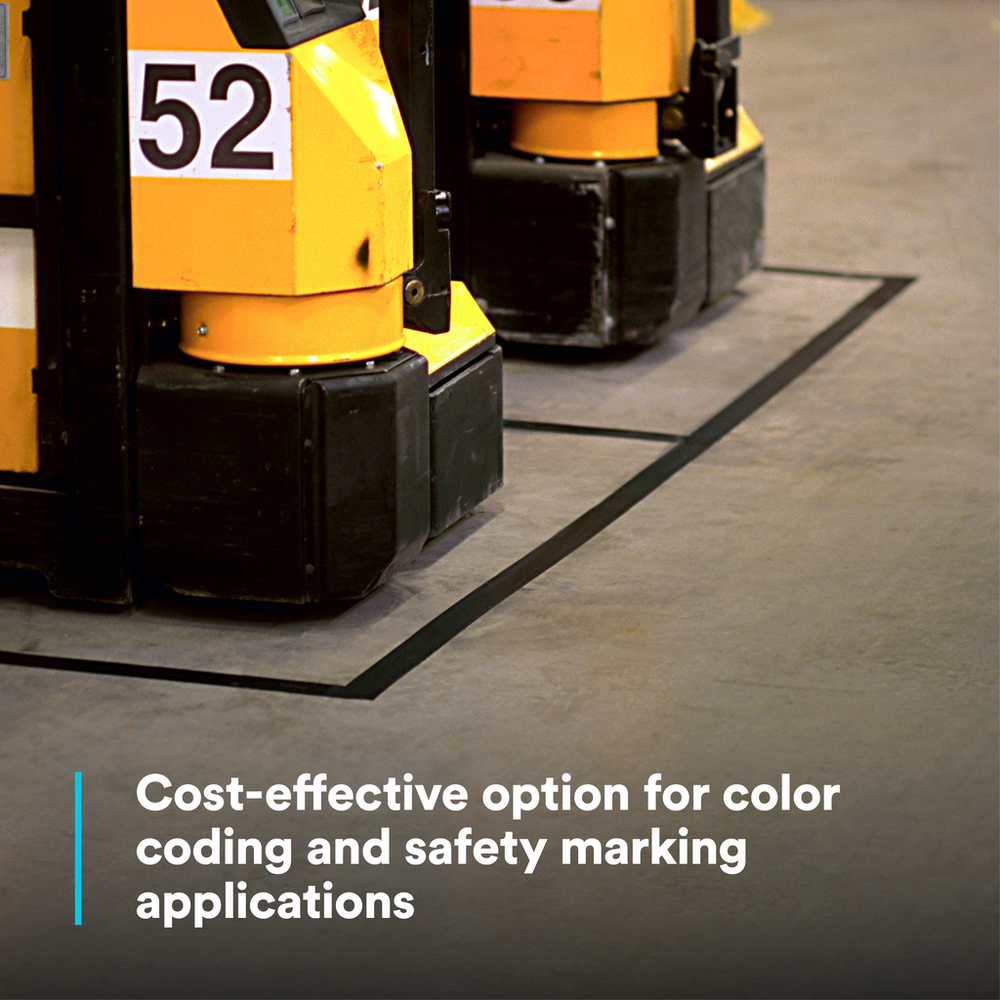

  • ECONOMICAL FLOOR MARKING: Cost-effective option for color coding and safety marking applications

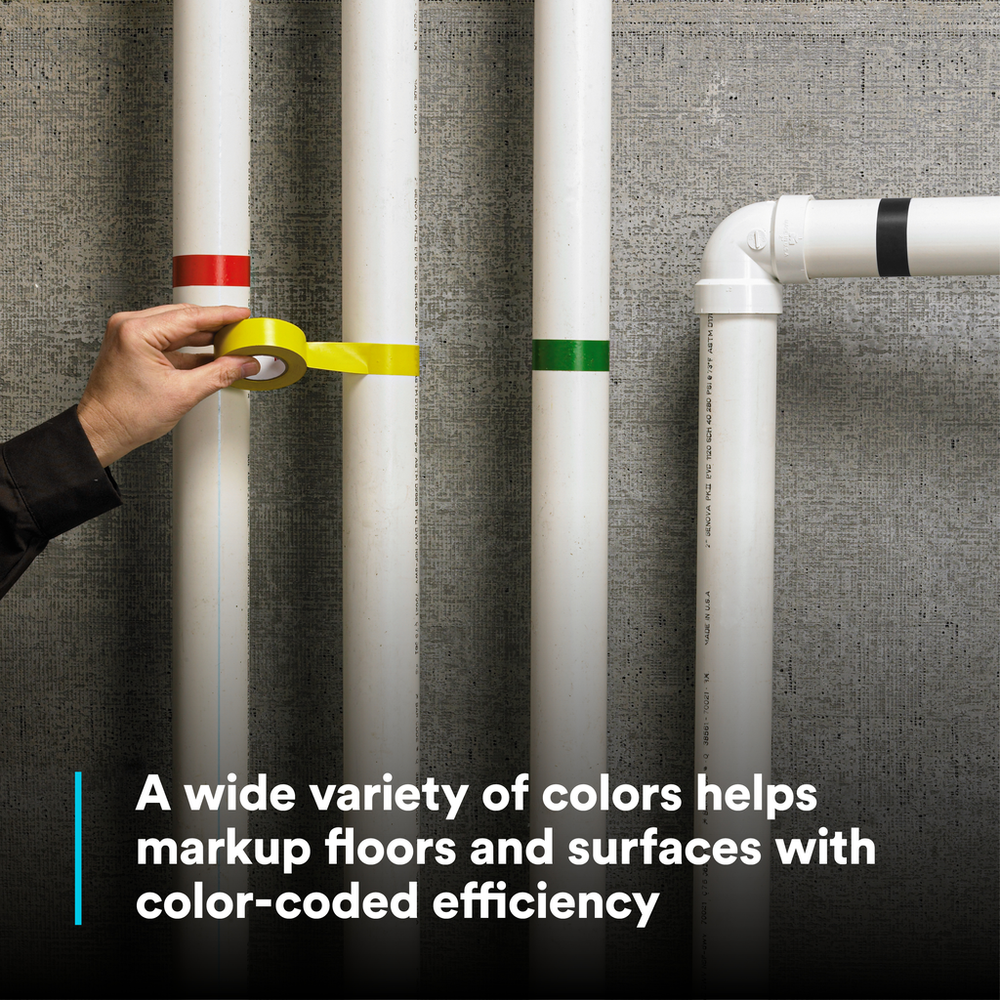

  • VIVID COLOR: A wide variety of colors helps markup floors and protect surfaces with color-coded efficiency
  • INSTANT ADHESION: Rubber adhesive bonds immediately to a variety of surfaces
  • TAPE YOUR WAY: This tape establishes a powerful bond whether you apply it by hand or with the 3M™ Lane Marking Applicator M1
  • HIGH CONFORMABILITY: Strong, flexible backing is ideal for use on curved and irregular surfaces
Spec Sheet



Downloads

Specifications

Shelf Life547
Country of OriginTaiwan
Overall Height (Imperial) UOMmil
Units per Case36.0
Minimum Operating Temperature (Celsius)16.0
Product FormRoll
Adhesion Strength18.0
Backing Thickness (Metric)0.1
Overall Height (Imperial)5.0
Overall Height (Metric) UOMmm
Adhesive TypeRubber
Maximum Operating Temperature (Celsius) UOMDegree
ApplicationGeneral Use Vinyl
Total Tape Thickness without Liner (Imperial) UOMmil
Minimum Operating Temperature (Fahrenheit) UOMDegree
Shelf Life in Months (From Date of Manufacture)18.0
Units per Case UOMRoll
Overall Width (Metric) UOMcm
Back Side Adhesive Thickness (Metric) UOMmm
Overall Thickness (Imperial) UOMmil
Tensile Strength (Metric)228.0
Elongation at Break1.8%
Shelf Life in Months (From Date of Manufacture) UOMMonths
Adhesive MaterialRubber
Total Tape Thickness without Liner (Metric) UOMmm
Adhesion Strength (Metric)21.0
Backing Thickness (Imperial) UOMmil
Overall Height (Metric)0.1
Backing (Carrier) MaterialPVC
Tensile Strength (Imperial) UOMlb/in
Overall Length (Imperial) UOMyd
Overall Length (Imperial)36.0
Backing Thickness (Metric) UOMmm
Total Tape Thickness without Liner (Metric)0.127
Backing Thickness (Imperial)4.0
Total Tape Thickness without Liner (Imperial)5.0
Overall Length (Metric) UOMm
Maximum Operating Temperature (Fahrenheit) UOMDegree
Overall Width (Imperial) UOMin
Overall Length (Metric)32.9
Tensile Strength (Metric) UOMN/100mm
Maximum Operating Temperature (Celsius)29.0
IndustriesAutomotive, General Industrial, MRO, Military and Government, Specialty Vehicles, Transportation
Adhesion Strength (Metric) UOMN/100mm
Product ColorRed
Tensile Strength (Imperial)13.0
Overall Width (Metric)2.5
Minimum Operating Temperature (Celsius) UOMDegree
Overall Width (Imperial)1.0
Overall Thickness (Imperial)5.0
Maximum Operating Temperature (Fahrenheit)85.0
Minimum Operating Temperature (Fahrenheit)60.0
Back Side Adhesive Thickness (Metric)0.1
