3M Products & Supplies

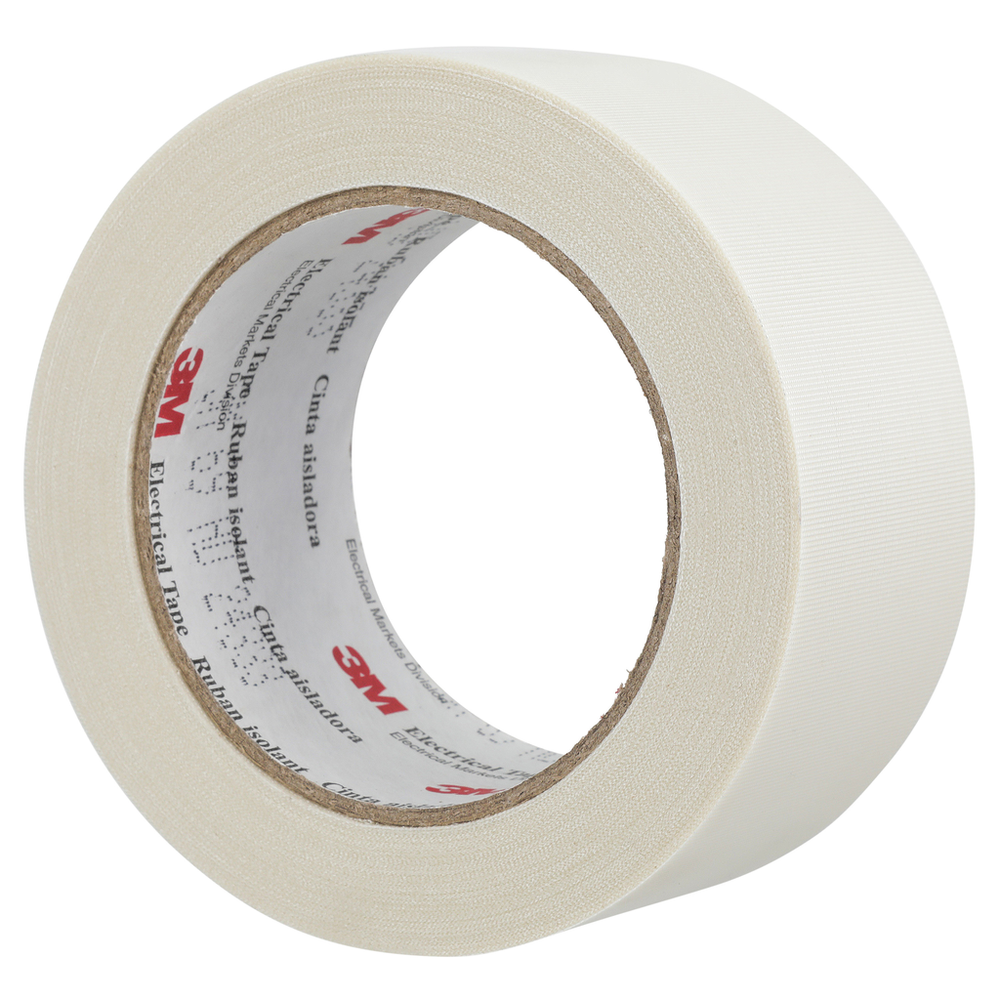

3M™ Glass Cloth Electrical Tape 69, 2 in X 36 yds, Boxed, 3-in paper core, Bulk, 12 Rolls/Case - 7000132699

Sold As: 12-Pack
SKU: 7000132699
MPN: 7000132699
Stock Item: Stock items typically ship within 2-3 business days
UPC: 00051138491994
3M ID: 80610878045
5 Digit UPC: 49199
$1,268.52 ($105.71 / Count)
Hurry up! Current stock:

Product Description

3M™ Glass Cloth Electrical Tape 69 is a white, 0.178 mm (7-mil) thick tape composed of a 0.140 mm (5.5-mil) glass cloth backing coated on one side with a non-corrosive, high-temperature, flame retardant, thermosetting silicone pressure-sensitive adhesive.

Features

  • 5 year shelf-life when stored per 3M recommended conditions
  • UL 200°C (392°F) and CSA 180°C (356°F) temperature ratings
  • Nominal thickness: 0.178 mm (7.0 mil)
  • Pressure-sensitive silicone adhesive with glass cloth backing
  • UL Recognized flame retardant
  • Printable
Spec Sheet



Downloads

Specifications

Shelf Life1825
Country of OriginUnited States
Overall Length (Metric) UOMm
Total Tape Thickness without Liner (Imperial) UOMmil
ApplicationInsulation
Electrolytic Corrosion Factor1.0
Overall Width (Metric)50.8
Adhesive TypeSilicone
Dielectric Strength UOMV
Total Tape Thickness without Liner (Metric)0.178
Overall Length (Imperial) UOMyd
Overall Width (Imperial)2.0
Product MarketsElectrical Equipment Manufacturing
Product ColorWhite
Shelf Life UOMYear
Total Tape Thickness without Liner (Imperial)7.0
Total Tape Thickness without Liner (Metric) UOMmm
Backing (Carrier) MaterialGlass Cloth
Specifications MetCSA, RoHS 2011/65/EU, UL Recognized
Insulation Resistance4.8 x 10^4 megohms
Overall Width (Metric) UOMmm
Overall Length (Imperial)36.0
Overall Length (Metric)33.0
Dielectric Strength3000.0
Tape GradeProfessional
Overall Width (Imperial) UOMin
