3M Products & Supplies

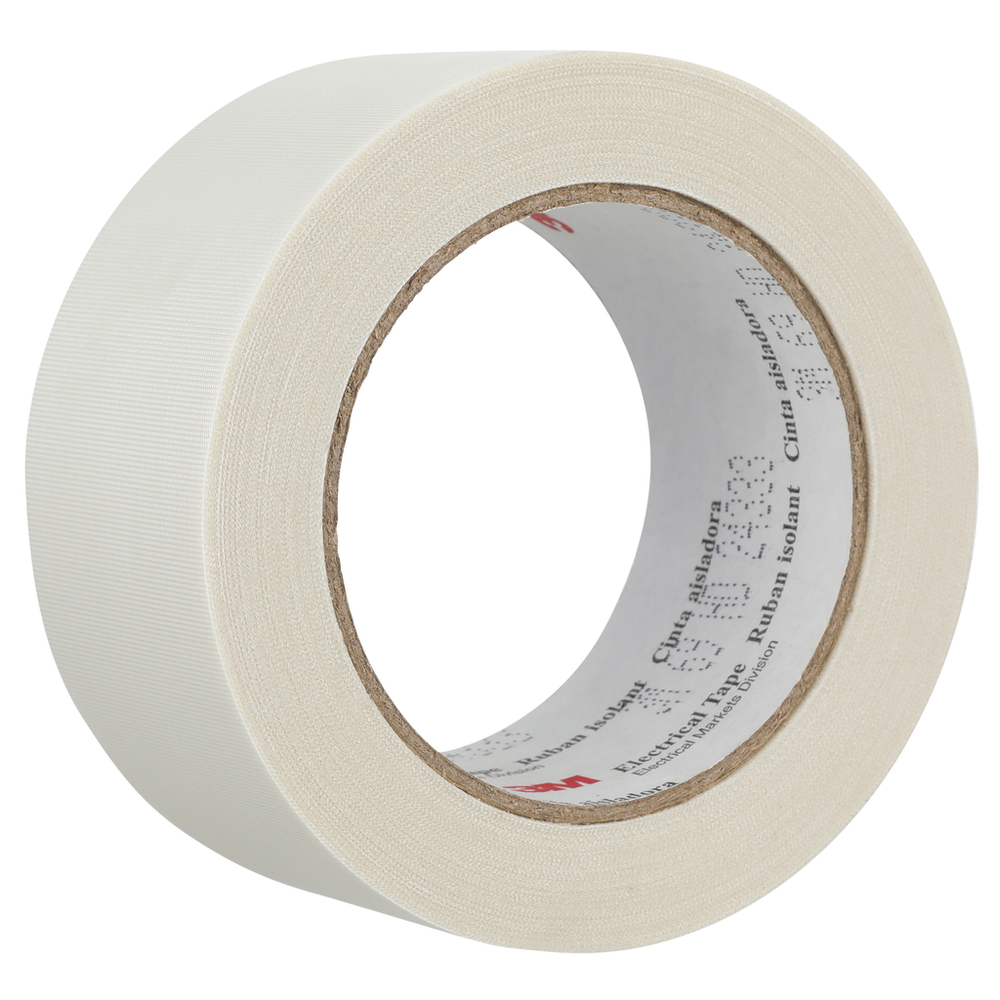

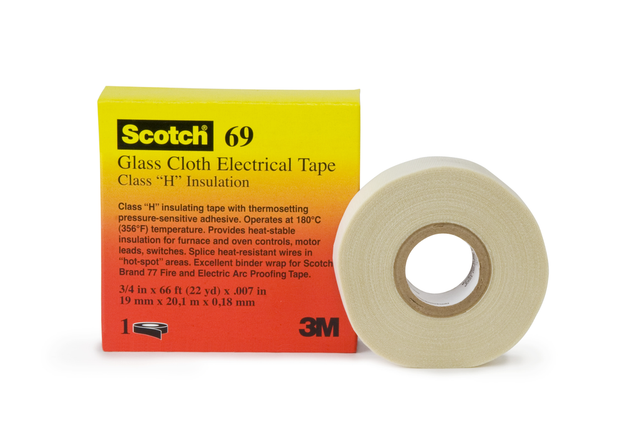

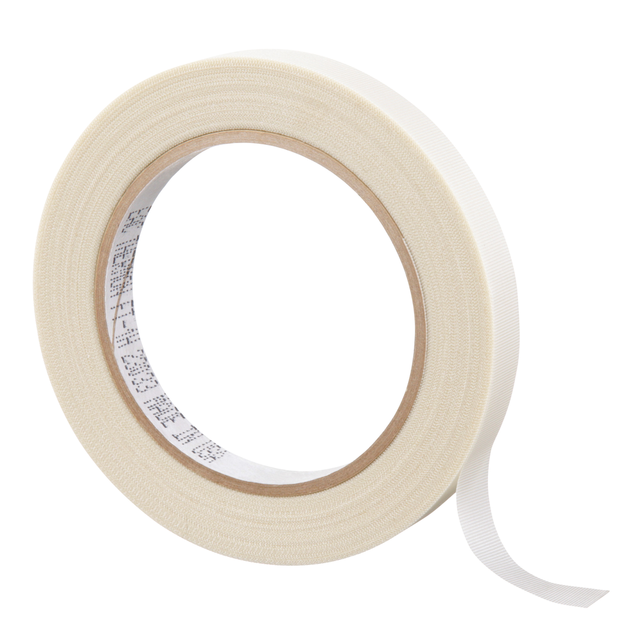

3M™ Glass Cloth Electrical Tape 69, 2 in X 36 yds, 24 rolls/case - 7010398767

Sold As: 24-Pack
SKU: 7010398767
MPN: 7010398767
Made to Order: For a lead time estimate, please send your request to [email protected]
UPC: 00051138496067
3M ID: 80610881858
5 Digit UPC: 49606
$2,510.96 ($104.62 / Count)
Hurry up! Current stock:

Product Description

3M™ Glass Cloth Electrical Tape 69 is a white, 0.178 mm (7-mil) thick tape composed of a 0.140 mm (5.5-mil) glass cloth backing coated on one side with a non-corrosive, high-temperature, flame retardant, thermosetting silicone pressure-sensitive adhesive.

Features

  • Pressure-sensitive silicone adhesive with glass cloth backing
  • Nominal thickness: 0.178 mm (7.0 mil)
  • Printable
  • 5 year shelf-life when stored per 3M recommended conditions
  • UL Recognized flame retardant
  • UL 200°C (392°F) and CSA 180°C (356°F) temperature ratings

Downloads

Specifications

Shelf Life1825
Country of OriginUnited States
Specifications MetCSA, RoHS 2011/65/EU, UL Recognized
Overall Width (Metric) UOMmm
Electrolytic Corrosion Factor1.0
Dielectric Strength3000.0
Overall Width (Imperial) UOMin
ApplicationInsulation
Total Tape Thickness without Liner (Metric) UOMmm
Total Tape Thickness without Liner (Metric)0.178
Overall Length (Metric) UOMm
Overall Width (Metric)50.8
Overall Length (Imperial) UOMyd
Total Tape Thickness without Liner (Imperial) UOMmil
Insulation Resistance4.8 x 10^4 megohms
Overall Length (Imperial)36.0
Adhesive TypeSilicone
Product ColorWhite
Product MarketsElectrical Equipment Manufacturing
Total Tape Thickness without Liner (Imperial)7.0
Dielectric Strength UOMV
Overall Length (Metric)33.0
Tape GradeProfessional
Backing (Carrier) MaterialGlass Cloth
Shelf Life UOMYear
Overall Width (Imperial)2.0
