3M™ Glass Cloth Electrical Tape 69, 1/2 in x 36 yd, White, 72 Rolls/Case - 7000132138

Sold As: 72-Pack
SKU: 7000132138
MPN: 7000132138
Stock Item: Stock items typically ship within 2-3 business days
UPC: 00054007273103
3M ID: 80002040030
5 Digit UPC: 27310
$1,729.89 ($24.03 / Count)
Hurry up! Current stock:

Product Description

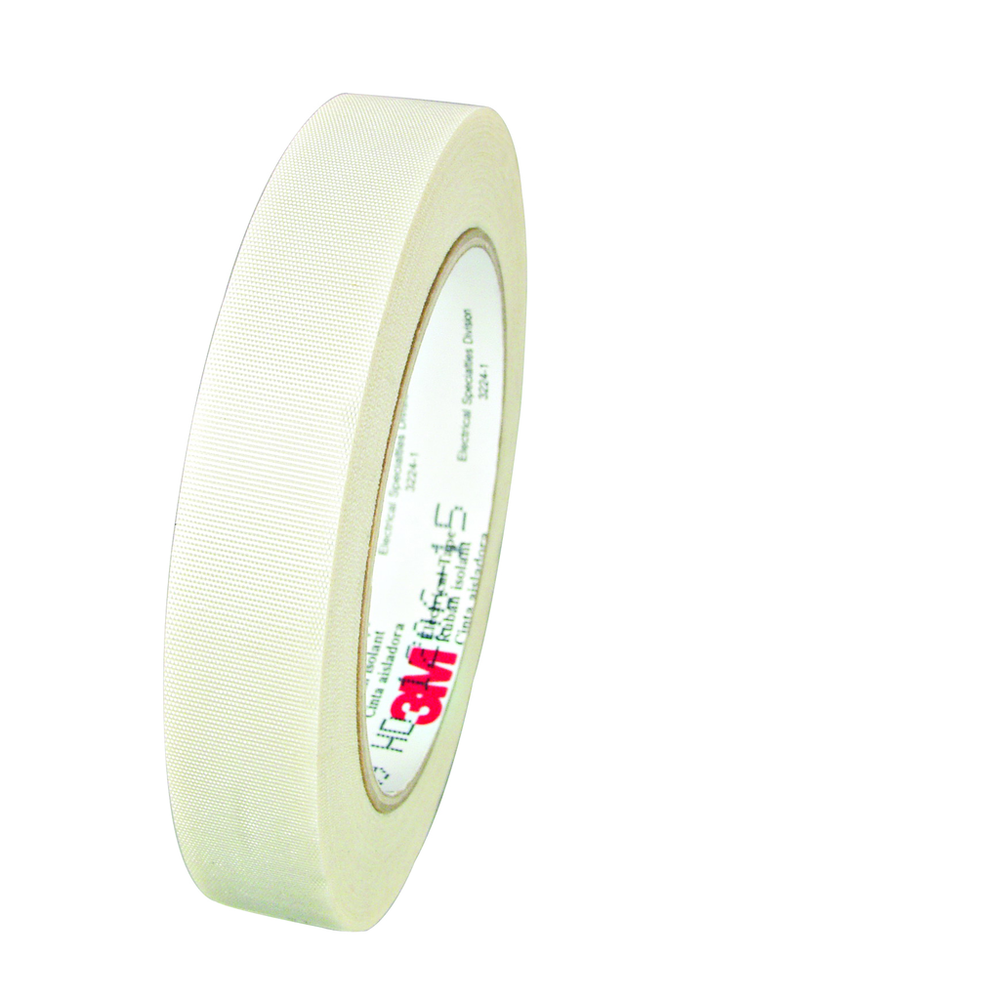

3M™ Glass Cloth Electrical Tape 69 is a white, 0.178 mm (7-mil) thick tape composed of a 0.140 mm (5.5-mil) glass cloth backing coated on one side with a non-corrosive, high-temperature, flame retardant, thermosetting silicone pressure-sensitive adhesive.

Features

  • 5 year shelf-life when stored per 3M recommended conditions
  • UL Recognized flame retardant
  • Nominal thickness: 0.178 mm (7.0 mil)
  • UL 200°C (392°F) and CSA 180°C (356°F) temperature ratings
  • Pressure-sensitive silicone adhesive with glass cloth backing
  • Printable

Downloads

Specifications

Shelf Life1825
Country of OriginUnited States
Overall Width (Imperial)0.5
Total Tape Thickness without Liner (Imperial)7.0
Product ColorWhite
Overall Width (Metric) UOMmm
Total Tape Thickness without Liner (Metric) UOMmm
Overall Width (Metric)12.7
Total Tape Thickness without Liner (Imperial) UOMmil
Insulation Resistance4.8 x 10^4 megohms
Adhesive TypeSilicone
ApplicationInsulation
Dielectric Strength UOMV
Dielectric Strength3000.0
Backing (Carrier) MaterialGlass Cloth
Overall Length (Metric) UOMm
Overall Length (Imperial)36.0
Total Tape Thickness without Liner (Metric)0.178
Overall Length (Imperial) UOMyd
Tape GradeProfessional
Overall Length (Metric)32.9
Overall Width (Imperial) UOMin
Electrolytic Corrosion Factor1.0
Product MarketsElectrical Equipment Manufacturing
Specifications MetCSA, RoHS 2011/65/EU, UL Recognized
Shelf Life UOMYear
