3M Products & Supplies

3M™ Glass Cloth Electrical Tape 69, 1/4 in x 36 yd, White - 7010348192

Sold As: 144-Pack
SKU: 7010348192
MPN: 7010348192
Made to Order: For a lead time estimate, please send your request to [email protected]
UPC: 00054007273080
3M ID: 80002040014
5 Digit UPC: 27308
$1,828.60 ($12.70 / Count)
Hurry up! Current stock:

Product Description

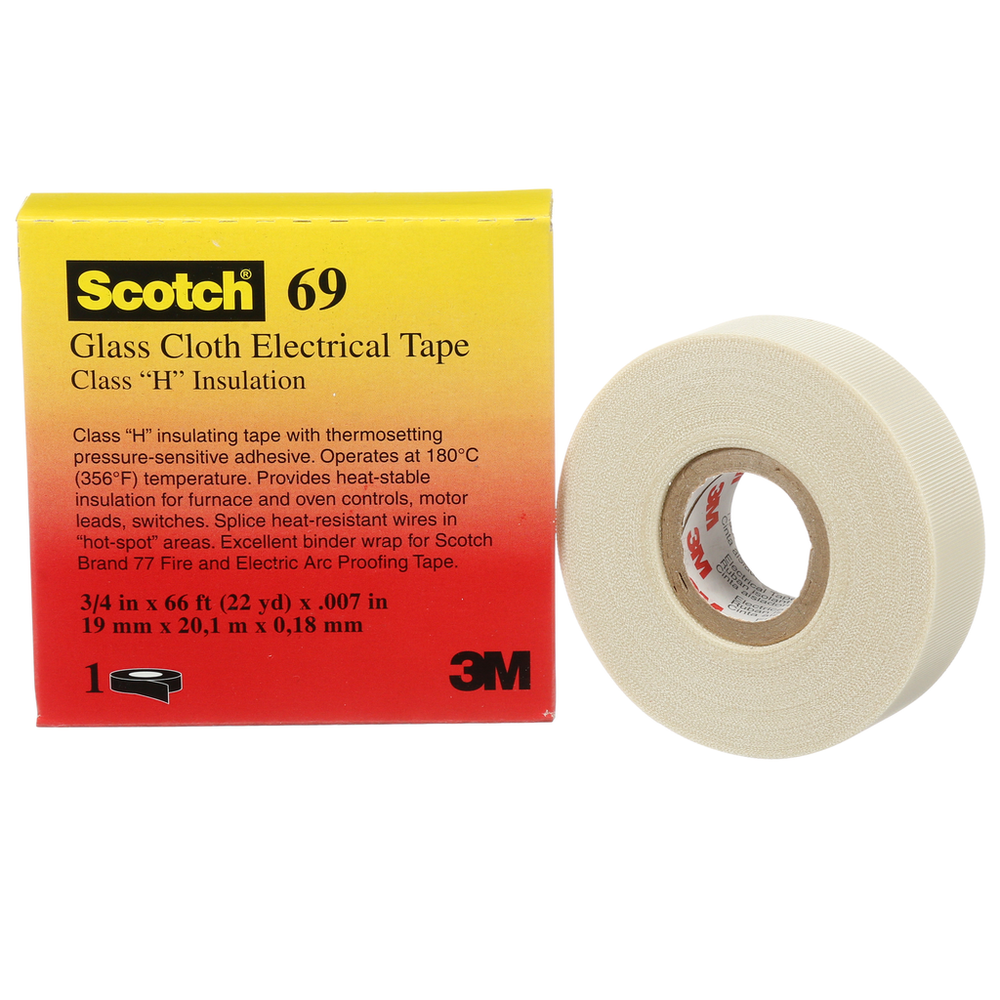

3M™ Glass Cloth Electrical Tape 69 is a white, 0.178 mm (7-mil) thick tape composed of a 0.140 mm (5.5-mil) glass cloth backing coated on one side with a non-corrosive, high-temperature, flame retardant, thermosetting silicone pressure-sensitive adhesive.

Features

  • Pressure-sensitive silicone adhesive with glass cloth backing
  • Printable
  • UL Recognized flame retardant
  • UL 200°C (392°F) and CSA 180°C (356°F) temperature ratings
  • Nominal thickness: 0.178 mm (7.0 mil)
  • 5 year shelf-life when stored per 3M recommended conditions

Downloads

Specifications

Shelf Life1825
Country of OriginUnited States
Overall Length (Imperial) UOMyd
Overall Length (Metric) UOMm
Overall Length (Metric)32.9
Insulation Resistance4.8 x 10^4 megohms
Specifications MetCSA, RoHS 2011/65/EU, UL Recognized
Backing (Carrier) MaterialGlass Cloth
Overall Width (Metric) UOMmm
Total Tape Thickness without Liner (Imperial)7.0
Total Tape Thickness without Liner (Metric) UOMmm
Product MarketsElectrical Equipment Manufacturing
Adhesive TypeSilicone
Product ColorWhite
Overall Length (Imperial)36.0
Shelf Life UOMYear
Electrolytic Corrosion Factor1.0
ApplicationInsulation
Total Tape Thickness without Liner (Imperial) UOMmil
Tape GradeProfessional
Dielectric Strength UOMV
Total Tape Thickness without Liner (Metric)0.178
Overall Width (Imperial) UOMin
Overall Width (Metric)6.35
Overall Width (Imperial)0.25
Dielectric Strength3000.0
