3M Products & Supplies

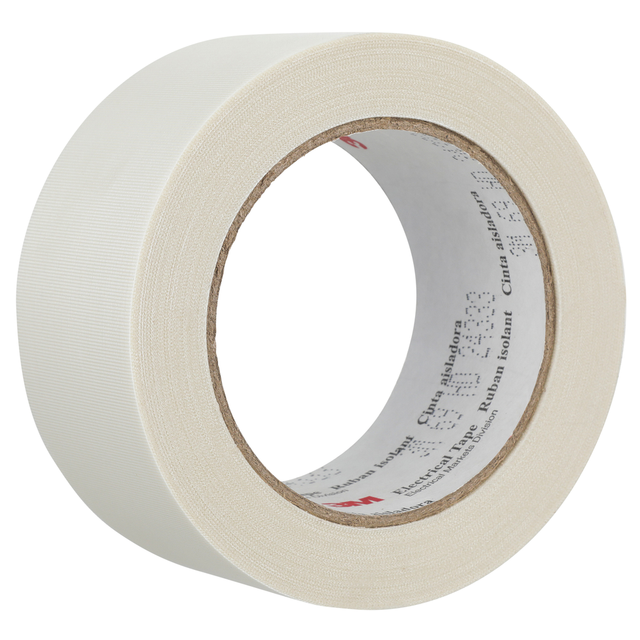

3M™ Glass Cloth Electrical Tape 69, 3/4 in x 36 yd, White - 7000031342

Sold As: 48-Pack
SKU: 7000031342
MPN: 7000031342
Stock Item: Stock items typically ship within 2-3 business days
UPC: 00054007273110
3M ID: 80002040048
5 Digit UPC: 27311
$1,729.00 ($36.02 / Count)
Hurry up! Current stock:

Product Description

3M™ Glass Cloth Electrical Tape 69 is a white, 0.178 mm (7-mil) thick tape composed of a 0.140 mm (5.5-mil) glass cloth backing coated on one side with a non-corrosive, high-temperature, flame retardant, thermosetting silicone pressure-sensitive adhesive.

Features

  • 5 year shelf-life when stored per 3M recommended conditions
  • Printable
  • Pressure-sensitive silicone adhesive with glass cloth backing
  • UL Recognized flame retardant
  • Nominal thickness: 0.178 mm (7.0 mil)
  • UL 200°C (392°F) and CSA 180°C (356°F) temperature ratings

Downloads

Specifications

Shelf Life1825
Country of OriginUnited States
Overall Width (Metric)19.05
Overall Width (Metric) UOMmm
Overall Length (Metric) UOMm
Product ColorWhite
Specifications MetCSA, RoHS 2011/65/EU, UL Recognized
Backing (Carrier) MaterialGlass Cloth
Dielectric Strength UOMV
Product MarketsElectrical Equipment Manufacturing
Tape GradeProfessional
Overall Length (Metric)32.9
Electrolytic Corrosion Factor1.0
Adhesive TypeSilicone
Overall Width (Imperial) UOMin
Total Tape Thickness without Liner (Imperial)7.0
Overall Width (Imperial)0.75
Total Tape Thickness without Liner (Imperial) UOMmil
Total Tape Thickness without Liner (Metric) UOMmm
ApplicationInsulation
Dielectric Strength3000.0
Insulation Resistance4.8 x 10^4 megohms
Shelf Life UOMYear
Total Tape Thickness without Liner (Metric)0.178
Overall Length (Imperial)36.0
Overall Length (Imperial) UOMyd
