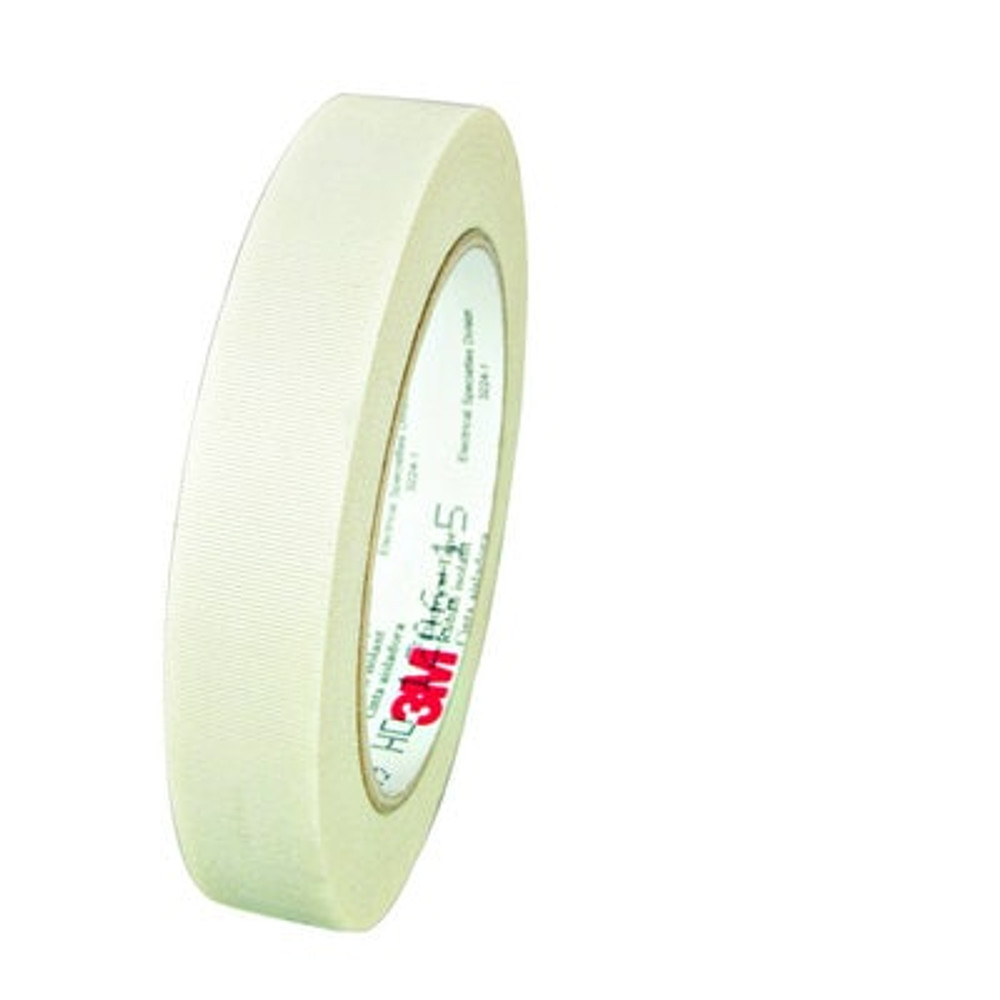

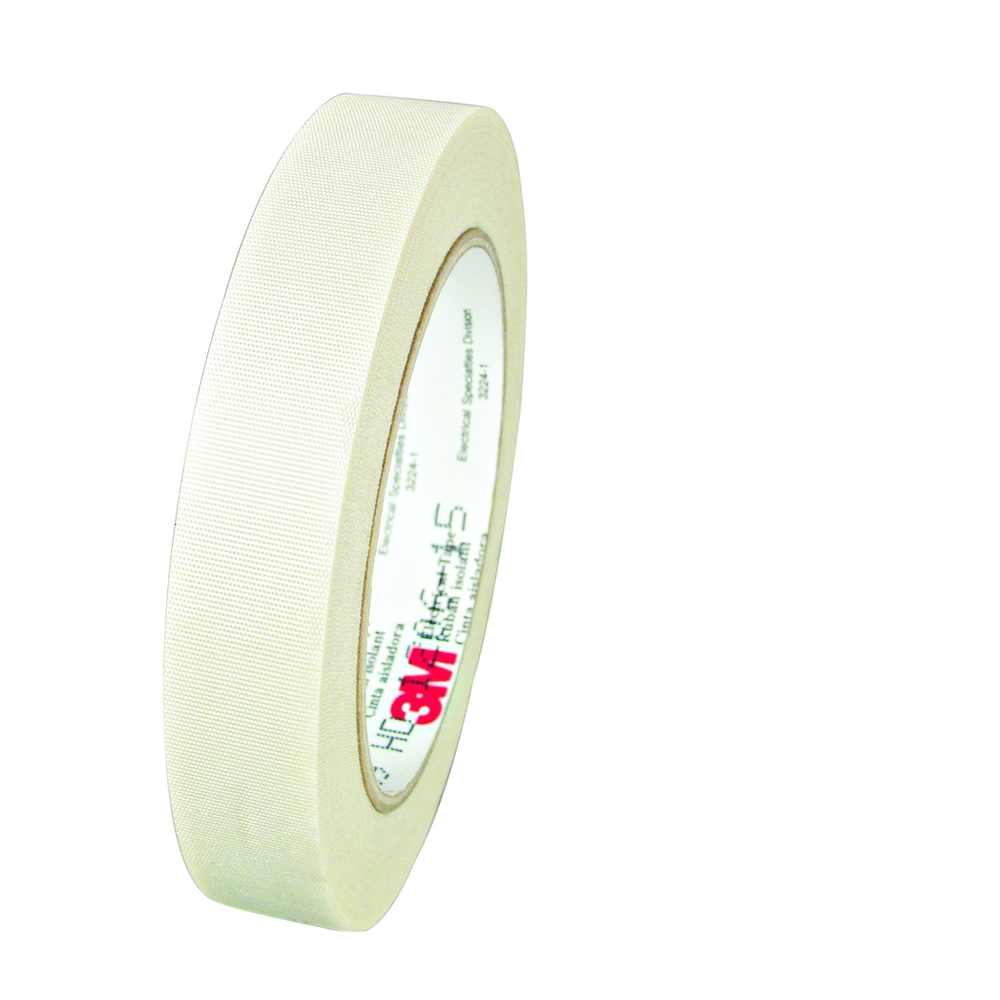

3M™ Glass Cloth Electrical Tape 69, 1 in x 36 yd, White, 36 Rolls/Case - 7000140753

Name: 3M™ Glass Cloth Electrical Tape 69, 1 in x 36 yd, White, 36 Rolls/Case - 7000140753
Brand: 3M Products & Supplies
SKU: 7000140753
Price: 1728.81 USD
Availability: InStock

Sold As: 36-Pack

SKU: 7000140753

MPN: 7000140753

Stock Item: Stock items typically ship within 2-3 business days

UPC: 00054007273127

3M ID: 80002040055

5 Digit UPC: 27312

$1,728.81 ($48.02 / Count)

Hurry up! Current stock:

Quantity:

Product Description

3M™ Glass Cloth Electrical Tape 69 is a white, 0.178 mm (7-mil) thick tape composed of a 0.140 mm (5.5-mil) glass cloth backing coated on one side with a non-corrosive, high-temperature, flame retardant, thermosetting silicone pressure-sensitive adhesive.

Features

UL 200°C (392°F) and CSA 180°C (356°F) temperature ratings
UL Recognized flame retardant
Pressure-sensitive silicone adhesive with glass cloth backing
5 year shelf-life when stored per 3M recommended conditions
Printable
Nominal thickness: 0.178 mm (7.0 mil)

Spec Sheet

Downloads

Product Selection Guides

Specifications

Shelf Life	1825
Country of Origin	United States
Dielectric Strength UOM	V
Shelf Life UOM	Year
Total Tape Thickness without Liner (Imperial)	7.0
Overall Length (Imperial)	36.0
Product Color	White
Overall Length (Imperial) UOM	yd
Total Tape Thickness without Liner (Imperial) UOM	mil
Overall Length (Metric) UOM	m
Overall Width (Imperial) UOM	in
Dielectric Strength	3000.0
Tape Grade	Professional
Overall Width (Metric) UOM	mm
Overall Width (Imperial)	1.0
Electrolytic Corrosion Factor	1.0
Overall Width (Metric)	25.4
Product Markets	Electrical Equipment Manufacturing
Application	Insulation
Specifications Met	CSA, RoHS 2011/65/EU, UL Recognized
Total Tape Thickness without Liner (Metric)	0.178
Overall Length (Metric)	32.9
Backing (Carrier) Material	Glass Cloth
Adhesive Type	Silicone
Insulation Resistance	4.8 x 10^4 megohms
Total Tape Thickness without Liner (Metric) UOM	mm
