3M Products & Supplies

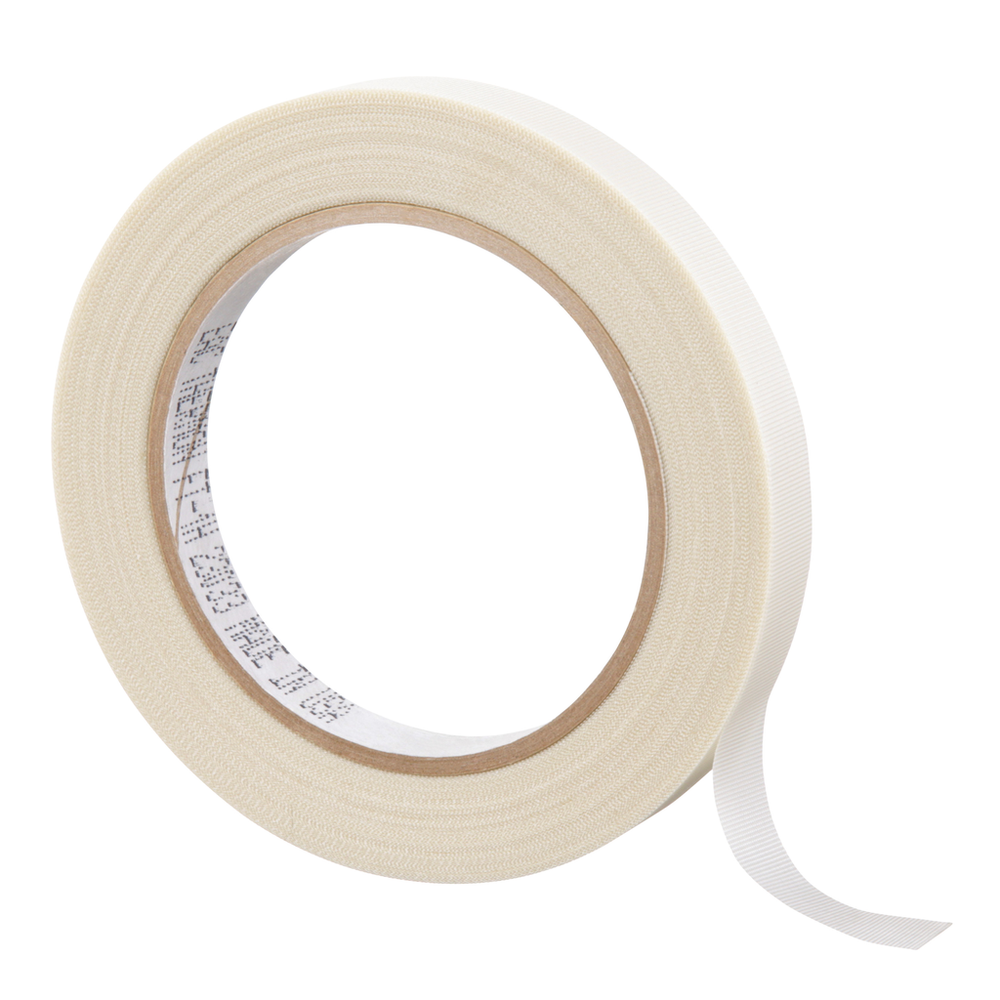

3M™ Glass Cloth Electrical Tape 69, 1/2 in x 36 yd, White, 18 Rolls/Case - 7000031352

Sold As: 18-Pack
SKU: 7000031352
MPN: 7000031352
Made to Order: For a lead time estimate, please send your request to [email protected]
UPC: 00054007275480
3M ID: 80018002420
5 Digit UPC: 27548
$474.68 ($26.37 / Count)
Hurry up! Current stock:

Product Description

3M™ Glass Cloth Electrical Tape 69 is a white, 0.178 mm (7-mil) thick tape composed of a 0.140 mm (5.5-mil) glass cloth backing coated on one side with a non-corrosive, high-temperature, flame retardant, thermosetting silicone pressure-sensitive adhesive.

Features

  • 5 year shelf-life when stored per 3M recommended conditions
  • UL 200°C (392°F) and CSA 180°C (356°F) temperature ratings
  • UL Recognized flame retardant
  • Nominal thickness: 0.178 mm (7.0 mil)
  • Pressure-sensitive silicone adhesive with glass cloth backing
  • Printable
Spec Sheet



Downloads

Specifications

Shelf Life1825
Country of OriginUnited States
Adhesive TypeSilicone
Electrolytic Corrosion Factor1.0
Overall Width (Metric) UOMmm
Overall Width (Imperial)0.5
Product ColorWhite
Product MarketsElectrical Equipment Manufacturing
Shelf Life UOMYear
Specifications MetCSA, RoHS 2011/65/EU, UL Recognized
Overall Length (Metric)32.9
Overall Length (Imperial) UOMyd
Dielectric Strength3000.0
Dielectric Strength UOMV
Overall Width (Imperial) UOMin
Total Tape Thickness without Liner (Metric)0.178
Total Tape Thickness without Liner (Imperial) UOMmil
Overall Length (Imperial)36.0
Backing (Carrier) MaterialGlass Cloth
Overall Length (Metric) UOMm
Total Tape Thickness without Liner (Metric) UOMmm
Overall Width (Metric)12.7
ApplicationInsulation
Tape GradeProfessional
Total Tape Thickness without Liner (Imperial)7.0
Insulation Resistance4.8 x 10^4 megohms
