3M Products & Supplies

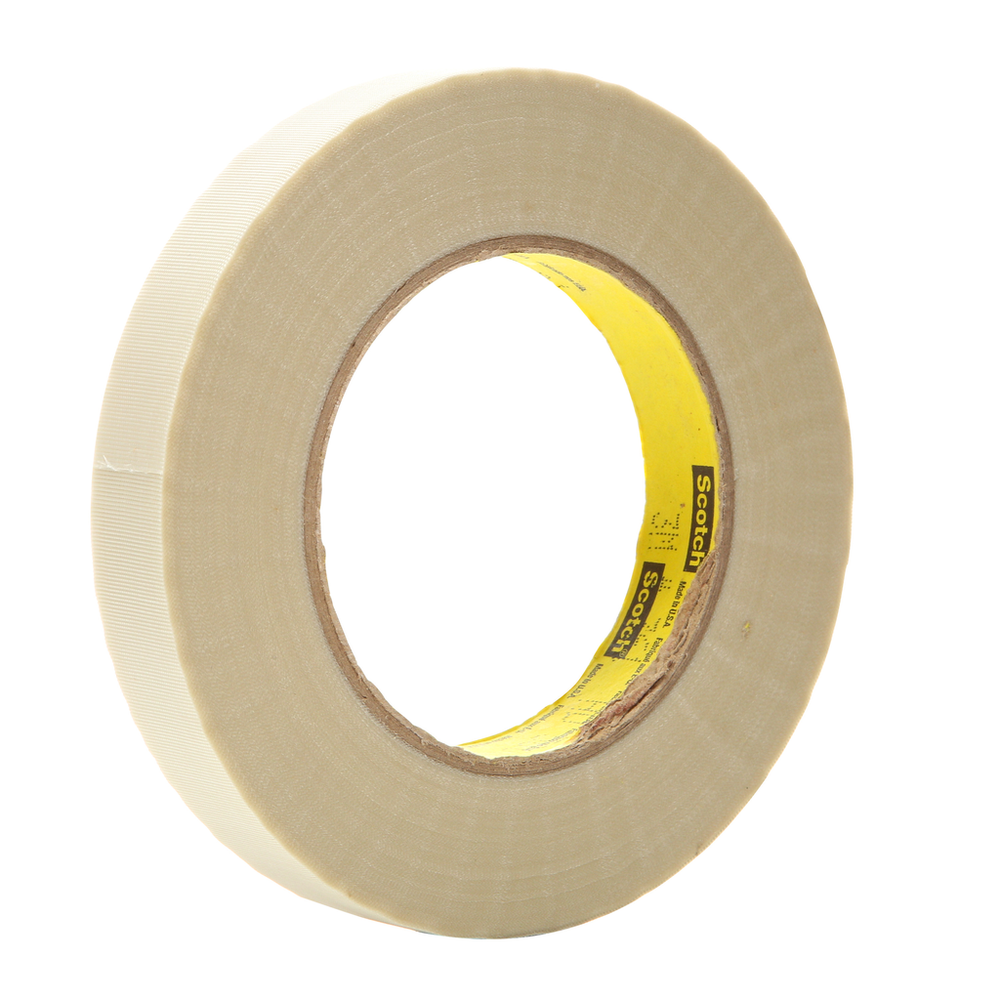

3M™ Glass Cloth Tape 361, White, 3/4 IN x 60 YD, 6.4 Mil, 8 Rolls/Case, Mini Case - 7100223594

Sold As: 64-Pack
SKU: 7100223594
MPN: 7100223594
Made to Order: For a lead time estimate, please send your request to [email protected]
UPC: 00638060406090
3M ID: 70007543229
5 Digit UPC: 40609
$6,256.68 ($97.76 / Count)
Hurry up! Current stock:

Product Description

Constructed with a woven fiberglass backing, 3M™ Glass Cloth Tape 361 features a pressure sensitive silicone adhesive for applications requiring high-temperature resistance, high adhesion and clean removal. It is often used for high temperature applications such as sealing ducts and as a back-up strip for submerged arc welding.

Features

  • Can be certified to meet F.A.R. 25.853, flame resistant specification
  • Used for permanent sealing of high temperature ducts or chambers
  • Withstands temperatures from -65°F/-54°C to 450°F/232°C and intermittent temperatures up to 550°F/288°C or higher, depending on the type and duration of the heat source
  • Silicone adhesive provides good holding power and clean removal across a wide range of temperatures
  • Strong abrasion resistant backing provides strength for bundling, harnessing and protection applications requiring high tensile strength
Spec Sheet



Downloads

Specifications

Shelf Life730
Country of OriginUnited States
Backing (Carrier) Thickness (Metric) UOMmm
Overall Width (Metric) UOMmm
Backing (Carrier) Thickness (Imperial) UOMmil
Tensile Strength (Imperial) UOMoz/in
Backing (Carrier) MaterialGlass Cloth
Product ColorWhite
Overall Width (Imperial) UOMin
Total Tape Thickness without Liner (Imperial) UOMmil
Overall Length (Metric)54.864
Total Tape Thickness without Liner (Metric)0.16
Adhesive TypeSilicone
Overall Length (Imperial)60.0
Tensile Strength (Metric) UOMN/100mm
ApplicationSurface Protection
Overall Length (Imperial) UOMyd
Tensile Strength (Metric)2557.0
Elongation at Break9
Backing (Carrier) Thickness (Imperial)5.0
Overall Width (Metric)19.05
Backing (Carrier) Thickness (Metric)0.13
Total Tape Thickness without Liner (Metric) UOMmm
Overall Width (Imperial)0.75
Tensile Strength (Imperial)2336.0
Overall Length (Metric) UOMm
Total Tape Thickness without Liner (Imperial)6.4
Indoor/OutdoorIndoor/Outdoor
Minimum Operating Temperature (Celsius) UOMDegree
Back Side Adhesive Thickness (Imperial)1.4
Maximum Operating Temperature (Celsius)232.0
Back Side Adhesive Thickness (Metric) UOMmm
Specifications MetF.A.R. 25.853(a)
IndustriesAerospace, Appliance, Automotive, Construction, General Industrial, MRO, Marine, Metalworking, Military, Military and Government, Specialty Vehicles, Transportation
Back Side Adhesive Thickness (Metric)0.03
Shelf Life UOMMonth
Core Size (Imperial) UOMin
Minimum Operating Temperature (Fahrenheit)-65.0
Core Size (Metric) UOMcm
Maximum Operating Temperature (Celsius) UOMDegree
Product CategorySpecialty Tapes
Maximum Operating Temperature (Fahrenheit) UOMDegree
Maximum Operating Temperature (Fahrenheit)450.0
Minimum Operating Temperature (Celsius)-54.0
Core Size (Metric)7.62
Core Size (Imperial)3.0
Back Side Adhesive Thickness (Imperial) UOMmil
Minimum Operating Temperature (Fahrenheit) UOMDegree
