3M Products & Supplies

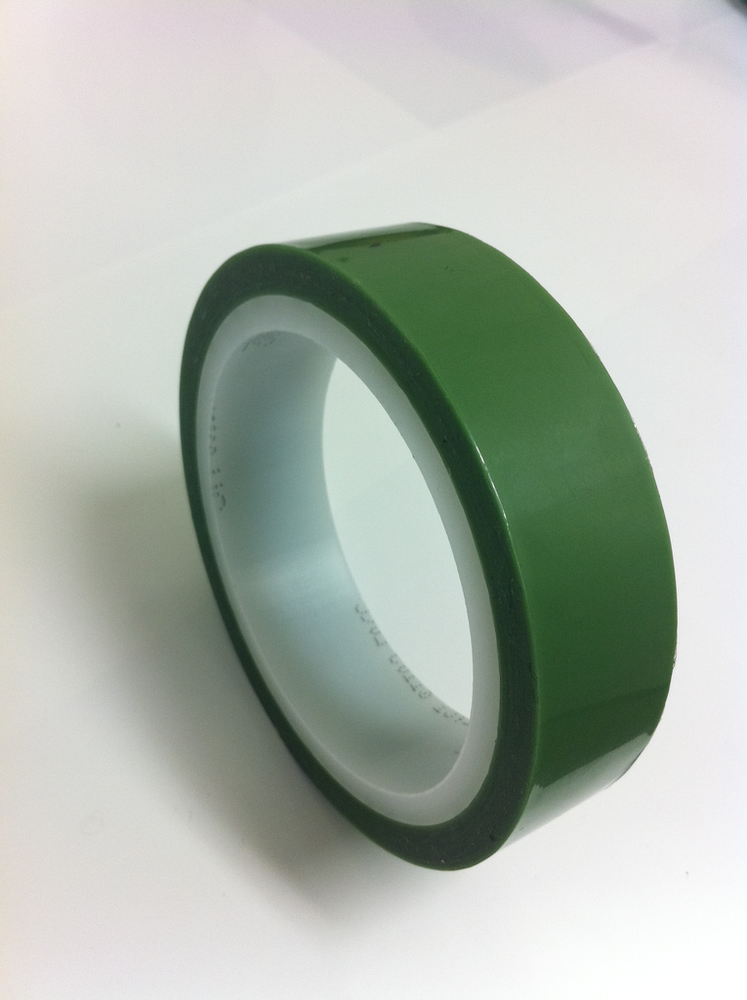

3M™ Greenback Printed Circuit Board Tape 851 J Green, 46 in x 36 yds x 4.0 mil, 1/Case - 7000001274

SKU: 7000001274
MPN: 7000001274
Made to Order: For a lead time estimate, please send your request to [email protected]
UPC: 00021200968754
3M ID: 70006334786
5 Digit UPC: 96875
$723.53 each
Hurry up! Current stock:

Product Description

3M™ Circuit Plating Tape 851 with polyester film and blended silicone and rubber adhesive used for PCB masking and other high temperature applications. Thick adhesive coating. Green, 4.0 mil thick.

Features

  • Polyethylene tape core instead of cardboard
  • Thick adhesive coating reduces undercutting because adhesive blocks out solutions between fingers
  • Specially designed adhesive that generally performs better when no ovens are used to heat tape and boards
  • Polyester backing reduces stretch and recovery of tape associated with uneven stop-off line
Spec Sheet



Downloads

Specifications

Country of OriginMexico
Overall Width (Metric) UOMmm
Total Tape Thickness without Liner (Imperial)3.6
Total Tape Thickness without Liner (Metric) UOMmm
Backing (Carrier) MaterialPolyester
Product ColorGreen
Overall Width (Imperial) UOMin
Overall Length (Metric) UOMm
Total Tape Thickness without Liner (Imperial) UOMmil
Overall Width (Metric)1168.4
Overall Length (Imperial) UOMyd
Total Tape Thickness without Liner (Metric)0.091
Overall Width (Imperial)46.0
Overall Length (Imperial)36.0
Overall Length (Metric)32.918
Adhesive TypeSilicone/Rubber
