3M Products & Supplies

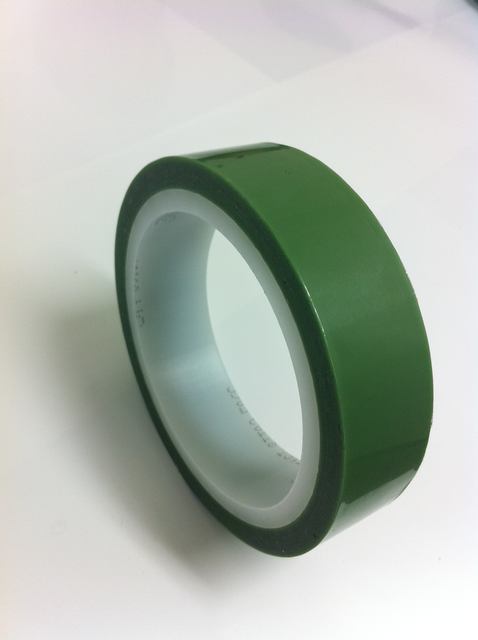

3M™ Greenback Printed Circuit Board Tape 851 Green, 48 in x 72 yds x 4.0 mil, 1/Case - 7000048769

SKU: 7000048769
MPN: 7000048769
Made to Order: For a lead time estimate, please send your request to [email protected]
UPC: 50021200317748
3M ID: 70006226479
5 Digit UPC: 31774
$1,509.78 each
Hurry up! Current stock:

Product Description

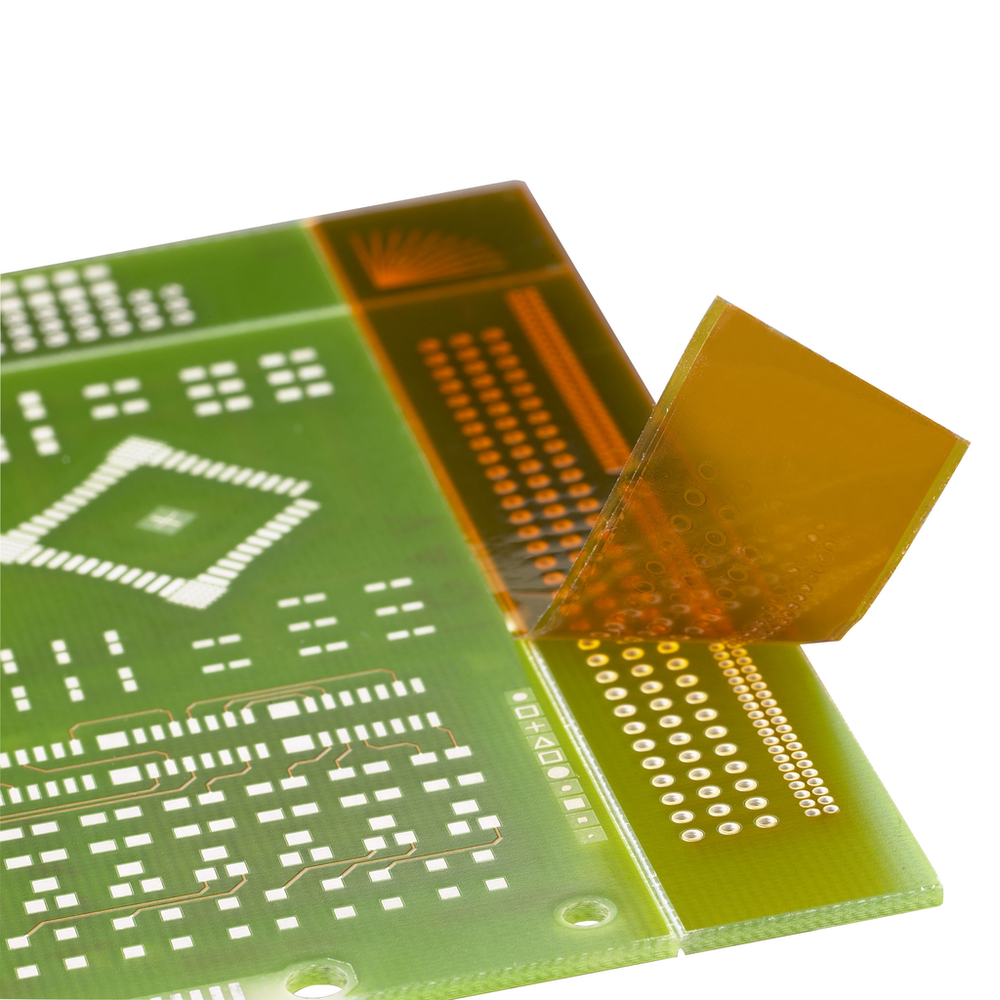

3M™ Circuit Plating Tape 851 with polyester film and blended silicone and rubber adhesive used for PCB masking and other high temperature applications. Thick adhesive coating. Green, 4.0 mil thick.

Features

  • Polyester backing reduces stretch and recovery of tape associated with uneven stop-off line
  • Specially designed adhesive that generally performs better when no ovens are used to heat tape and boards
  • Thick adhesive coating reduces undercutting because adhesive blocks out solutions between fingers
  • Polyethylene tape core instead of cardboard
Spec Sheet



Downloads

Specifications

Country of OriginMexico
Overall Length (Imperial) UOMyd
Total Tape Thickness without Liner (Metric) UOMmm
Product ColorGreen
Overall Width (Imperial) UOMin
Total Tape Thickness without Liner (Imperial) UOMmil
Total Tape Thickness without Liner (Metric)0.091
Overall Length (Metric)66.0
Overall Width (Metric)1219.2
Overall Width (Imperial)48.0
Overall Length (Metric) UOMm
Overall Width (Metric) UOMmm
Total Tape Thickness without Liner (Imperial)3.6
Backing (Carrier) MaterialPolyester
Adhesive TypeSilicone/Rubber
Overall Length (Imperial)72.0
