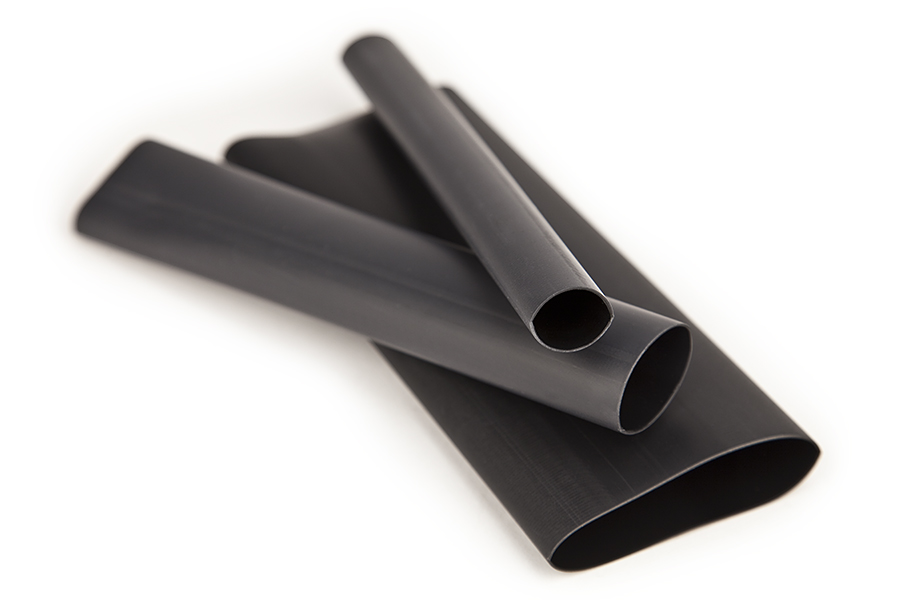

3M™ Heat Shrink Flexible Polyolefin Tubing EPS200-1 1/2-6"-Black-10-3 Pc Pks, 6 in length sticks, 3 pieces/pack, 10 Packs/Case - 7010293961

Sold As: 10-Pack
SKU: 7010293961
MPN: 7010293961
Made to Order: For a lead time estimate, please send your request to [email protected]
UPC: 00051128601303
3M ID: 80611603921
5 Digit UPC: 60130
$324.21 ($32.42 / Count)
Hurry up! Current stock:

Product Description

3M™ EPS 200 Heat Shrink Tubing is a dual wall tubing that provides the advantage of integral, adhesive lined construction. This flame retardant tubing with a 2:1 shrink ratio, offers insulation for 600V rated applications. The flexible polyolefin construction with an internal layer of thermoplastic adhesive offers moisture seal protection in automotive and marine applications.

Features

  • Flame-retardant tubing is rated for 600V applications
  • Protects electronic components, automotive, truck and marine wiring splices or bundling of wires
  • Made of black flexible polyolefin
  • Dual-wall construction provides abrasion resistance and moisture-seal protection
  • Withstands temperatures of -67 to 230 degrees F (-55 to 110 degrees C)
  • Offers the advantage of integral, adhesive-lined construction
Spec Sheet



Downloads

Specifications

Shelf Life3600
Country of OriginUnited States
Maximum Operating Temperature (Celsius) UomDegree
Inner Diameter After Shrink (Imperial) UOMin
Inner Diameter Before Shrink (Imperial)1.5
Minimum Expanded Tubing I. D.1.5
Inner Diameter After Shrink (Metric) UOMmm
Maximum Operating Temperature (Fahrenheit)230.0
Inner Diameter Before Shrink (Imperial) UOMin
Inner Diameter After Shrink (Imperial)0.75
Flame RetardantYes
MaterialPolyolefin
Maximum Operating Temperature (Fahrenheit) UOMDegree
Units per Case3.0
Inner Diameter Before Shrink (Metric) UOMmm
Inner Diameter After Shrink (Metric)19.05
RoHS EU CommentsRoHS 2011/65/EU compliant without exemption
Minimum Expanded Tubing I. D. UOMin
Elongation UOMdB
Overall Length (Imperial) UOMin
Inner Diameter Before Shrink (Metric)38.1
Non-CorrosiveYes
Overall Length (Imperial)6.0
Maximum Operating Temperature (Celsius)110.0
