3M Products & Supplies

3M™ Heat Shrink Flexible Polyolefin Tubing EPS200-1/2-48"-Black-12 Pcs, 48 in length sticks, 12 pieces, 12/Case - 7000133577

Sold As: 12-Pack
SKU: 7000133577
MPN: 7000133577
For an accurate lead time please contact us
UPC: 00051128597231
3M ID: 80611473846
5 Digit UPC: 59723
$158.19 ($13.18 / Count)
Hurry up! Current stock:

Product Description

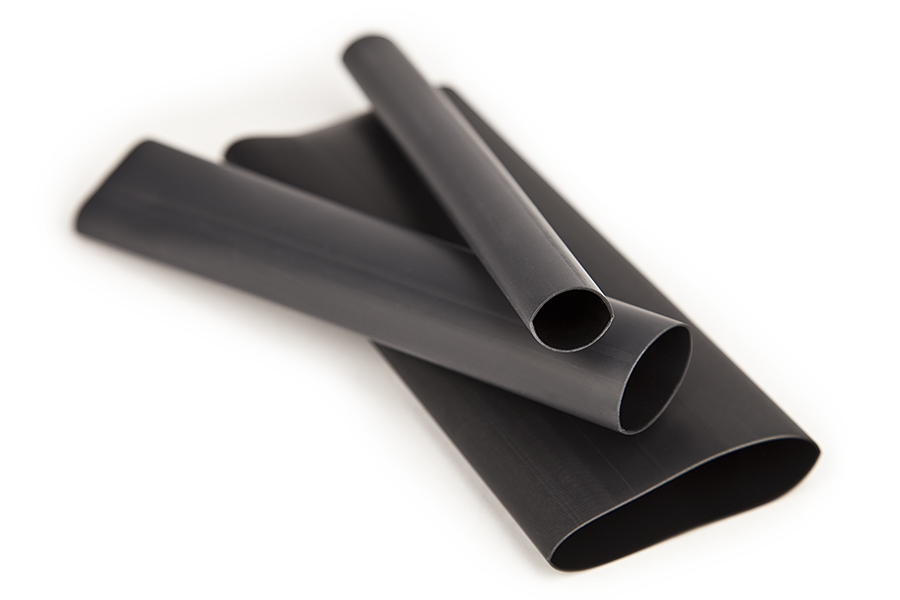

3M™ EPS 200 Heat Shrink Tubing is a dual wall tubing that provides the advantage of integral, adhesive lined construction. This flame retardant tubing with a 2:1 shrink ratio, offers insulation for 600V rated applications. The flexible polyolefin construction with an internal layer of thermoplastic adhesive offers moisture seal protection in automotive and marine applications.

Features

  • Withstands temperatures of -67 to 230 degrees F (-55 to 110 degrees C)
  • Protects electronic components, automotive, truck and marine wiring splices or bundling of wires
  • Made of black flexible polyolefin
  • Dual-wall construction provides abrasion resistance and moisture-seal protection
  • Flame-retardant tubing is rated for 600V applications
  • Offers the advantage of integral, adhesive-lined construction

Downloads

Specifications

Shelf Life3600
Country of OriginUnited States
RoHS EU CommentsRoHS 2011/65/EU compliant without exemption
Elongation UOM%
Inner Diameter After Shrink (Metric) UOMmm
Inner Diameter After Shrink (Metric)4.06
Inner Diameter Before Shrink (Imperial) UOMin
MaterialPolyolefin
Mil SpecAMS-DTL-23053/4, Class 2
Maximum Operating Temperature (Celsius)110.0
Inner Diameter Before Shrink (Metric)12.7
Minimum Expanded Tubing I. D.0.5
Maximum Operating Temperature (Fahrenheit)230.0
Inner Diameter Before Shrink (Imperial)0.5
Inner Diameter Before Shrink (Metric) UOMmm
Non-CorrosiveYes
Overall Length (Imperial) UOMin
Inner Diameter After Shrink (Imperial) UOMin
Shrink Ratio2:1
Minimum Expanded Tubing I. D. UOMin
Flame RetardantYes
Overall Length (Imperial)48.0
Units per Case12.0
Inner Diameter After Shrink (Imperial)0.16
Maximum Operating Temperature (Celsius) UomDegree
UL File NumberE-39100
Maximum Operating Temperature (Fahrenheit) UOMDegree
