3M Products & Supplies

3M™ Heat Shrink Flexible Polyolefin Tubing EPS200-1/8-48"-Black-25 Pcs, 48 in length sticks, 25 pieces, 25/Case - 7100050222

Sold As: 25-Pack
SKU: 7100050222
MPN: 7100050222
Stock Item: Stock items typically ship within 2-3 business days
UPC: 00051128597194
3M ID: 80611473804
5 Digit UPC: 59719
$170.40 ($6.82 / Count)
Hurry up! Current stock:

Product Description

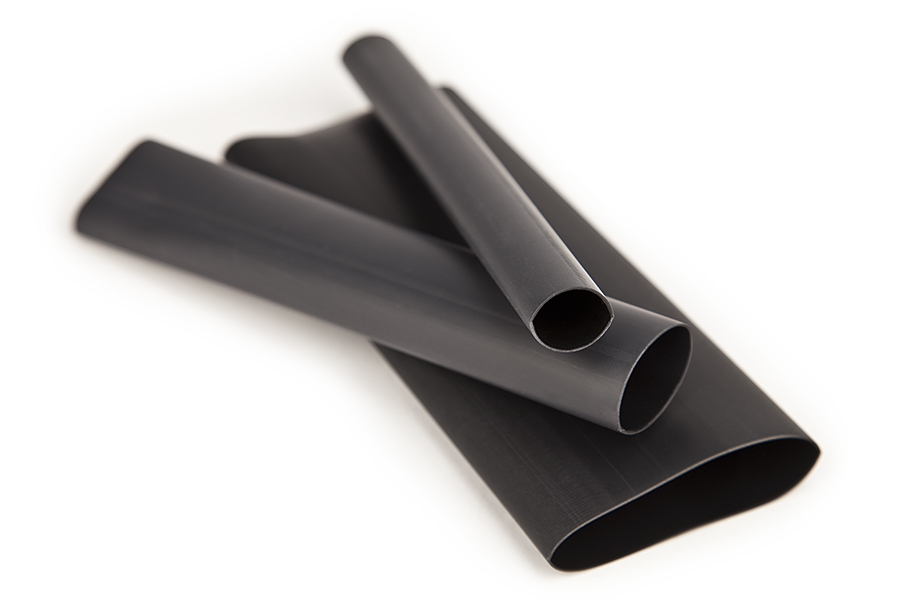

3M™ EPS 200 Heat Shrink Tubing is a dual wall tubing that provides the advantage of integral, adhesive lined construction. This flame retardant tubing with a 2:1 shrink ratio, offers insulation for 600V rated applications. The flexible polyolefin construction with an internal layer of thermoplastic adhesive offers moisture seal protection in automotive and marine applications.

Features

  • Withstands temperatures of -67 to 230 degrees F (-55 to 110 degrees C)
  • Protects electronic components, automotive, truck and marine wiring splices or bundling of wires
  • Flame-retardant tubing is rated for 600V applications
  • Offers the advantage of integral, adhesive-lined construction
  • Dual-wall construction provides abrasion resistance and moisture-seal protection
  • Made of black flexible polyolefin

Downloads

Specifications

Shelf Life3600
Country of OriginUnited States
RoHS EU CommentsRoHS 2011/65/EU compliant without exemption
Maximum Operating Temperature (Celsius)110.0
Elongation UOM%
Inner Diameter After Shrink (Metric)1.57
Overall Length (Imperial)48.0
Maximum Operating Temperature (Fahrenheit)230.0
Inner Diameter Before Shrink (Imperial) UOMin
Minimum Expanded Tubing I. D.0.125
Minimum Expanded Tubing I. D. UOMin
Inner Diameter After Shrink (Imperial)0.062
Maximum Operating Temperature (Fahrenheit) UOMDegree
MaterialPolyolefin
Shrink Ratio2:1
Units per Case25.0
Maximum Operating Temperature (Celsius) UomDegree
Flame RetardantYes
Inner Diameter Before Shrink (Metric) UOMmm
Inner Diameter After Shrink (Metric) UOMmm
Inner Diameter After Shrink (Imperial) UOMin
Non-CorrosiveYes
Inner Diameter Before Shrink (Metric)3.18
Overall Length (Imperial) UOMin
Inner Diameter Before Shrink (Imperial)0.125
