3M Products & Supplies

3M™ Heat Shrink Heavy-Duty End Cap SKE-30/76, Black, for cable diameters 1.18-2.36 in, 10 each/case - 7010350146

Sold As: 10-Pack
SKU: 7010350146
MPN: 7010350146
For an accurate lead time please contact us
UPC: 00051138481575
3M ID: 80610840672
5 Digit UPC: 48157
$185.93 ($18.59 / Count)
Hurry up! Current stock:

Product Description

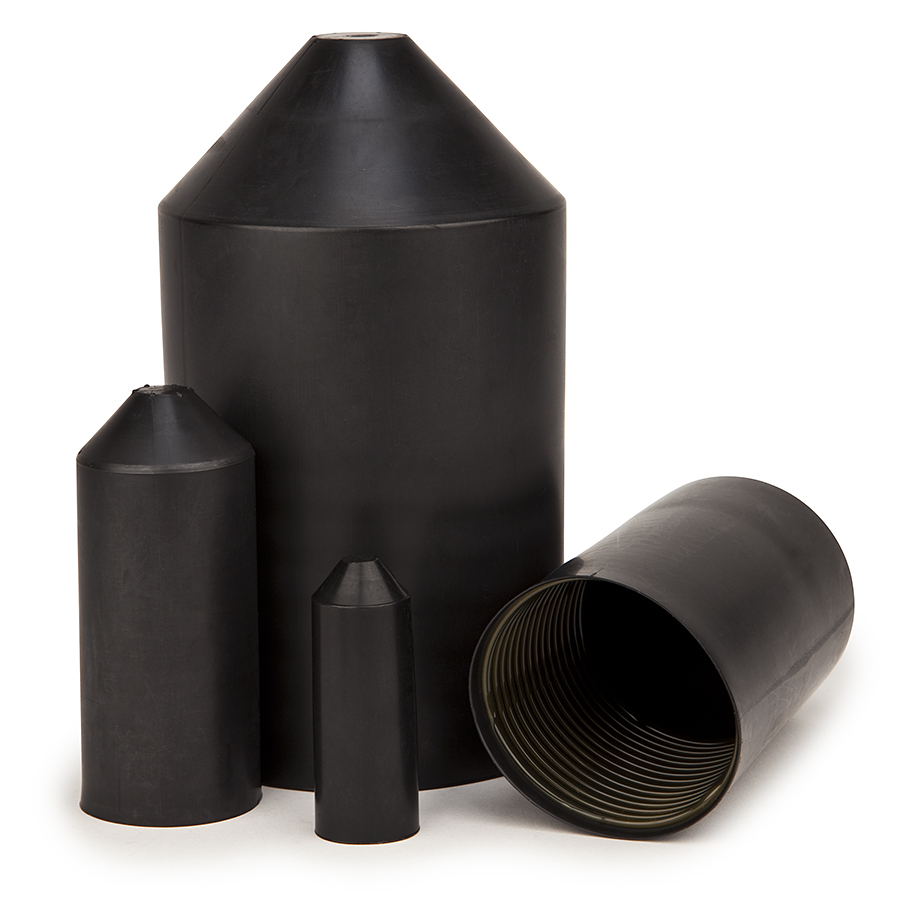

3M™ Heat Shrink End Cap SKE provides mechanical and environmental protection as well as sealing to cable ends. The semi rigid, flame retardant polyolefin construction makes the end cap suitable for heavy duty applications. The adhesive lining forms a permanent, flexible and water resistant barrier.

Features

  • Withstands temperatures of -67 to 230 degrees F (-55 to 110 degrees C)
  • Made of flame-retardant, semi-rigid, cross-linked polyolefin
  • Comes in black color
  • Adhesive lining offers flexible, water-resistant barrier
  • Suitable for heavy-duty applications
  • Offers mechanical and environmental protection to cable ends
Spec Sheet



Downloads

Specifications

Shelf Life3600
Country of OriginChina
Operating Temperature Range (Celsius)-55 °C to +110 °C
Dielectric Strength (V/mil)10 kV / mm
Shrink TypeHeat Shrink
Adhesive Material3M™ TTS-250 Thermoplastic Adhesive, 80 °C
RoHS EU CommentsRoHS 2011/65/EU compliant without exemption
Heat Shrink TypeHeat Shrink Molded Shapes
Inner Diameter Before Shrink (Imperial)2.992
Inner Diameter Before Shrink (Imperial) UOMin
Inner Diameter After Shrink (Metric) UOMmm
Expanded Height UOMin
ApplicationSealing the end of the cable
Recovered Height UOMin
Operating Temperature (Celsius)-30 up to +135°C
Inner Diameter After Shrink (Imperial)1.181
Recovered Length UOMin
End Cap TypeHeat Shrink
Cable End Expanded UOMin
Recovered Height1.18
Product ColorBlack
With Inner GlueYes
Flame RetardantYes
Cable End Recovered UOMin
Units per Case40.0
Adhesive LinedYes
Cable End Recovered1.18
Operating Temperature Range (Fahrenheit)-67 °F to 230 °F
Inner Diameter Before Shrink (Metric)76.0
UV ResistantYes
Recovered Length0.67
Inner Diameter After Shrink (Imperial) UOMin
Use Range1.18 in - 2.36 in
Expanded Height1.18
Inner Diameter Before Shrink (Metric) UOMmm
MaterialSemi-rigid, Cross-linked Polyolefin
Shrink Ratio2:1
Cable End Expanded2.99
Minimum Shrink Temperature (Celsius)120.0
Inner Diameter After Shrink (Metric)30.0
