3M Products & Supplies

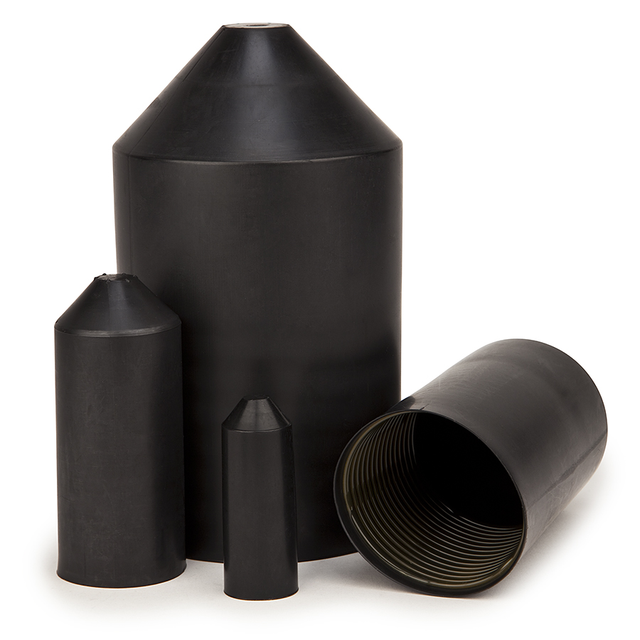

3M™ Heat Shrink Heavy-Duty End Cap SKE-45/100, Black, for cable diameters 1.77-3.15 in, 10/case - 7010396866

Sold As: 10-Pack
SKU: 7010396866
MPN: 7010396866
For an accurate lead time please contact us
UPC: 00051138481582
3M ID: 80610840680
5 Digit UPC: 48158
$240.44 ($24.04 / Count)
Hurry up! Current stock:

Product Description

3M™ Heat Shrink End Cap SKE provides mechanical and environmental protection as well as sealing to cable ends. The semi rigid, flame retardant polyolefin construction makes the end cap suitable for heavy duty applications. The adhesive lining forms a permanent, flexible and water resistant barrier.

Features

  • Withstands temperatures of -67 to 230 degrees F (-55 to 110 degrees C)
  • Offers mechanical and environmental protection to cable ends
  • Adhesive lining offers flexible, water-resistant barrier
  • Suitable for heavy-duty applications
  • Made of flame-retardant, semi-rigid, cross-linked polyolefin
  • Comes in black color
Spec Sheet



Downloads

Specifications

Shelf Life3600
Country of OriginChina
End Cap TypeHeat Shrink
Inner Diameter Before Shrink (Metric) UOMmm
Adhesive Material3M™ TTS-250 Thermoplastic Adhesive, 80 °C
Minimum Shrink Temperature (Celsius)120.0
Use Range1.77 in - 3.15 in
Inner Diameter After Shrink (Imperial) UOMin
Inner Diameter Before Shrink (Imperial) UOMin
Adhesive LinedYes
Cable End Expanded3.94
Flame RetardantYes
Shrink TypeHeat Shrink
Inner Diameter After Shrink (Metric) UOMmm
Expanded Height3.94
Recovered Height UOMin
Recovered Length UOMin
Dielectric Strength (V/mil)10 kV / mm
Units per Case30.0
Shrink Ratio2:1
Operating Temperature Range (Fahrenheit)-67 °F to 230 °F
Expanded Height UOMin
Cable End Recovered UOMin
Heat Shrink TypeHeat Shrink Molded Shapes
Operating Temperature (Celsius)-30 up to +135°C
Inner Diameter After Shrink (Metric)45.0
Inner Diameter Before Shrink (Imperial)3.937
Recovered Length1.02
ApplicationSealing the end of the cable
UV ResistantYes
MaterialSemi-rigid, Cross-linked Polyolefin
Cable End Recovered1.77
Product ColorBlack
RoHS EU CommentsRoHS 2011/65/EU compliant without exemption
Operating Temperature Range (Celsius)-55 °C to +110 °C
Cable End Expanded UOMin
Recovered Height1.77
Inner Diameter Before Shrink (Metric)100.0
With Inner GlueYes
Inner Diameter After Shrink (Imperial)1.772
