3M Products & Supplies

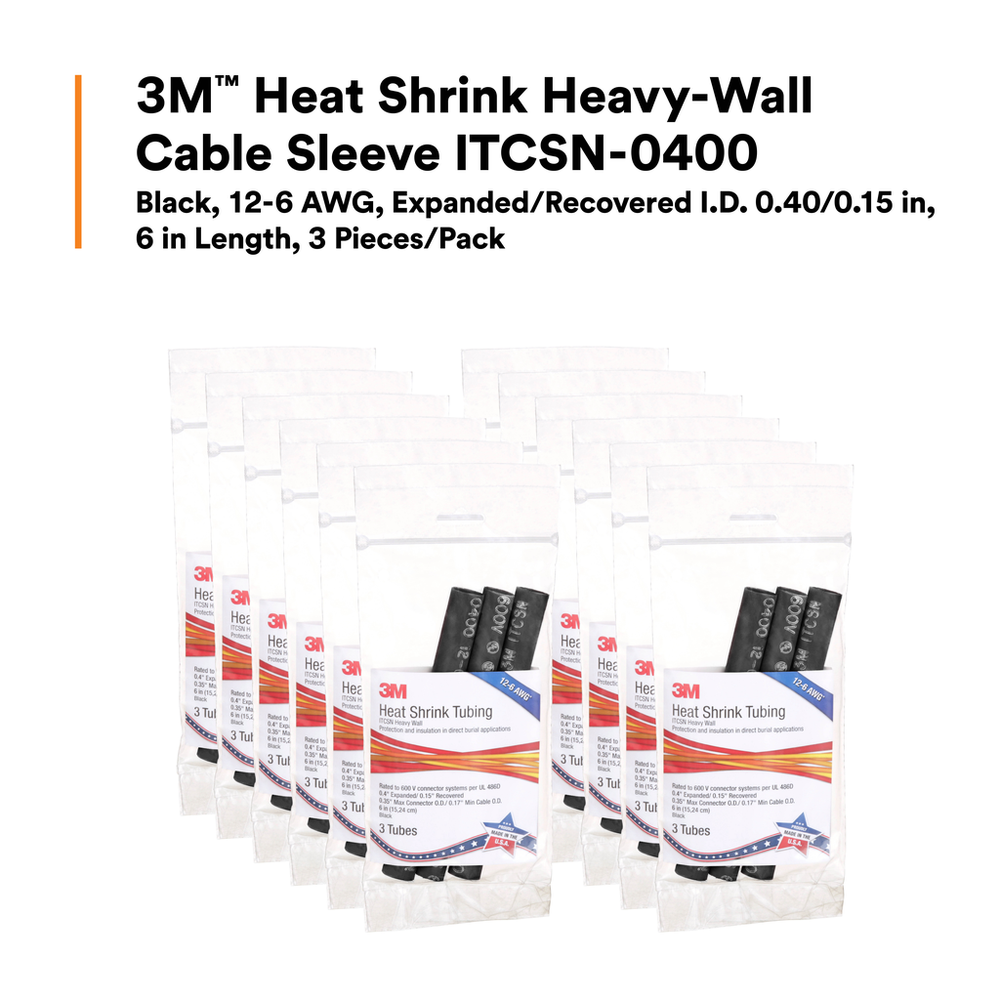

3M™ Heat Shrink Heavy-Wall Cable Sleeve ITCSN-0400, Black, 3 pieces/pack, 6 in Length pieces, 12 packs/case - 7010398984

Sold As: 12-Pack
SKU: 7010398984
MPN: 7010398984
For an accurate lead time please contact us
UPC: 00051128600757
3M ID: 80611603376
5 Digit UPC: 60075
$239.29 ($19.94 / Count)
Hurry up! Current stock:

Product Description

3M™ Heat Shrink Cable Sleeve ITCSN is a heavy wall sleeve that provides abrasion, corrosion and chemical resistance. This sleeve has a 3:1 shrink ratio to offer electrical insulation for 1 kV rated applications. It features a cross linked polyolefin construction that provides moisture seal protection.

Features

  • IDEAL FOR A VARIETY OF APPLICATIONS: Used for insulating secondary splices; direct-buried, submersible, or dig in repairs; and physical protection of high voltage, air-insulated connectors or lugs
  • CERTIFICATIONS: UL Listed, CSA Certified, and RoHS 2011/65/EU Compliant
  • WIDE OPERATING TEMPERATURE RANGE: Withstands temperatures between 67–230 °F (55–110 °C)
  • HIGHLY RESISTANT: Delivers mechanical and environmental protection against abrasion, corrosion, and chemicals
  • VOLTAGE: UL 486D, Voltage Rating 600 V; Applies to: ITCSN 0400, 0800, 1100, 1500, 2000; CSA Certified ITCSN 0400, 0800, 1100, 1500, 2000, 3000
  • DURABLE CONSTRUCTION: Adhesive-lined, split resistant, fast shrinking, and made from cross-linked polyolefin; non-adhesive options are also available
Spec Sheet



Downloads

Specifications

Shelf Life3600
Country of OriginUnited States
Elongation UOM%
Maximum Operating Temperature (Fahrenheit)230.0
MaterialPolyolefin
Inner Diameter Before Shrink (Metric)10.2
Tubing TypeHeavy Wall
Shrink Ratio3:1
Inner Diameter Before Shrink (Metric) UOMmm
Overall Length (Imperial) UOMin
Splice TypeHeat Shrink
Splice ConfigurationHeat Shrink Heavy-Wall Cable Sleeve (ITCSN)
Maximum Operating Temperature (Fahrenheit) UOMDegree
Inner Diameter After Shrink (Imperial) UOMin
Inner Diameter Before Shrink (Imperial) UOMin
Inner Diameter After Shrink (Metric) UOMmm
Inner Diameter Before Shrink (Imperial)0.4
Non-CorrosiveYes
Product ColorBlack
Direct BuryYes
Specifications MetUL 486D*
Maximum Operating Temperature (Celsius)100.0
RoHS EU CommentsRoHS 2011/65/EU compliant without exemption
Overall Length (Metric)152.4
Inner Diameter After Shrink (Metric)3.8
Maximum Operating Temperature (Celsius) UomDegree
Minimum Expanded Tubing I. D.0.4
Minimum Expanded Tubing I. D. UOMin
Adhesive LinedYes
Inner Diameter After Shrink (Imperial)0.15
Flame RetardantNo
Overall Length (Imperial)6.0
Overall Length (Metric) UOMmm
Units per Case3.0
