3M Products & Supplies

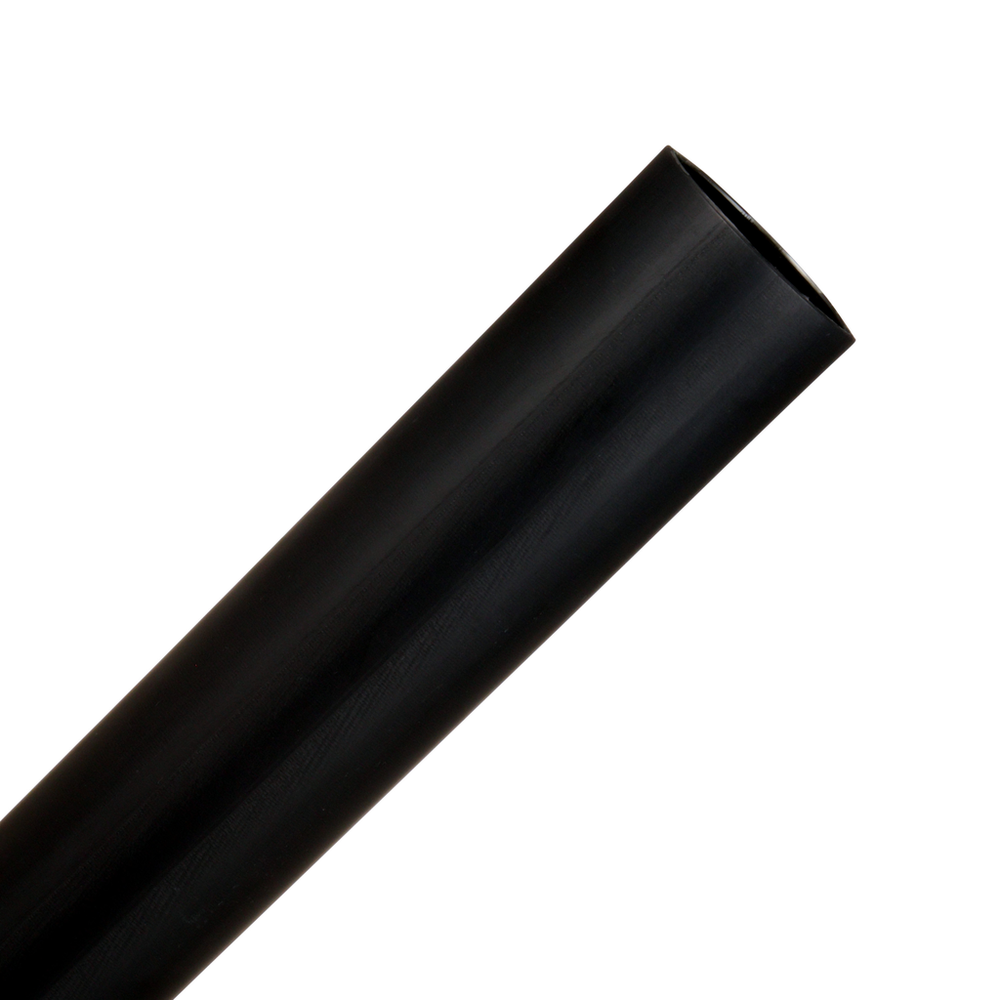

3M™ Heat Shrink Heavy-Wall Cable Sleeve ITCSN-2000, Black, 12 in Length pieces, 12 packs/case, 3 pieces/pack - 7010398987

Sold As: 12-Pack
SKU: 7010398987
MPN: 7010398987
For an accurate lead time please contact us
UPC: 00051128600825
3M ID: 80611603442
5 Digit UPC: 60082
$960.41 ($80.03 / Count)
Hurry up! Current stock:

Product Description

3M™ Heat Shrink Cable Sleeve ITCSN is a heavy wall sleeve that provides abrasion, corrosion and chemical resistance. This sleeve has a 3:1 shrink ratio to offer electrical insulation for 1 kV rated applications. It features a cross linked polyolefin construction that provides moisture seal protection.

Features

  • DURABLE CONSTRUCTION: Adhesive-lined, split resistant, fast shrinking, and made from cross-linked polyolefin; non-adhesive options are also available
  • IDEAL FOR A VARIETY OF APPLICATIONS: Used for insulating secondary splices; direct-buried, submersible, or dig in repairs; and physical protection of high voltage, air-insulated connectors or lugs
  • VOLTAGE: UL 486D, Voltage Rating 600 V; Applies to: ITCSN 0400, 0800, 1100, 1500, 2000; CSA Certified ITCSN 0400, 0800, 1100, 1500, 2000, 3000
  • HIGHLY RESISTANT: Delivers mechanical and environmental protection against abrasion, corrosion, and chemicals
  • CERTIFICATIONS: UL Listed, CSA Certified, and RoHS 2011/65/EU Compliant
  • WIDE OPERATING TEMPERATURE RANGE: Withstands temperatures between 67–230 °F (55–110 °C)
Spec Sheet



Downloads

Specifications

Shelf Life3600
Country of OriginUnited States
Product ColorBlack
Adhesive LinedYes
MaterialPolyolefin
Overall Length (Imperial) UOMin
Units per Case3.0
Splice TypeHeat Shrink
Direct BuryYes
Maximum Operating Temperature (Fahrenheit) UOMDegree
Inner Diameter Before Shrink (Imperial)2.0
Overall Length (Imperial)12.0
Maximum Operating Temperature (Celsius)110.0
Maximum Operating Temperature (Fahrenheit)230.0
Elongation UOM%
Overall Length (Metric) UOMmm
RoHS EU CommentsRoHS 2011/65/EU compliant without exemption
Inner Diameter After Shrink (Metric)16.5
Inner Diameter After Shrink (Imperial)0.65
Overall Length (Metric)304.8
Tubing TypeHeavy Wall
Inner Diameter Before Shrink (Imperial) UOMin
Non-CorrosiveYes
Inner Diameter After Shrink (Metric) UOMmm
Specifications MetUL 486D*
Minimum Expanded Tubing I. D. UOMin
Inner Diameter Before Shrink (Metric)50.8
Maximum Operating Temperature (Celsius) UomDegree
Splice ConfigurationHeat Shrink Heavy-Wall Cable Sleeve (ITCSN)
Shrink Ratio3:1
Inner Diameter After Shrink (Imperial) UOMin
Minimum Expanded Tubing I. D.2.0
Inner Diameter Before Shrink (Metric) UOMmm
Flame RetardantNo
