3M Products & Supplies

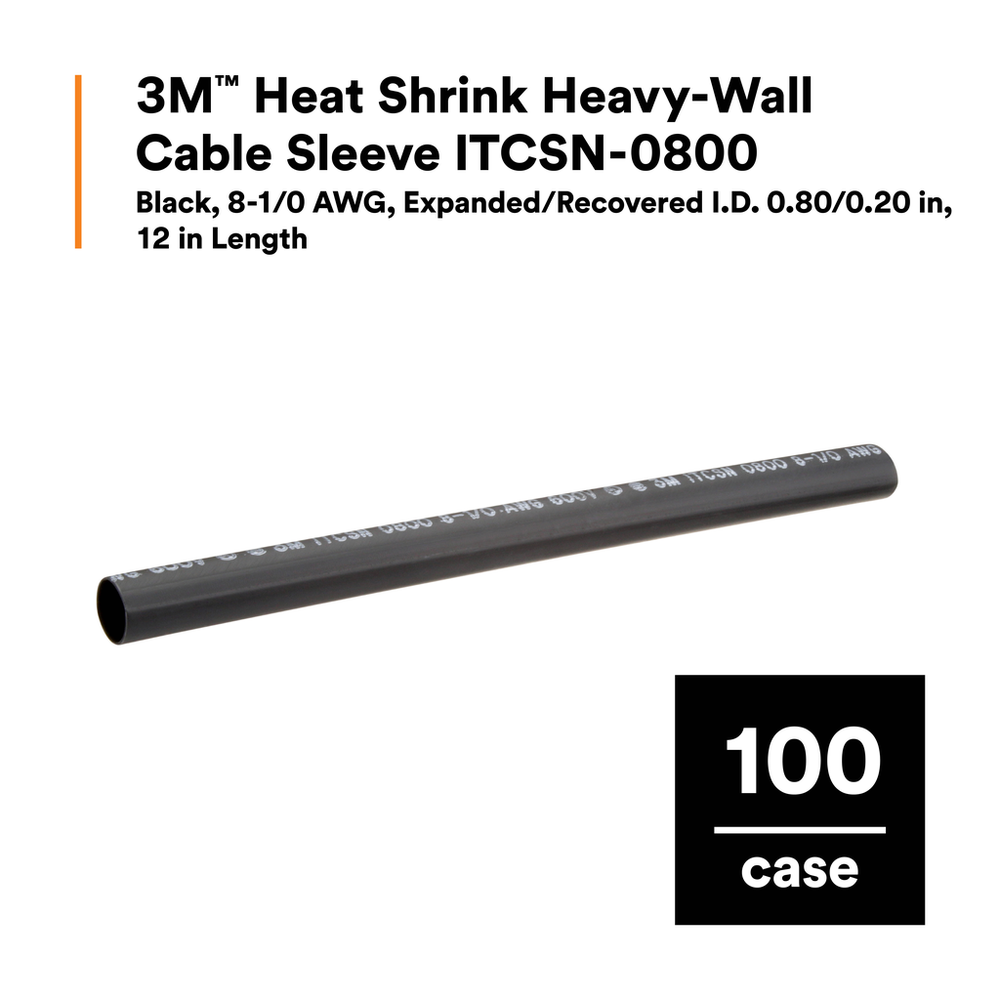

3M™ Heat Shrink Heavy-Wall Cable Sleeve ITCSN-0800, 8-1/0 AWG, Expanded/Recovered I.D. 0.80/0.20 in, 12 in Length, 100/case - 7000132155

Sold As: 100-Pack
SKU: 7000132155
MPN: 7000132155
Stock Item: Stock items typically ship within 2-3 business days
UPC: 00054007089674
3M ID: 80008007215
5 Digit UPC: 8967
$1,275.75 ($12.76 / Count)
Hurry up! Current stock:

Product Description

3M™ Heat Shrink Cable Sleeve ITCSN is a heavy wall sleeve that provides abrasion, corrosion and chemical resistance. This sleeve has a 3:1 shrink ratio to offer electrical insulation for 1 kV rated applications. It features a cross linked polyolefin construction that provides moisture seal protection.

Features

  • HIGHLY RESISTANT: Delivers mechanical and environmental protection against abrasion, corrosion, and chemicals
  • IDEAL FOR A VARIETY OF APPLICATIONS: Used for insulating secondary splices; direct-buried, submersible, or dig in repairs; and physical protection of high voltage, air-insulated connectors or lugs
  • WIDE OPERATING TEMPERATURE RANGE: Withstands temperatures between 67–230 °F (55–110 °C)
  • VOLTAGE: UL 486D, Voltage Rating 600 V; Applies to: ITCSN 0400, 0800, 1100, 1500, 2000; CSA Certified ITCSN 0400, 0800, 1100, 1500, 2000, 3000
  • DURABLE CONSTRUCTION: Adhesive-lined, split resistant, fast shrinking, and made from cross-linked polyolefin; non-adhesive options are also available
  • CERTIFICATIONS: UL Listed, CSA Certified, and RoHS 2011/65/EU Compliant
Spec Sheet



Downloads

Specifications

Shelf Life3600
Country of OriginUnited States
Minimum Expanded Tubing I. D.0.8
Maximum Operating Temperature (Celsius) UomDegree
Dielectric Strength (V/mil)500 V/mil
Inner Diameter After Shrink (Metric) UOMcm²
Units per Case100.0
Maximum Operating Temperature (Fahrenheit)230.0
Elongation UOM%
Splice ConfigurationHeat Shrink Heavy-Wall Cable Sleeve (ITCSN)
Inner Diameter After Shrink (Imperial)0.2
Shrink Ratio4:1
Splice TypeHeat Shrink
Overall Length (Metric) UOMmm
RoHS EU CommentsRoHS 2011/65/EU compliant without exemption
Maximum Operating Temperature (Fahrenheit) UOMDegree
Flame RetardantNo
Tubing TypeHeavy Wall
Product TypeSplice
Inner Diameter Before Shrink (Metric) UOMcm²
MaterialAdhesive-lined Polyolefin
Inner Diameter After Shrink (Metric)0.508
Maximum Operating Temperature (Celsius)100.0
Specifications MetUL 486D*
Overall Length (Metric)305.0
Chemical ResistantYes
Inner Diameter Before Shrink (Imperial) UOMin
Product ColorBlack
Overall Length (Imperial)12.0
Inner Diameter After Shrink (Imperial) UOMin
Inner Diameter Before Shrink (Metric)2.032
Overall Length (Imperial) UOMin
Non-CorrosiveYes
Direct BuryYes
Minimum Expanded Tubing I. D. UOMin
Inner Diameter Before Shrink (Imperial)0.8
Adhesive LinedYes
