3M Products & Supplies

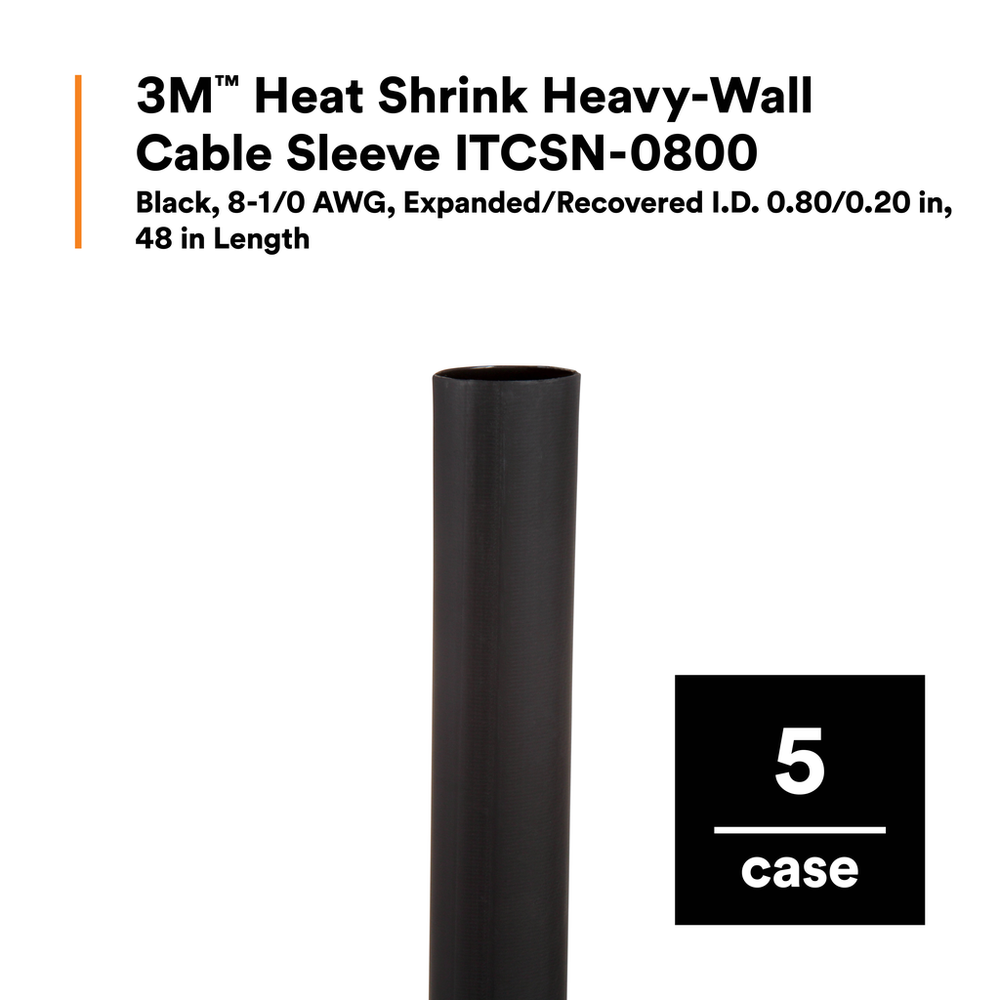

3M™ Heat Shrink Heavy-Wall Cable Sleeve ITCSN-0800, 8-1/0 AWG, Expanded/Recovered I.D. 0.80/0.20 in, 48 in Length, 5/Case - 7000132379

Sold As: 5-Pack
SKU: 7000132379
MPN: 7000132379
Stock Item: Stock items typically ship within 2-3 business days
UPC: 00054007089032
3M ID: 80610229629
5 Digit UPC: 8903
$239.99 ($48.00 / Count)
Hurry up! Current stock:

Product Description

3M™ Heat Shrink Cable Sleeve ITCSN is a heavy wall sleeve that provides abrasion, corrosion and chemical resistance. This sleeve has a 3:1 shrink ratio to offer electrical insulation for 1 kV rated applications. It features a cross linked polyolefin construction that provides moisture seal protection.

Features

  • IDEAL FOR A VARIETY OF APPLICATIONS: Used for insulating secondary splices; direct-buried, submersible, or dig in repairs; and physical protection of high voltage, air-insulated connectors or lugs
  • WIDE OPERATING TEMPERATURE RANGE: Withstands temperatures between 67–230 °F (55–110 °C)
  • HIGHLY RESISTANT: Delivers mechanical and environmental protection against abrasion, corrosion, and chemicals
  • CERTIFICATIONS: UL Listed, CSA Certified, and RoHS 2011/65/EU Compliant
  • DURABLE CONSTRUCTION: Adhesive-lined, split resistant, fast shrinking, and made from cross-linked polyolefin; non-adhesive options are also available
  • VOLTAGE: UL 486D, Voltage Rating 600 V; Applies to: ITCSN 0400, 0800, 1100, 1500, 2000; CSA Certified ITCSN 0400, 0800, 1100, 1500, 2000, 3000
Spec Sheet



Downloads

Specifications

Shelf Life3600
Country of OriginUnited States
Inner Diameter After Shrink (Imperial)0.2
Overall Length (Imperial) UOMin
Maximum Conductor Size (Metric)50 mm²
Maximum Operating Temperature (Fahrenheit)230.0
Product ColorBlack
UL File NumberE-102356
Flame RetardantNo
Tubing TypeHeavy Wall
Inner Diameter After Shrink (Metric) UOMcm²
Inner Diameter After Shrink (Imperial) UOMin
Direct BuryYes
Specifications MetUL 486D*
Maximum Operating Temperature (Fahrenheit) UOMDegree
Minimum Expanded Tubing I. D.0.8
Splice TypeHeat Shrink
Minimum Conductor Size (Imperial)8 AWG
Product FormSleeve-roll
Splice ConfigurationHeat Shrink Heavy-Wall Cable Sleeve (ITCSN)
Maximum Operating Temperature (Celsius) UomDegree
Inner Diameter Before Shrink (Metric) UOMcm²
Overall Length (Metric)1219.0
Minimum Expanded Tubing I. D. UOMin
MaterialPolyolefin
Overall Length (Metric) UOMmm
Maximum Operating Temperature (Celsius)110.0
Adhesive LinedNo
Elongation UOM%
RoHS EU CommentsRoHS 2011/65/EU compliant without exemption
Inner Diameter Before Shrink (Imperial)0.8
Operating Temperature (Celsius)-55 °C to 110 °C
Inner Diameter After Shrink (Metric)0.508
Inner Diameter Before Shrink (Imperial) UOMin
Inner Diameter Before Shrink (Metric)2.032
Product TypeSleeve
Maximum Conductor Size (Imperial)1/0 AWG
Minimum Conductor Size (Metric)10 mm²
Shrink Ratio4:1
Overall Length (Imperial)48.0
Units per Case5.0
Non-CorrosiveYes
Mil SpecAMS-DTL-23053/15,Class 1
Dielectric Strength (V/mil)500 V/mil
