3M Products & Supplies

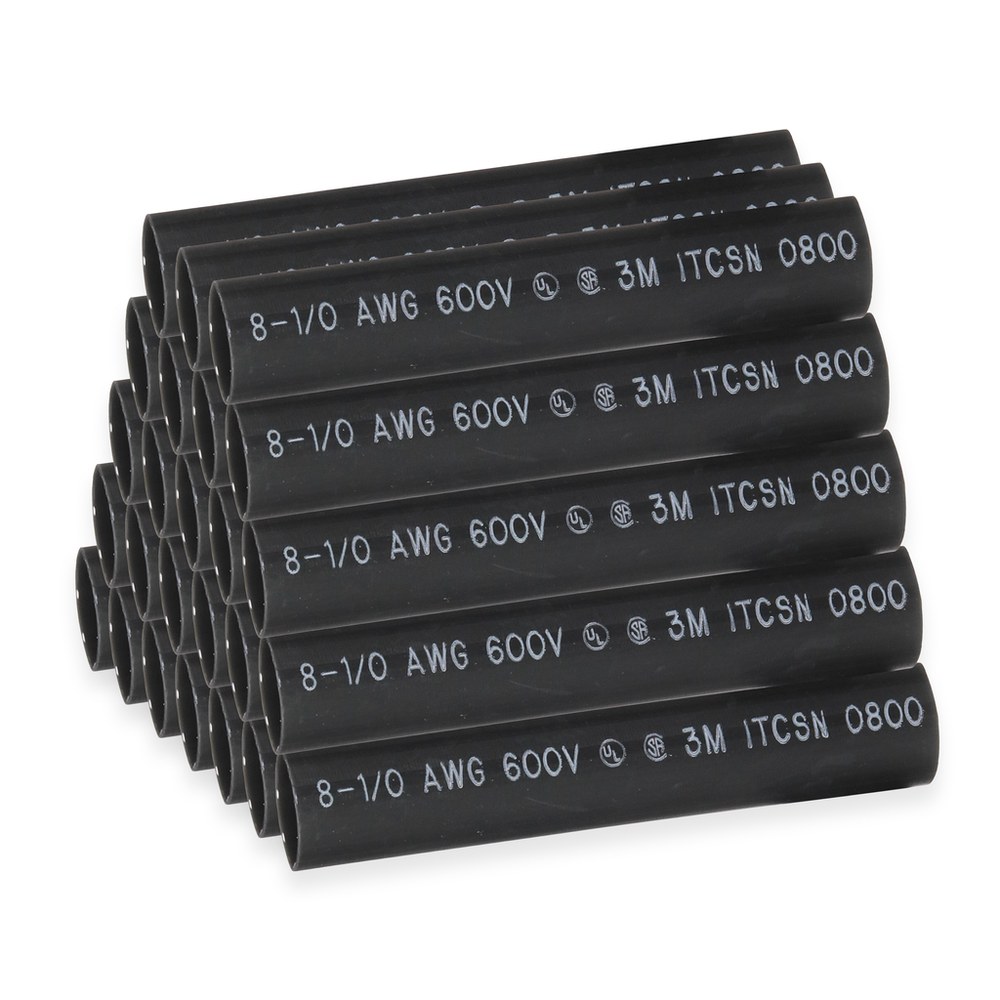

3M™ Heat Shrink Heavy-Wall Cable Sleeve ITCSN-0800, 8-1/0 AWG, Expanded/Recovered I.D. 0.80/0.20 in, 9 in Length, boxed, 25/Case - 7000132370

Sold As: 25-Pack
SKU: 7000132370
MPN: 7000132370
Stock Item: Stock items typically ship within 2-3 business days
UPC: 00054007088905
3M ID: 80610229496
5 Digit UPC: 8890
$274.40 ($10.98 / Count)
Hurry up! Current stock:

Product Description

3M™ Heat Shrink Cable Sleeve ITCSN is a heavy wall sleeve that provides abrasion, corrosion and chemical resistance. This sleeve has a 3:1 shrink ratio to offer electrical insulation for 1 kV rated applications. It features a cross linked polyolefin construction that provides moisture seal protection.

Features

  • VOLTAGE: UL 486D, Voltage Rating 600 V; Applies to: ITCSN 0400, 0800, 1100, 1500, 2000; CSA Certified ITCSN 0400, 0800, 1100, 1500, 2000, 3000
  • DURABLE CONSTRUCTION: Adhesive-lined, split resistant, fast shrinking, and made from cross-linked polyolefin; non-adhesive options are also available
  • IDEAL FOR A VARIETY OF APPLICATIONS: Used for insulating secondary splices; direct-buried, submersible, or dig in repairs; and physical protection of high voltage, air-insulated connectors or lugs
  • WIDE OPERATING TEMPERATURE RANGE: Withstands temperatures between 67–230 °F (55–110 °C)
  • HIGHLY RESISTANT: Delivers mechanical and environmental protection against abrasion, corrosion, and chemicals
  • CERTIFICATIONS: UL Listed, CSA Certified, and RoHS 2011/65/EU Compliant
Spec Sheet



Downloads

Specifications

Shelf Life3600
Country of OriginUnited States
Overall Length (Imperial) UOMin
Minimum Expanded Tubing I. D. UOMin
Overall Length (Imperial)9.0
Overall Length (Metric)229.0
Inner Diameter Before Shrink (Imperial) UOMin
Adhesive LinedYes
Inner Diameter After Shrink (Imperial) UOMin
Product TypeSplice
Inner Diameter Before Shrink (Metric) UOMcm²
Tubing TypeHeavy Wall
Units per Case25.0
Product ColorBlack
Dielectric Strength (V/mil)500 V/mil
Overall Length (Metric) UOMmm
Maximum Operating Temperature (Celsius)100.0
Elongation UOM%
Non-CorrosiveYes
MaterialAdhesive-lined Polyolefin
Inner Diameter After Shrink (Metric) UOMcm²
Splice TypeHeat Shrink
Chemical ResistantYes
Splice ConfigurationHeat Shrink Heavy-Wall Cable Sleeve (ITCSN)
Maximum Operating Temperature (Fahrenheit) UOMDegree
Minimum Expanded Tubing I. D.0.8
Direct BuryYes
Inner Diameter After Shrink (Metric)0.508
Maximum Operating Temperature (Celsius) UomDegree
RoHS EU CommentsRoHS 2011/65/EU compliant without exemption
Inner Diameter After Shrink (Imperial)0.2
Maximum Operating Temperature (Fahrenheit)230.0
Inner Diameter Before Shrink (Metric)2.032
Flame RetardantNo
Inner Diameter Before Shrink (Imperial)0.8
Specifications MetUL 486D*
Shrink Ratio4:1
