3M Products & Supplies

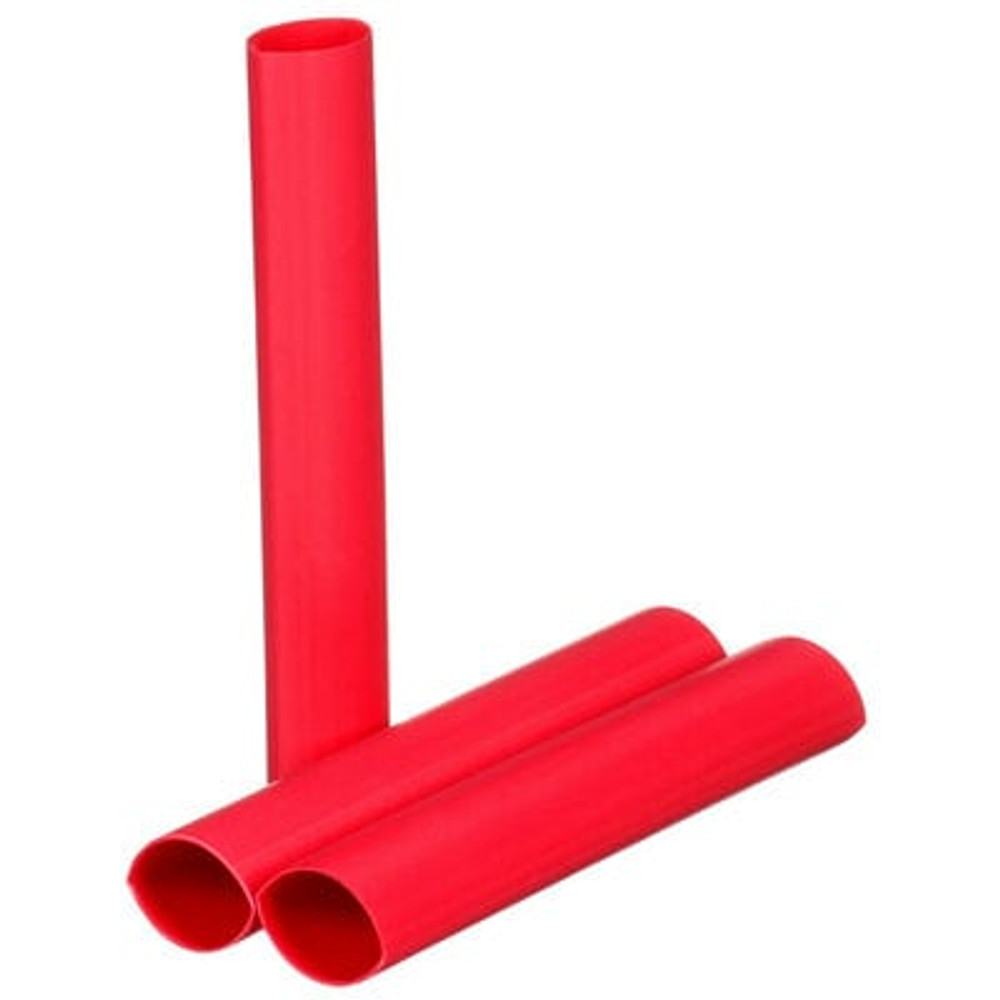

3M™ Heat Shrink Heavy-Wall Cable Sleeve ITCSN-0800, Red, 6 in Length pieces, 3 pieces/pack, 12 packs/case - 7010350257

Sold As: 12-Pack
SKU: 7010350257
MPN: 7010350257
Stock Item: Stock items typically ship within 2-3 business days
UPC: 00051128600788
3M ID: 80611603400
5 Digit UPC: 60078
$275.78 ($22.98 / Count)
Hurry up! Current stock:

Product Description

3M™ Heat Shrink Cable Sleeve ITCSN is a heavy wall sleeve that provides abrasion, corrosion and chemical resistance. This sleeve has a 3:1 shrink ratio to offer electrical insulation for 1 kV rated applications. It features a cross linked polyolefin construction that provides moisture seal protection.

Features

  • HIGHLY RESISTANT: Delivers mechanical and environmental protection against abrasion, corrosion, and chemicals
  • VOLTAGE: UL 486D, Voltage Rating 600 V; Applies to: ITCSN 0400, 0800, 1100, 1500, 2000; CSA Certified ITCSN 0400, 0800, 1100, 1500, 2000, 3000
  • DURABLE CONSTRUCTION: Adhesive-lined, split resistant, fast shrinking, and made from cross-linked polyolefin; non-adhesive options are also available
  • WIDE OPERATING TEMPERATURE RANGE: Withstands temperatures between 67–230 °F (55–110 °C)
  • CERTIFICATIONS: UL Listed, CSA Certified, and RoHS 2011/65/EU Compliant
  • IDEAL FOR A VARIETY OF APPLICATIONS: Used for insulating secondary splices; direct-buried, submersible, or dig in repairs; and physical protection of high voltage, air-insulated connectors or lugs
Spec Sheet



Downloads

Specifications

Shelf Life3600
Country of OriginUnited States
Overall Length (Metric)152.4
Splice ConfigurationHeat Shrink Heavy-Wall Cable Sleeve (ITCSN)
Inner Diameter Before Shrink (Imperial) UOMin
Maximum Operating Temperature (Celsius) UomDegree
MaterialPolyolefin
Minimum Expanded Tubing I. D.0.8
Inner Diameter After Shrink (Imperial)0.2
Splice TypeHeat Shrink
Minimum Expanded Tubing I. D. UOMin
Direct BuryNo
Shrink Ratio3:1
Inner Diameter After Shrink (Metric)5.1
Maximum Operating Temperature (Fahrenheit) UOMDegree
Flame RetardantNo
Overall Length (Metric) UOMmm
Overall Length (Imperial)6.0
RoHS EU CommentsRoHS 2011/65/EU compliant without exemption
Inner Diameter Before Shrink (Imperial)0.8
Non-CorrosiveYes
Inner Diameter After Shrink (Imperial) UOMin
Maximum Operating Temperature (Celsius)110.0
Units per Case3.0
Inner Diameter After Shrink (Metric) UOMmm
Inner Diameter Before Shrink (Metric) UOMmm
Maximum Operating Temperature (Fahrenheit)230.0
Inner Diameter Before Shrink (Metric)20.3
Tubing TypeHeavy Wall
Overall Length (Imperial) UOMin
Adhesive LinedYes
Elongation UOM%
Product ColorRed
