3M Products & Supplies

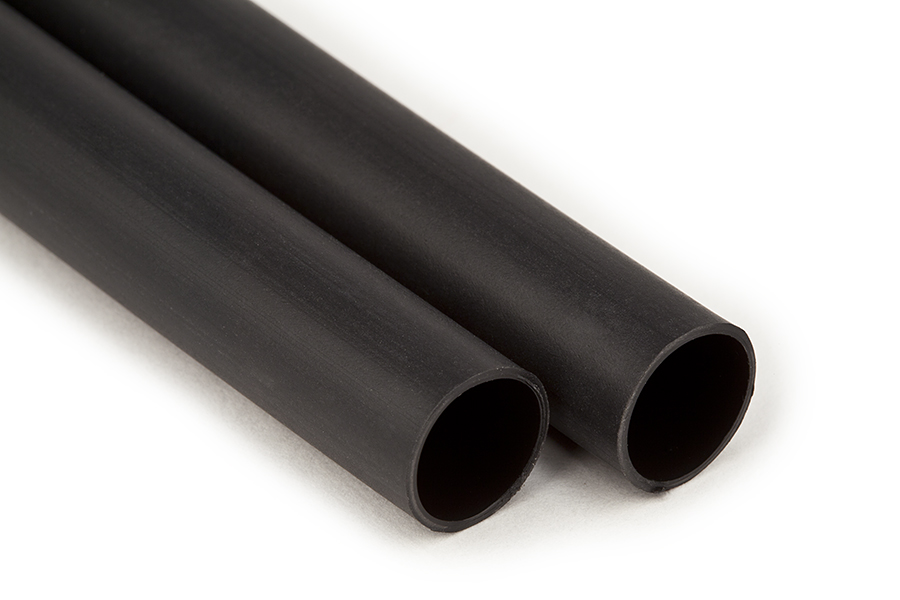

3M™ Heat Shrink Multiple-Wall Polyolefin Tubing EPS400-.300-48"-Black-12 Pcs, 48 in length sticks, 12 pieces/case - 7000148859

Sold As: 12-Pack
SKU: 7000148859
MPN: 7000148859
Stock Item: Stock items typically ship within 2-3 business days
UPC: 00051128597354
3M ID: 80611473960
5 Digit UPC: 59735
$294.11 ($24.51 / Count)
Hurry up! Current stock:

Product Description

3M™ Heat Shrink Tubing EPS-400 is a dual wall tubing provides the advantage of integral, adhesive lined construction. This flame retardant tubing with a 4:1 shrink ratio offers insulation for 600V rated applications. The semi rigid polyolefin construction has an internal layer of thermoplastic adhesive which offers moisture seal protection in automotive and marine applications.

Features

  • Flame-retardant tubing is rated for 600V applications
  • Dual-wall construction provides abrasion resistance and moisture-seal protection
  • Made of semi-rigid polyolefin
  • Withstands temperatures of -67 to 230 degrees F (-55 to 110 degrees C)
  • Offers the advantage of integral, adhesive-lined construction
  • Offers protection for sealing voids in multiple wire bundles for automotive and marine applications
Spec Sheet



Downloads

Specifications

Shelf Life3600
Country of OriginUnited States
Inner Diameter Before Shrink (Metric)7.62
Elongation UOM%
Inner Diameter After Shrink (Metric) UOMmm
Maximum Operating Temperature (Celsius) UomDegree
Non-CorrosiveYes
Operating Temperature (Fahrenheit)-67 °F to 230 °F
Overall Length (Imperial) UOMin
Inner Diameter After Shrink (Imperial)0.06
Maximum Operating Temperature (Fahrenheit)230.0
Heat Shrink TypeAdhesive-Lined Polyolefin Heat Shrink Tubing
Inner Diameter Before Shrink (Metric) UOMmm
Overall Length (Imperial)48.0
Tubing TypeDual Wall (Adhesive Lined)
Minimum Expanded Tubing I. D.0.3
Flame RetardantYes
UL File NumberE-157227
RoHS EU CommentsRoHS 2011/65/EU compliant without exemption
Operating Temperature Range (Celsius)-55 °C to 110 °C
Maximum Operating Temperature (Celsius)110.0
Units per Case12.0
Operating Temperature (Celsius)-55 °C to 110 °C
Inner Diameter Before Shrink (Imperial)0.3
Product ColorBlack
Maximum Operating Temperature (Fahrenheit) UOMDegree
Minimum Expanded Tubing I. D. UOMin
Inner Diameter After Shrink (Imperial) UOMin
MaterialPolyolefin
Inner Diameter After Shrink (Metric)1.52
Inner Diameter Before Shrink (Imperial) UOMin
Shrink Ratio4:1
Operating Temperature Range (Fahrenheit)-67 °F to 230 °F
