3M Products & Supplies

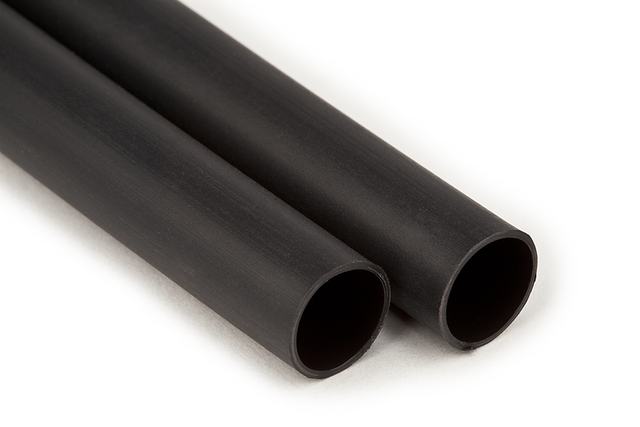

3M™ Heat Shrink Multiple-Wall Polyolefin Tubing EPS400-.300-48"-Black-125 Pcs, 48 in length sticks, 125 pieces/case - 7000133625

Sold As: 125-Pack
SKU: 7000133625
MPN: 7000133625
Stock Item: Stock items typically ship within 2-3 business days
UPC: 10051128599454
3M ID: 80611602063
5 Digit UPC: 59945
$1,182.99 ($9.46 / Count)
Hurry up! Current stock:

Product Description

3M™ Heat Shrink Tubing EPS-400 is a dual wall tubing provides the advantage of integral, adhesive lined construction. This flame retardant tubing with a 4:1 shrink ratio offers insulation for 600V rated applications. The semi rigid polyolefin construction has an internal layer of thermoplastic adhesive which offers moisture seal protection in automotive and marine applications.

Features

  • Dual-wall construction provides abrasion resistance and moisture-seal protection
  • Offers the advantage of integral, adhesive-lined construction
  • Withstands temperatures of -67 to 230 degrees F (-55 to 110 degrees C)
  • Made of semi-rigid polyolefin
  • Flame-retardant tubing is rated for 600V applications
  • Offers protection for sealing voids in multiple wire bundles for automotive and marine applications
Spec Sheet



Downloads

Specifications

Shelf Life3600
Country of OriginUnited States
RoHS EU CommentsRoHS 2011/65/EU compliant without exemption
UL File NumberE-157227
Inner Diameter Before Shrink (Metric)7.62
Operating Temperature Range (Celsius)-55 °C to 110 °C
Inner Diameter Before Shrink (Metric) UOMmm
MaterialPolyolefin
Product ColorBlack
Inner Diameter Before Shrink (Imperial) UOMin
Inner Diameter After Shrink (Imperial) UOMin
Elongation UOM%
Operating Temperature (Fahrenheit)-67 °F to 275 °F
Units per Case24.0
Inner Diameter After Shrink (Metric) UOMmm
Maximum Operating Temperature (Fahrenheit) UOMDegree
Maximum Operating Temperature (Celsius)110.0
Operating Temperature (Celsius)-55 °C to 110 °C
Non-CorrosiveYes
Minimum Expanded Tubing I. D. UOMin
Inner Diameter After Shrink (Imperial)0.06
Shrink Ratio4:1
Operating Temperature Range (Fahrenheit)-67 °F to 230 °F
Inner Diameter Before Shrink (Imperial)0.3
Flame RetardantYes
Maximum Operating Temperature (Fahrenheit)275.0
Overall Length (Imperial) UOMin
Maximum Operating Temperature (Celsius) UomDegree
Overall Length (Imperial)48.0
Minimum Expanded Tubing I. D.0.3
Inner Diameter After Shrink (Metric)1.52
Heat Shrink TypeAdhesive-Lined Polyolefin Heat Shrink Tubing
Tubing TypeDual Wall (Adhesive Lined)
