3M™ Heat Shrink Multiple-Wall, Semi-Rigid Polyolefin Tubing MW-1-48"-Black-5 Pcs, 48 in length sticks, 5 pieces/case - 7100089307

Sold As: 360-Pack
SKU: 7100089307
MPN: 7100089307
Made to Order: For a lead time estimate, please send your request to [email protected]
UPC: 00051128597187
3M ID: 80611473796
5 Digit UPC: 59718
$13,739.78 ($38.17 / Count)
Hurry up! Current stock:

Product Description

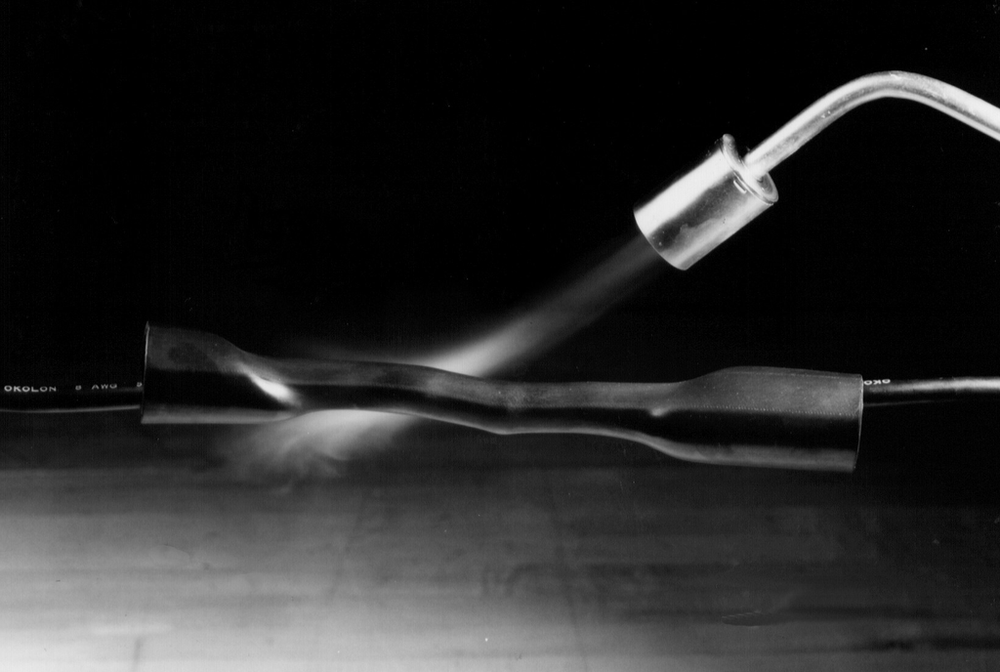

3M™ Heat Shrink Tubing MW is a multiple wall tubing offering the advantage of integral, adhesive lined construction. This tubing has a 2.5:1 shrink ratio and provides insulation for 600V rated applications. Semi rigid polyolefin construction ensures moisture seal protection for automotive and marine applications.

Features

  • Rated for 600V applications
  • Offers a skintight fit and strain-relief sealing of electrical connections, wire splices and components
  • Made of black semi-rigid polyolefin
  • Withstands temperatures of -67 to 230 degrees F (-55 to 110 degrees C)
  • Multiple wall is co-extruded and cross-linked to offer a meltable inner wall
  • Provides the advantage of integral, adhesive-lined construction
Spec Sheet



Downloads

Specifications

Shelf Life3600
Country of OriginUnited States
Minimum Expanded Tubing I. D. UOMin
Inner Diameter Before Shrink (Imperial) UOMin
Operating Temperature (Celsius)-55 °C to 110 °C
Maximum Operating Temperature (Celsius)110.0
Inner Diameter After Shrink (Metric) UOMmm
Maximum Operating Temperature (Fahrenheit) UOMDegree
Overall Length (Imperial)48.0
Inner Diameter Before Shrink (Imperial)1.0
Inner Diameter Before Shrink (Metric) UOMmm
UL File NumberE-157227
Overall Length (Imperial) UOMin
Operating Temperature (Fahrenheit)-67 °F to 230 °F
Inner Diameter Before Shrink (Metric)25.4
Tubing TypeDual Wall (Adhesive Lined)
Shrink Ratio2.5:1
MaterialPolyolefin
Product ColorBlack
Minimum Expanded Tubing I. D.1.0
Maximum Operating Temperature (Celsius) UomDegree
Flame RetardantNo
Inner Diameter After Shrink (Imperial) UOMin
Heat Shrink TypeAdhesive-Lined Polyolefin Heat Shrink Tubing
Non-CorrosiveYes
Maximum Operating Temperature (Fahrenheit)230.0
Inner Diameter After Shrink (Metric)10.2
Units per Case5.0
RoHS EU CommentsRoHS 2011/65/EU compliant without exemption
Inner Diameter After Shrink (Imperial)0.4
