3M™ Heat Shrink Multiple-Wall, Semi-Rigid Polyolefin Tubing MW-1/2-48"-Black-12 Pcs, 48 in length sticks, 12 pieces/case - 7000133573

Sold As: 12-Pack
SKU: 7000133573
MPN: 7000133573
Made to Order: For a lead time estimate, please send your request to [email protected]
UPC: 00051128597163
3M ID: 80611473770
5 Digit UPC: 59716
$216.05 ($18.00 / Count)
Hurry up! Current stock:

Product Description

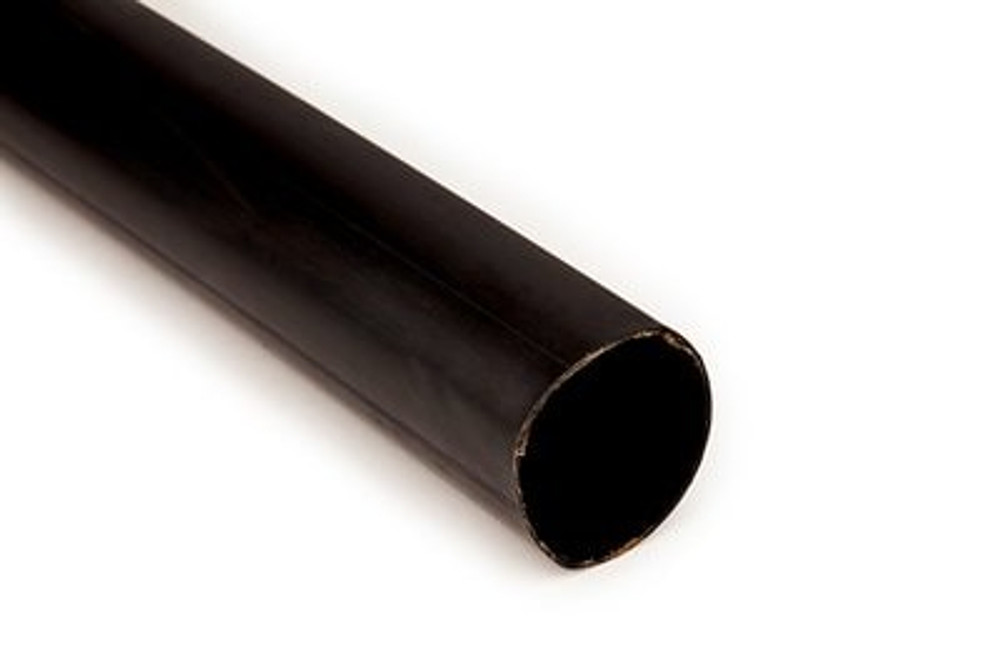

3M™ Heat Shrink Tubing MW is a multiple wall tubing offering the advantage of integral, adhesive lined construction. This tubing has a 2.5:1 shrink ratio and provides insulation for 600V rated applications. Semi rigid polyolefin construction ensures moisture seal protection for automotive and marine applications.

Features

  • Offers a skintight fit and strain-relief sealing of electrical connections, wire splices and components
  • Made of black semi-rigid polyolefin
  • Provides the advantage of integral, adhesive-lined construction
  • Withstands temperatures of -67 to 230 degrees F (-55 to 110 degrees C)
  • Rated for 600V applications
  • Multiple wall is co-extruded and cross-linked to offer a meltable inner wall
Spec Sheet



Downloads

Specifications

Shelf Life3600
Country of OriginUnited States
Inner Diameter After Shrink (Metric)5.0
Minimum Expanded Tubing I. D. UOMin
Operating Temperature (Celsius)-55 °C to 110 °C
Overall Length (Imperial)48.0
Heat Shrink TypeAdhesive-Lined Polyolefin Heat Shrink Tubing
Overall Length (Metric)1219.0
Inner Diameter After Shrink (Imperial)0.195
Overall Length (Imperial) UOMin
Inner Diameter Before Shrink (Imperial) UOMin
Units per Case12.0
Inner Diameter Before Shrink (Imperial)0.5
Tubing TypeDual Wall (Adhesive Lined)
Inner Diameter Before Shrink (Metric)12.7
Minimum Expanded Tubing I. D.0.5
Inner Diameter After Shrink (Metric) UOMmm
Maximum Operating Temperature (Fahrenheit) UOMDegree
Flame RetardantNo
Shrink Ratio2.5:1
Overall Length (Metric) UOMmm
MaterialPolyolefin
RoHS EU CommentsRoHS 2011/65/EU compliant without exemption
Operating Temperature Range (Celsius)-55 °C to 110 °C
UL File NumberE-157227
Inner Diameter After Shrink (Imperial) UOMin
Maximum Operating Temperature (Celsius)110.0
Product ColorBlack
Maximum Operating Temperature (Fahrenheit)230.0
Maximum Operating Temperature (Celsius) UomDegree
Elongation UOM%
Operating Temperature Range (Fahrenheit)-67 °F to 230 °F
Non-CorrosiveYes
Operating Temperature (Fahrenheit)-67 °F to 230 °F
Inner Diameter Before Shrink (Metric) UOMmm
